ZKTeco Atlas Core Access Control Door Panel Kit
Atlas Core Kit is a professional-grade access control package designed for enhanced security and compatibility. It includes upgraded KR503H readers specifically engineered to support 125KHz HID Prox cards, ensuring broader credential support and reliable performance. Ideal for commercial and enterprise environments, it delivers efficient access management with seamless integration and durable operation.
Features:
- Affordable, feature-rich solution
- WiFi connectivity
- RMR ready with AtlasCloud
- Free QR Code credentials
- User-friendly UI
- API/SDK availability
- Supports Fingerprint Biometrics
- Video integrations with Hanwha & Digital Watchdog
Comparison Chart:
| Specification | Atlas260 | Atlas460 |
|---|---|---|
| Number of Doors Controlled | Two Door | Four Door |
| Number of Readers Supported | 4 (Wiegand or OSDP Readers) | 8 (Wiegand or OSDP Readers) |
| Types of Readers Supported | All ZKTeco Wiegand & OSDP readers, and 3rd party readers which output Wiegand or RS485/OSDP | All ZKTeco Wiegand & OSDP readers, and 3rd party readers which output Wiegand or RS485/OSDP |
| Number of Inputs | 5 (2 Exit Buttons, 2 Door Sensors, 1 Aux) | 9 (4 Exit Buttons, 4 Door Sensors, 1 Aux) |
| Number of Outputs | 3 (2 Form C relays for lock and 1 Form C relay for Aux output) | 5 (4 Form C relays for lock and 1 Form C relay for Aux output) |
| User Capacity | 5,000 | 5,000 |
| Events Database Capacity | 10,000 transactions plus unlimited archive downloads | 10,000 transactions plus unlimited archive downloads |
| Weight | 10 lbs (4 kg) | 10 lbs (4 kg) |
| Communication | TCP/IP, Wi-Fi, Wiegand & RS485/OSDP | TCP/IP, Wi-Fi, Wiegand & RS485/OSDP |
| Browsers Supported | Chrome, Firefox, Edge & Safari | Chrome, Firefox, Edge & Safari |
| Enclosure | Powder Coated Aluminum | Powder Coated Aluminum |
| Mounting | Wall Mount | Wall Mount |
| Recommended Power Supply | 12V DC, 2A (PoE) | 12V DC, 2A (PoE) |
| Dimensions (Bundle Only) | 15 in (L) x 3.15 in (W) x 11 in (H) / 380mm (L) x 80mm (W) x 280mm (H) | 15 in (L) x 3.15 in (W) x 11 in (H) / 380mm (L) x 80mm (W) x 280mm (H) |
| Dimensions (Board Only) | 7.75in x 6.73in (197mm x 171mm) | 7.75in x 6.73in (197mm x 171mm) |

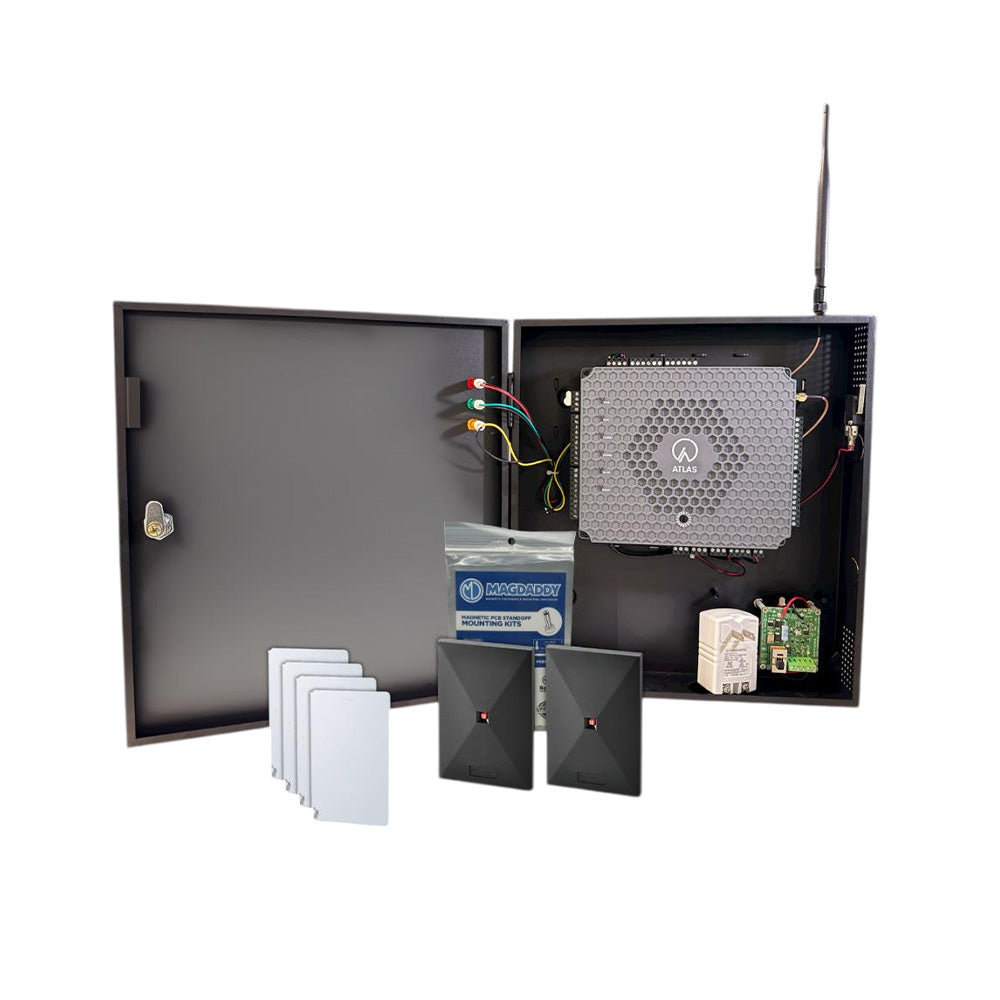

Kit Includes:
- Atlas Panel in a metal cabinet with ATL-PWR-1215 Power supply and battery charger - 1 pc
- KR503H 125KHz HID Prox Cards Thick/Clamshell - 2 pc
- Proximity Key Fobs - 25
