ZENITH EZ7KT110 Z7 PRO Diagnostic Scanning Tool Standard Kit - Refurbished

ZENITH EZ7KT110 Z7 PRO Diagnostic Scanning Tool Standard Kit - Refurbished

$2,785.00 USD
$2,800.00 USD $2,785.00 USD
Sale Sold out

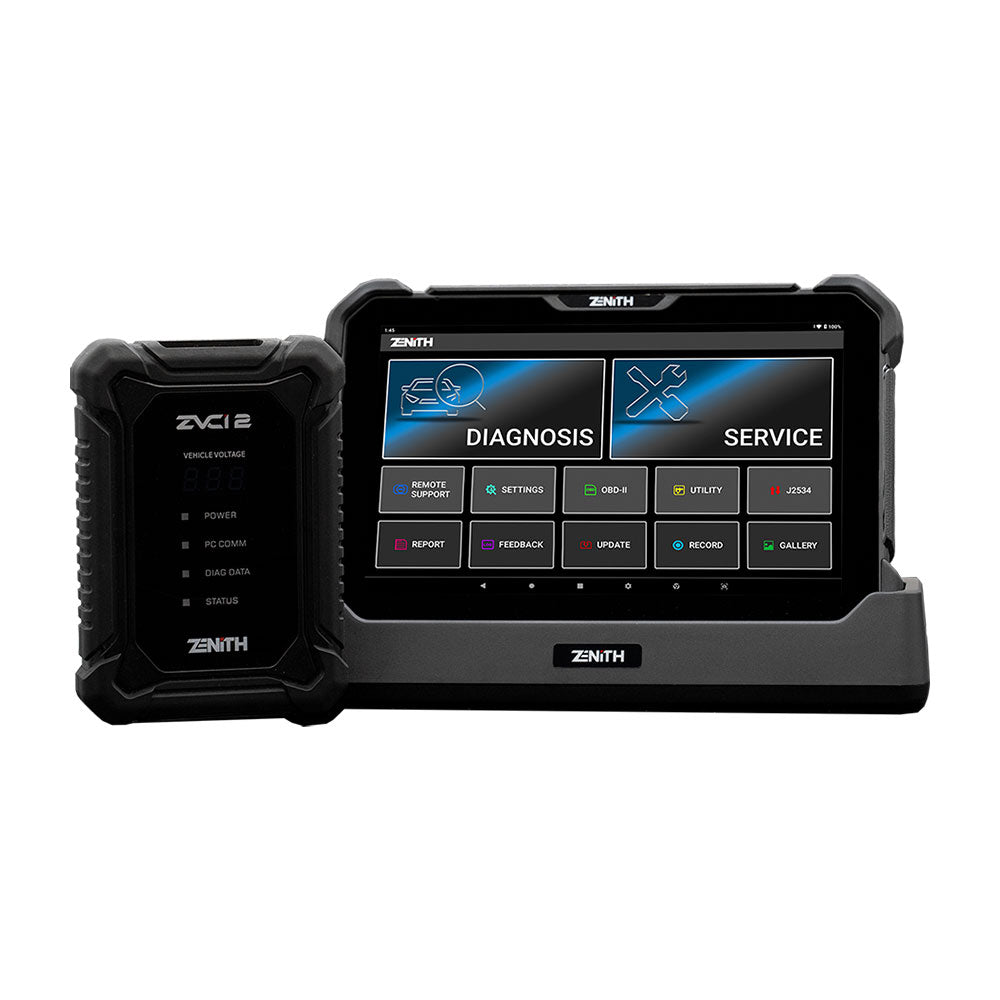

ZENITH EZ7KT110 Z7 PRO Diagnostic Scanning Tool Standard Kit

ZENITH Z7 PRO A True All-In-ONE Scan Tool An innovative wireless scan tool designed to support a wide range of vehicle brands, offering advanced bi-directional diagnostic capabilities for precise and efficient vehicle maintenance.

Feature:
  • Quick access to mostly used service functions without navigat­ing menu system
  • Ultra fast Topology scan for all-system-scan
  • Latest ADAS calibration software included in one package
  • Bi-directional communications with 24 V commercial trucks and buses
  • Remote diagnostic function support available via J2534 technology
  • 'Pass-Thru' device for programming the ECUs for multiple carline
  • Ready for most protocols on the market including CAN FD and DolP
  • Wireless diagnostic interface via latest Bluetooth technology
  • Fast and easy diagnostic report on pre and post scan results
Functions:
  • Common Service functions such as ADAS calibration, Brake Pad Replacement, Engine Oil Reset, Brake Air Bleeding, Battery Reset, Steering Angle Sensor Calibration, DPF regeneration
  • Key programming
  • Electronic parking brake service mode
  • Transmission relearn
  • Module coding and programming
  • Wi-Fi Updates
  • Wireless Printing
  • Pre/Post Scan Reports
  • Replacement battery (sold separately) that is easy to install and will not void the current or future warranty

The Pre/Post scan diagnostic report function provides an intuitively designed diagnostic report that can be created quickly and easily, including workshop and customer details, diagnostic trouble codes, saved image files, camera images, personalized notes, etc.

Specification

Category Specifications
CPU Octa Core Processor 2.2 GHz
Operating System Android 11
System Memory 4G / Internal 64G **
External Memory Micro SD Card Slot Supported (up to 256GB)
LCD 10.1 inch FHD (1920 x 1200)
Input Devices Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
Camera 8 megapixel auto-focus with LED flash
Sound Loud Speaker 1 microphone
Rechargable Battery Li-ion 3.85V, 5800mAh
Operating Voltage Main Unit(DC5V)
Sensors Ambient Light, Gyroscope, Accelerometer
Dimension About 275 x 187 x 36mm(Terminal) About 170 x 124 x 32mm(VCI)
External Port 1 x USB Type C (Special Locking Type Port)
Network RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC
Supported Communication Protocols:
  • CAN-FD, DoIP By-Pass, CAN (High speed, Low speed, Single)
  • ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000
  • SAE-J1708, SAE-J1587
  • J1850(PWM/VPW)
  • Melco Pull-Down
Contents:
  • Zenith Z7 tablet
  • ZVCI2 J2534 Interface
  • OBD2 Main cable (8ft)
  • AC Power Supply and plug adapters (Also chargable thru USB-C)
  • Z7 Charging Cradle
  • Z7 Stylus Pen w/string
  • J2534 USB cable
  • Z5 Rear Hand Strap
  • Screen Protector
  • Z5 Carrying Case
  • 1-year of updates
  • 1-year warranty
