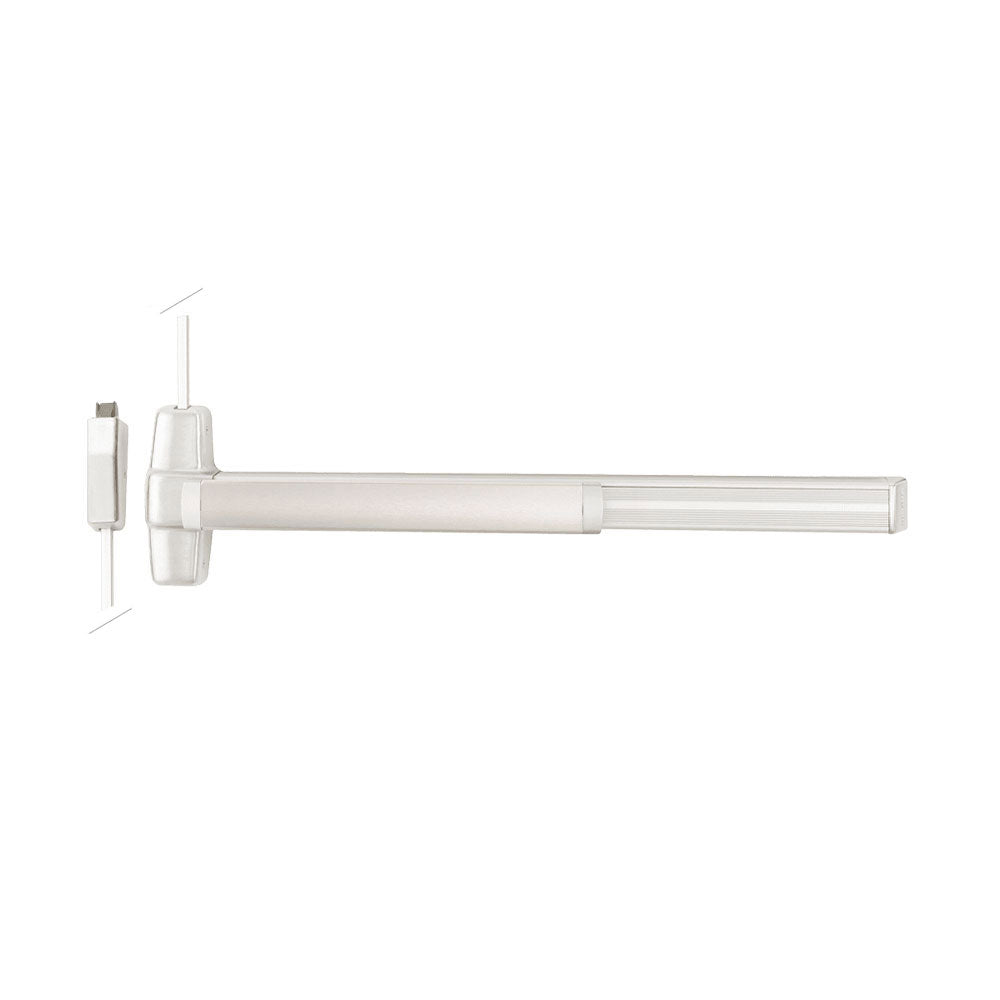

Von Duprin - QEL9927 - Grooved Surface Vertical Rod Exit Bar with Wide Stile Pushpad - Exit Only - Less Bottom Rod - Motorized Latch Retraction - Less Dogging - Grade 1

Von Duprin - QEL9927 - Grooved Surface Vertical Rod Exit Bar with Wide Stile Pushpad - Exit Only - Less Bottom Rod - Motorized Latch Retraction - Less Dogging - Grade 1

The 9927 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1.

Features:

• Device Centerline from Finished Floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral - 3 13/16" (97 mm) Pushbar depressed - 3 1/16" (78 mm)
• Latch Bolt: Deadlocking top and bottom bolt, 5 /8" (16mm) throw
• Door undercut: 1 /4" (7mm) recommended
• Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm
• Vertical Rods: Round 2-piece adjustable rods - Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners and sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
