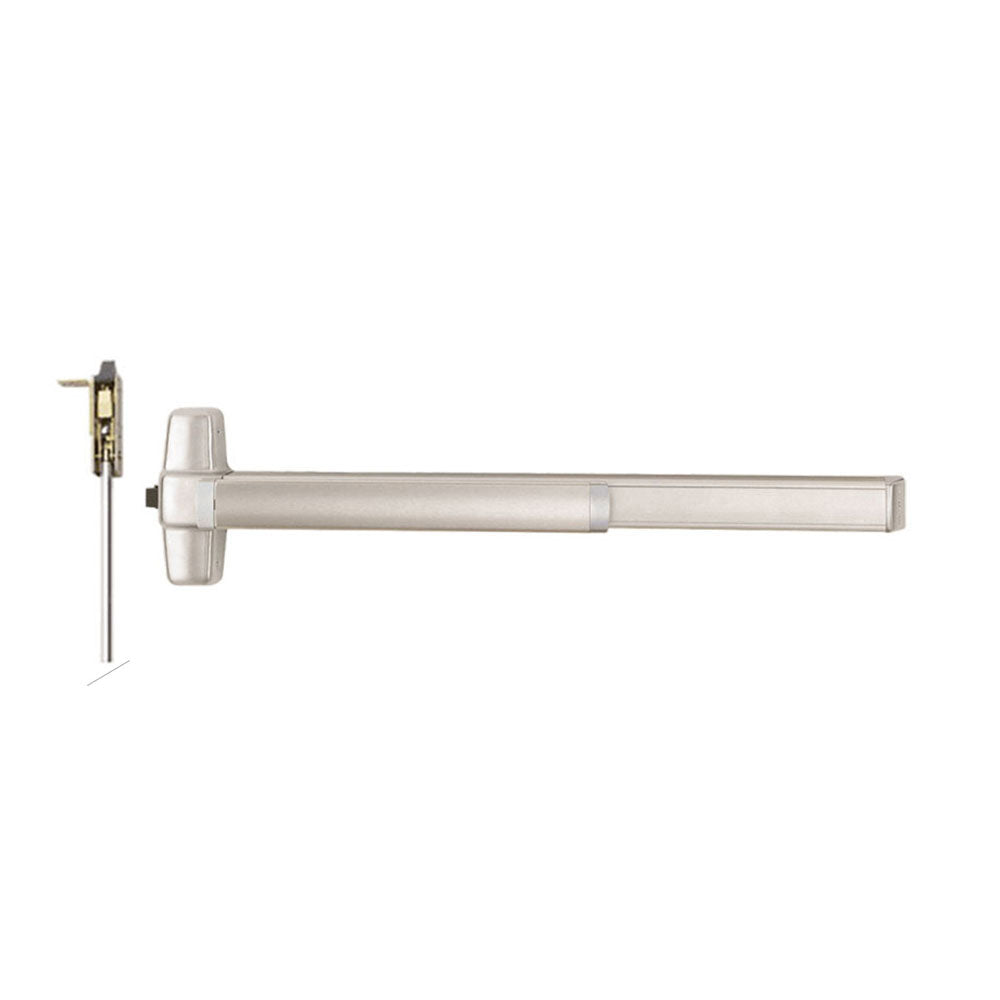

Von Duprin - QEL9847 - Smooth Concealed Vertical Rod Exit Bar with Wide Stile Pushpad - Exit Only - Less Bottom Rod - Motorized Latch Retraction - Less Dogging - Grade 1

Von Duprin - QEL9847 - Smooth Concealed Vertical Rod Exit Bar with Wide Stile Pushpad - Exit Only - Less Bottom Rod - Motorized Latch Retraction - Less Dogging - Grade 1

9847 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1.

Features:

• Device Centerline from Finished Floor: 395 /8" (1006 mm)
• Center Case Dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral - 3 13/16" (97 mm) Pushbar depressed - 3 1/16" (78 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16mm) throw
• Door undercut 1 /4" (7mm) recommended
• Top and Bottom Latch Case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm
• Vertical Rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
• Fasteners and Sex Bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, Optional 425 SNB available.

Product Specifications:

Technical Specifications:
