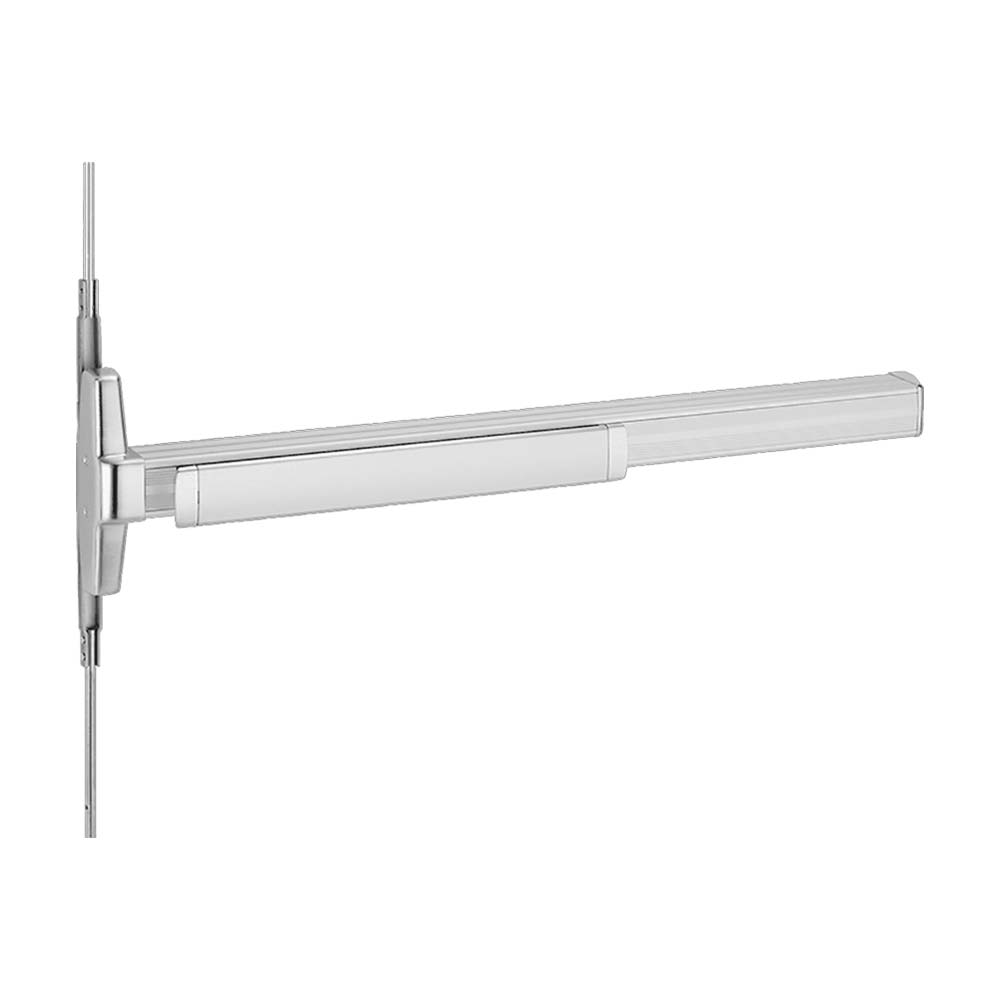

Von Duprin - QEL33A47A - Concealed Vertical Rod Exit Device with Narrow Stile Pushpad - Exit Only - Less Trim - Less Dogging - Electric Latch Retraction - Grade 1

Von Duprin - QEL33A47A - Concealed Vertical Rod Exit Device with Narrow Stile Pushpad - Exit Only - Less Trim - Less Dogging - Electric Latch Retraction - Grade 1

3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 - 2008 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.

Features:

• Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size.
• Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm).
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm).
• Projection: Pushbar neutral - 3 13/16" (97 mm) Pushbar depressed - 3 1/16" (78 mm).
• Latch bolt: Deadlocking anti-friction top and bottom bolt 5 /8" (16mm) throw.
• Door undercut: 1 /4" (7mm).
• Top and bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm).
• Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm).
• Fasteners and sex bolts (SNB): Includes 1 3/4" (44mm) - 2 1/4" (57mm) wood and metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device).
