Von Duprin - CD33A27A - Surface Vertical Rod Exit Device with Narrow Stile Pushpad - Exit Only - Less Trim - Cylinder Dogging - Grade 1

Von Duprin - CD33A27A - Surface Vertical Rod Exit Device with Narrow Stile Pushpad - Exit Only - Less Trim - Cylinder Dogging - Grade 1

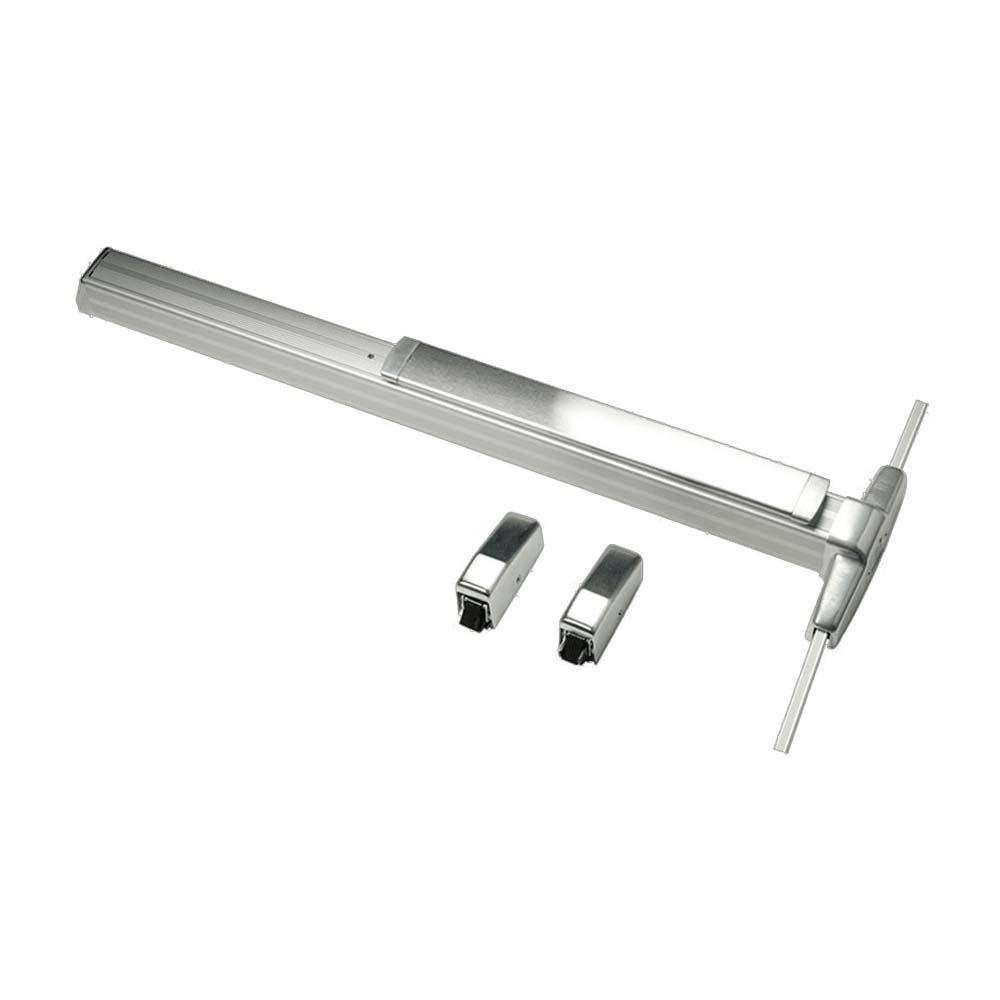

The Von Duprin CD3327AEO is a Grade 1 surface vertical rod exit device designed for narrow stile doors, offering robust security and compliance with ANSI A156.3-2008 standards.

Features:

• Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size.
• Device centerline from finished floor: 39 13/16" (1006mm) Center case dimensions 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm).
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm).
• Projection: Pushbar neutral - 3 13/16" (97 mm) Pushbar depressed - 3 1/16" (78 mm).
• Latch bolt: Deadlocking anti-friction top and bottom bolt 5 /8" (16mm) throw.
• Door undercut: 1 /4" (7mm).
• Top and bottom latch: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm).
• Vertical rods: 1 /2" square tubing, standard rods accommodate 7'(2134mm) door Top rod length is 34 15/16" (887mm) Bottom rod length is 31 1/4" (794mm) Extension rods available 1' (205mm) or 3' (914mm) for doors over 7' One piece top rod available for 8' (2438mm) -10' (3048mm) door.
• Fasteners and sex bolts (SNB): Includes 1 3/4" (44mm) - 2 1/4" (57mm) wood and metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) #325 SNB furnished for top and bottom latches.

Product Specifications:

Technical Specifications:

Download:

• Installation Instruction
