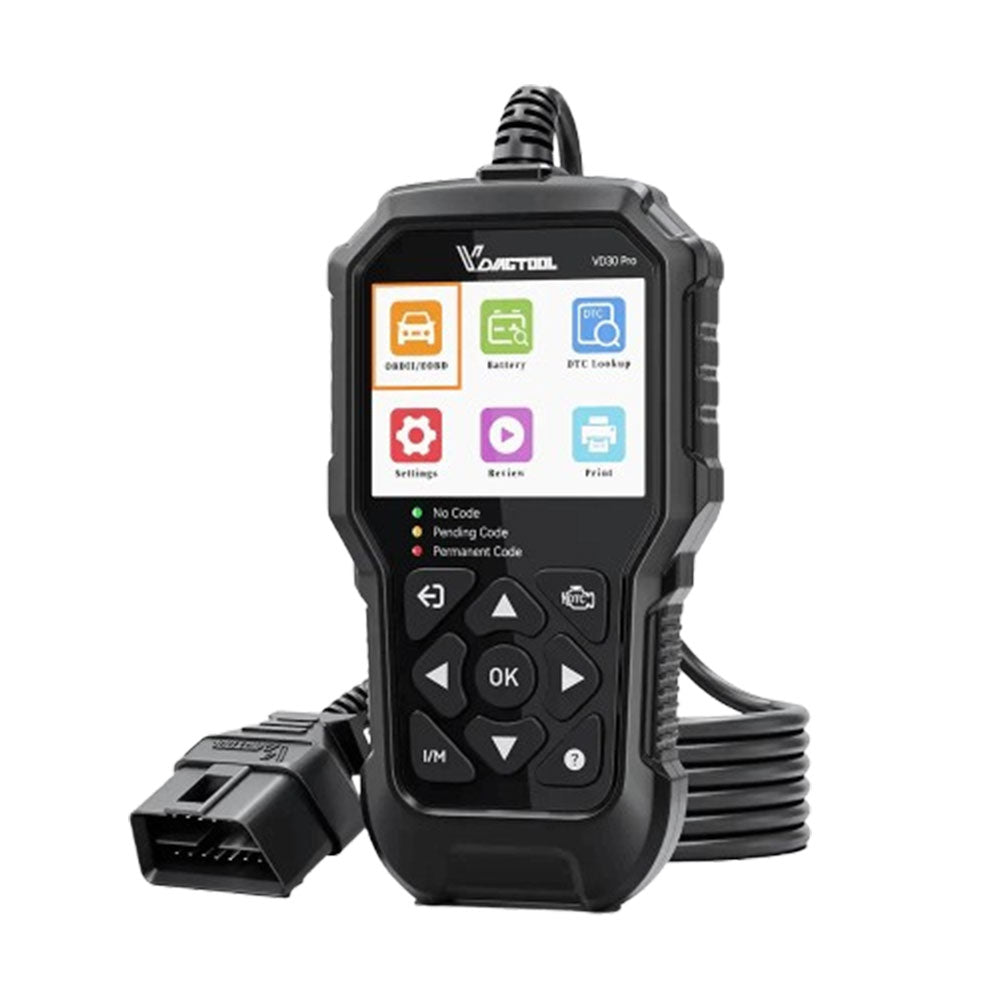

VDIAGTOOL VD30 Pro OBD2 Diagnostic Scanner for Cars and Trucks - Check Engine Code Reader with Live Data, Reset & I/M Readiness
VDIAGTOOL VD30 Pro OBD2 Diagnostic Scanner for Cars and Trucks - Check Engine Code Reader with Live Data, Reset & I/M Readiness
Couldn't load pickup availability
VDIAGTOOL VD30 Pro OBD2 Diagnostic Scanner for Cars and Trucks - Check Engine Code Reader with Live Data, Reset & I/M Readiness
Specifications:
| Display | 2.8" TFT Color Display |
| Weight | 7.69 ounces |
| Dimensions | 6.5 x 3.48 x 1.02 inches |
| Connection | Lined connection via main cable |
| Power Source | Powered by connecting to OBDII port or using Type-C cable |
| Vehicle Compatibility | Works on OBDII & EOBD vehicles (12V) |
| OBD2 Tests | 10 OBD2 Functions |
| Live Data Graphing | 4-in-1 Live Data Graphing |
| LED Indicators | Green, Yellow, Red |
| Battery Voltage Test | Yes |
| DTC Lookup | Yes |
| One-Click I/M Readiness Status | Yes |
| One-Click DTC Reading | Yes |
| All OBDII Protocols | Yes |
| Data Review & Printing | Yes |
| Free Updates | Yes |
Easy To Use - Comprehensive OBD2
VDIAGTOOL VD30 Pro is capable of performing all 10 OBD2 tests, including turning off the Check Engine Light (CEL), reading/clearing trouble codes, real-time data (4-in-1 graph), freeze frame, one-click I/M readiness (smog check), onboard monitoring tests (Mode 06), component tests, O2 sensor tests, vehicle information, and module presence.
Reliable Performance
The VDIAGTOOL VD30 Pro car code reader and reset tool is meticulously crafted using the latest upgraded chip, and high-quality wear-resistant and drop-resistant materials to withstand the most challenging conditions, offering longevity and reliability in every diagnostic session.
One-Click Smog Check
VDIAGTOOL VD30 Pro OBD2 scanner code reader features One-Click I/M Readiness hot key that shows various sensors ready status on a single screen and help you keep the engine in good conditions, and get the vehicle ready for the annual smog check.
Quick DTC Lookup
DIAGTOOL VD30 Pro auto scanner comes with 42000+ built-in DTC library that shows brief fault code definitions right on the display.
4-in-1 Comprehensive Live Data
It can read data from vehicle sensors such as engine RPM, intake air temperature, short/long-term fuel, misfire data, etc., and display 4 PIDs simultaneously, merging them into one chart for comparison.
Data Playback and Printing
To facilitate the recording and review of historical vehicle issues, the [Review] and [Print Data] options are available. For printing diagnostic data, you need to connect the VD30 pro to a computer via a USB cable. The VD30 PRO car code reader comes with a 1-year warranty, lifetime free software updates through connecting to a Windows PC using the included USB cable, and 24/7 tech support.
Battery Test
To ensure the vehicle is in good condition for diagnosis, the battery voltage test function can check the real-time voltage of your vehicle.
