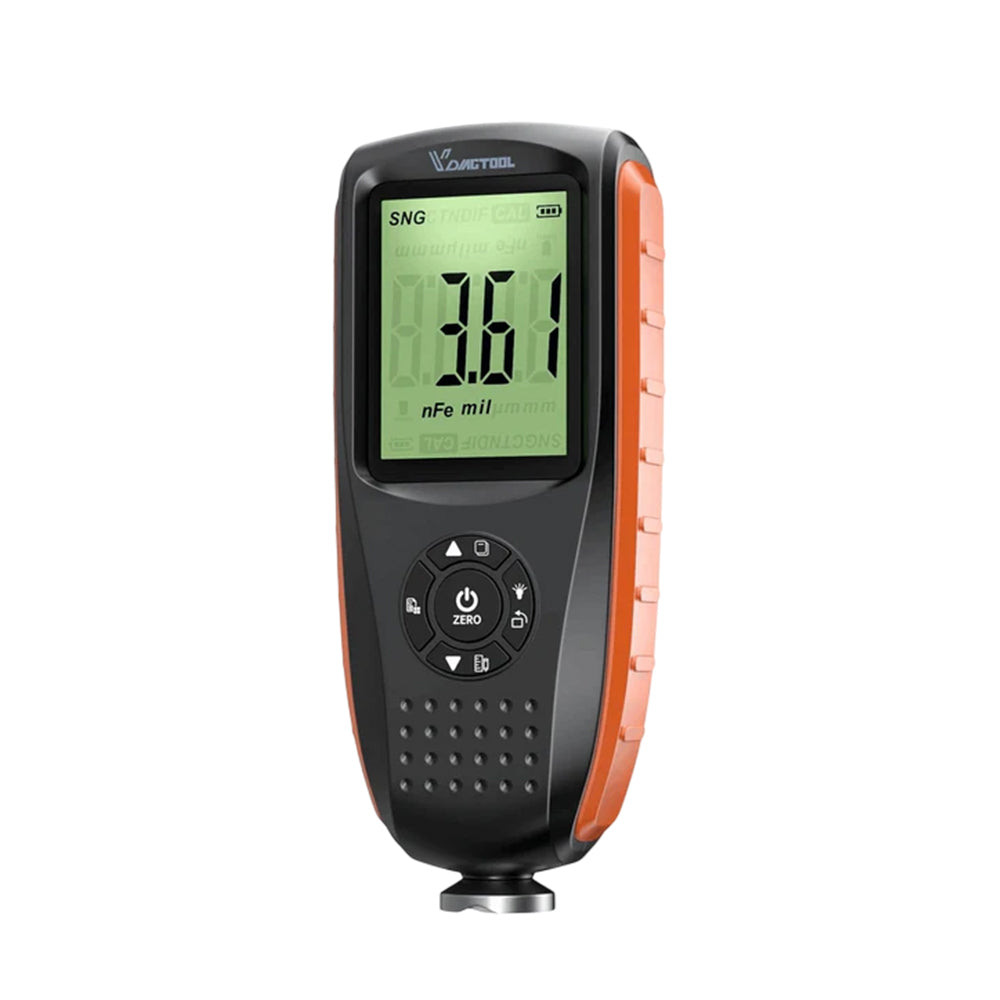

VDIAGTOOL VC200 High Precision Coating Thickness Gauge for Cars

VDIAGTOOL VC200 High Precision Coating Thickness Gauge for Cars

$59.87 USD
$79.82 USD $59.87 USD
Sale Sold out

VDIAGTOOL VC200 High Precision Coating Thickness Gauge for Cars

The VDIAGTOOL VC200 Paint Thickness Gauge is a handheld, non-destructive coating tester designed with high-precision Fe/NFe Dual Probe for accurate car paint measurement

Features:
  • Ultra-High Precision: Resolution: 0.01 mil/0.1 µm (<100 µm), 1 µm (≥100 µm); Measuring Range: 0-59.1 mils; Accuracy: ±3%.
  • Fe/NFe Dual Probe: Automatically identifies ferrous (steel/iron) and non-ferrous (aluminum) substrates for accurate measurements.
  • 3 Measurement Modes: Single (SNG), Continuous (CTN), and Differential (DIF) modes for spot checks, area scanning, and thickness difference inspection.
  • 3 Calibration Options: Basic, Zero-point, and Offset calibration to ensure precise readings on any metal surface.
  • Digital HD Display: LCD with backlight and 180° rotatable screen for easy reading from any angle.
  • USB Rechargeable: Convenient charging with included USB cable, no batteries required.
  • Professional Applications: Ideal for used car buyers, dealers, auto detailers, body shops, inspectors, and appraisers.
  • Detect Repaints & Repairs: Quickly check past accident damage, repaint history, rust, and clear coat thickness removed during sanding or buffing.
  • Compact & Handheld: Lightweight, non-destructive design, suitable for concave, rough, and convex surfaces without scratching paint.
Specifications:
Operating Temperature -20 to 40°C (-4 to 104°F). Calibrate again for large temperature differences.
Operating Humidity 10-95% RH
Battery Rechargeable 1000mAh built-in lithium battery
Weight 8.78 ounces
Dimensions 2.04 x 1.02 x 4.88 inches
Measurement Range 0-1300 µm / 51 mil / 1.30 mm
Resolution 0.01 mil / 0.1 µm (<100 µm); 1 µm / 0.1 mil / 0.001 mm (≥100 µm)
Accuracy ±5 µm (≤150 µm); ±(3%H + 1 µm) (>150 µm)
Screen Rotation 180° Rotation
Test Probe High-precision Fe/NFe dual probe
Measurement Units mm / µm / mil
