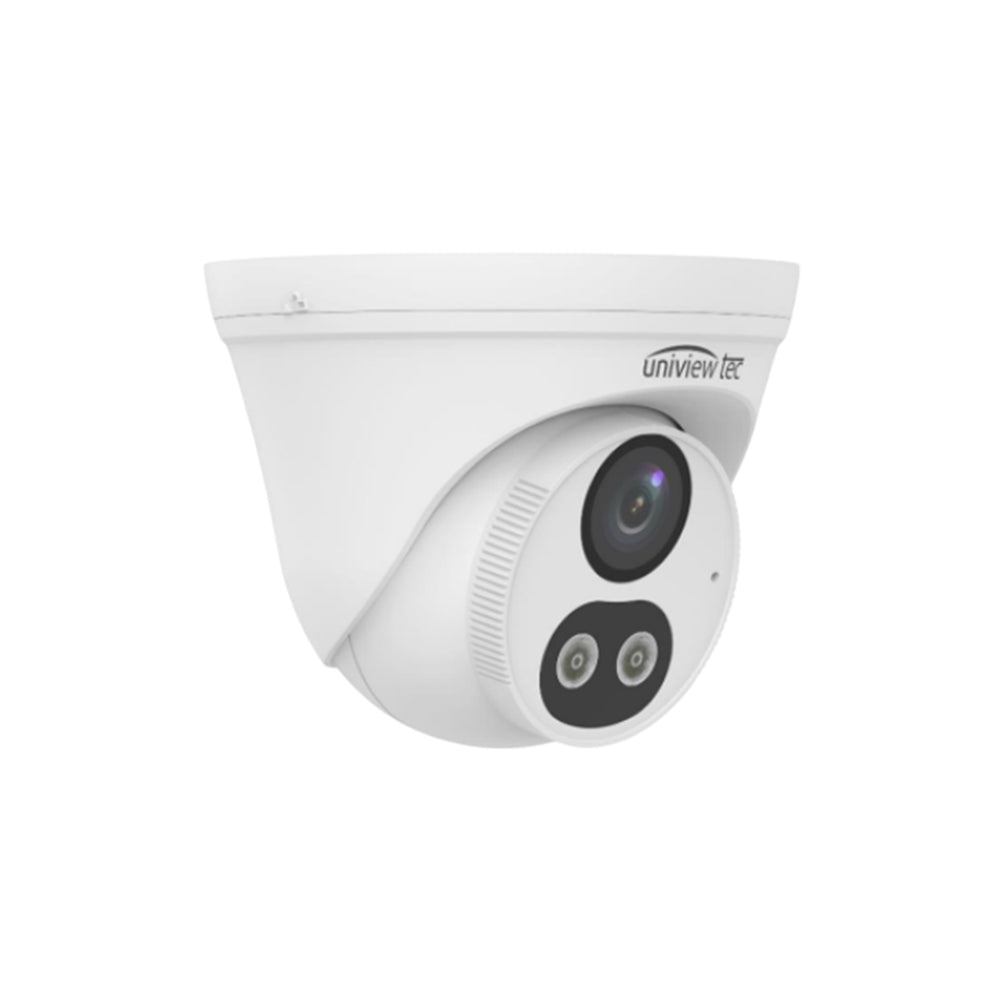

Uniview Technology IPT5EC28X 5MP Intelligent Color Hunter Fixed Turret IP Camera with HLC, WDR and IR Night Vision
Uniview Technology IPT5EC28X 5MP Intelligent Color Hunter Fixed Turret IP Camera with HLC, WDR and IR Night Vision
Regular price
$239.00 USD
Regular price
$341.43 USD
Sale price
$239.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Technology IPT5EC28X 5MP Intelligent Color Hunter Fixed Turret IP Camera with HLC, WDR and IR Night Vision
Key Features:
- Complies with National Defense Authorization Act (NDAA) standards
- ColorHunter technology delivers vibrant full-color images in ultra-low light down to 0.01 Lux (F1.6, AGC ON)
- High-quality 5MP video with 2880 x 1620 resolution
- Efficient H.265 video compression reduces bandwidth and storage usage
- Powerful smart IR LEDs for complete darkness operation up to 98 feet
- 2.8mm fixed lens; ONVIF Profile S supported
- TRUE Day/Night and Wide Dynamic Range (WDR) for challenging lighting conditions
- Dual video streams, built-in microphone, digital defog, and 3D noise reduction
- Advanced intrusion prevention with reduced false alarms for humans and vehicles
- PoE & 12VDC power options; supports wall and pendant mounts
- Micro-SD card slot for local storage up to 128GB
- Adjustable 3-axis mount; IP67 weatherproof rating
- Compatible with Uniview tec Guard Station software, Guard Live, and Guard Viewer mobile apps for iOS and Android
Specifications:
| Camera | |
| Resolution | 5MP |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.01 lux (F1.6, AGC ON); 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0°~360°, Tilt: 0°~80°, Rotate: 0°~360° |
| S/N | >52dB |
| WDR | Digital |
| Lens | 2.8mm Fixed Lens, F1.6, H:97°, V:52.2°, D:107.5° |
| DORI | |
| DORI Distance (Detect) | 63.0m (206.7ft) |
| DORI Distance (Observe) | 25.2m (82.7ft) |
| DORI Distance (Recognize) | 12.6m (41.3ft) |
| DORI Distance (Identify) | 6.3m (20.7ft) |
| Illuminator | |
| IR Distance: | 30m, Light Distance: 30m, Wavelength: 850nm, IR On/Off: Auto/Manual |
| General | |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main: 5MP@20fps; 4MP@25fps; 3MP@30fps; 1080P@30fps; 720P@30fps |
| Video Stream | Dual Streams |
| Smart IR | Yes |
| HLC / BLC / Defog | HLC Supported, BLC Supported, Digital Defog |
| Audio | Built-in Mic, Compression: G.711U/A, Bitrate: 64 Kbps, Sampling Rate: 8KHz |
| Storage | Micro SD up to 128GB, Network: ANR, NAS(NFS) |
| Network | IPv4, TCP/IP protocols, ONVIF (Profile S/G/T), API/SDK support |
| Security | Password protection, HTTPS, RTSP/HTTP digest authentication, TLS 1.2 |
| Interface | 1xRJ45 10M/100M Ethernet, Built-in Mic |
| Power | DC 12V ±25%, PoE (IEEE 802.3af), Max 2.8W |
| Dimensions | Φ126 x 93.6mm (Φ5.0" x 3.7") |
| Weight | 0.29kg (0.64lb) |
| Material | Metal + Plastic |
| Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity ≤95% RH (non-condensing) |
| Protection | IP67 |
| Surge Protection | 4KV |
