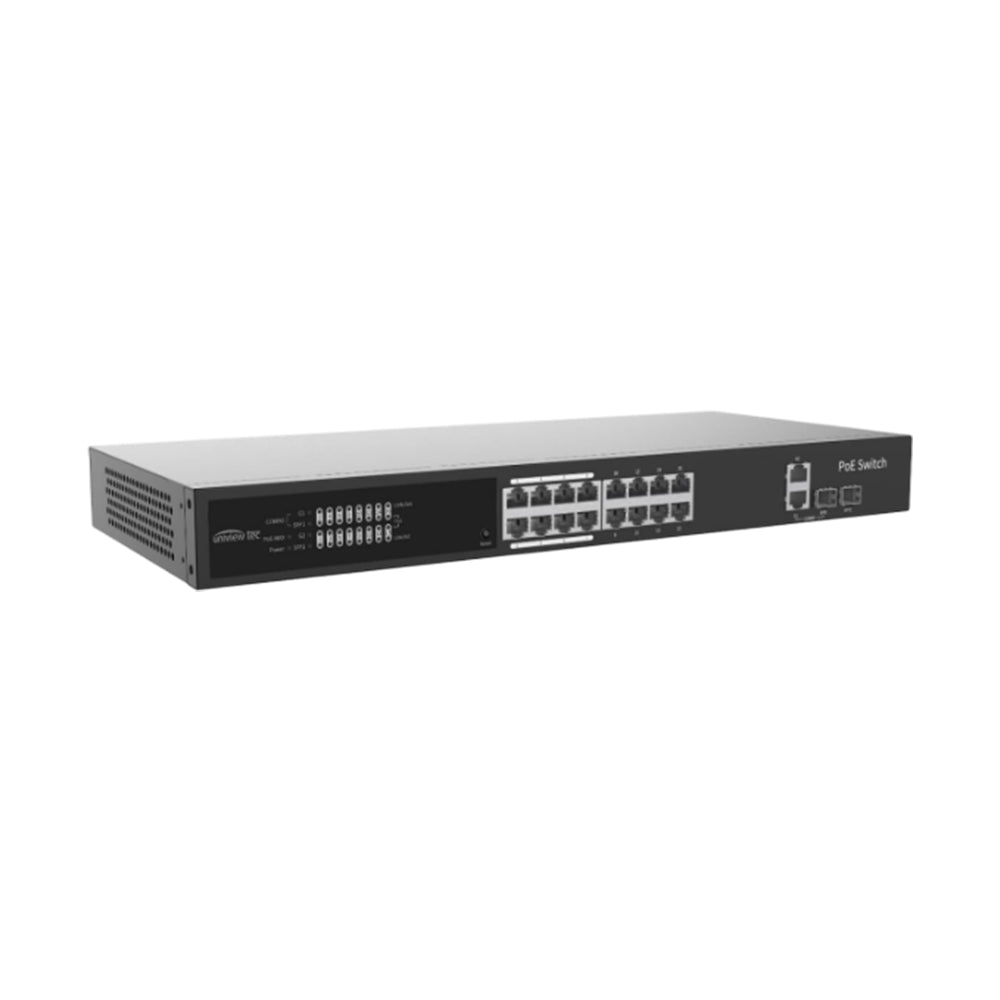

Uniview Tec NSW162GPX 16 Port Cloud Managed Smart PoE Network Switch

Uniview Tec NSW162GPX 16 Port Cloud Managed Smart PoE Network Switch

$449.00 USD
$583.12 USD $449.00 USD
Sale Sold out

Uniview Tec NSW162GPX 16 Port Cloud Managed Smart PoE Network Switch

The Uniview Technology NSW162GPX is a high-performance 16-Port Gigabit PoE Switch, ideal for powering IP cameras and network devices. Featuring smart management, robust power output, and reliable performance, it`s perfect for surveillance and enterprise network applications.

Features:
  • Meets NDAA Compliance Standards
  • 16 X 1000Mbps RJ45 PoE ports with 250W Total Capacity
  • 1 X 1000Mbps RJ45 Network ports; 1 X 1000Mbps SFP; 1 X 1000Mbps Combo
  • Support PoE power up to 30W for single port
  • Supports web login or cloud access by QR with remote restart of PoE ports
  • Supports port power and data prioritization, power toggle on each port, and extended mode for up to 250m power delivery on standard network cable
  • Auto detect power device with real-time monitoring and abnormal alarms
  • Supports IEEE802.3x full duplex flow control and backpressure half duplex flow control
  • Line-speed forwarding, intelligent identification, and topology
  • Allows reporting of port abnormal alarms to the software for real-time monitoring
Specifications:
PoE Network Switch
Ports 16 X 1000Mbps PoE ports (RJ45); 1 X 1000Mbps RJ45 ; 1 X 1000Mbps SFP ;1 X 1000Mbps Combo
Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Switching Capacity 38Gbps
Forwarding Performance 28.272Mpps
Packet Buffer 4Mbit
MAC 8K
Dimensions (W X D X H) 440 X 189.8 X 44mm; (17.3 X 7.4 X 1.7")
Weight 4.8lb
Input Voltage/Max Power 100-240VAC, 50/60Hz
Max Power 265W
Maximum PoE Power Max capacity: 250W ; Max capacity for single port: 30W; Mode A, 1/2+, 3/6-; Mode B, 4/5+, 7/8
Prior Ports Up to 8
Cooling Fan(s) 1
Operating Temperature 0° ~ 40° C (32° ~ 104° F); 10% ~ 90% non-condensing
Storage Environment -40° ~ 70° C (104° ~ 158° F); 5% ~ 90% non-condensing
Indicator POWER: OFF: No AC input; ON (Green): Normal power input; ON (Yellow): PoE power is 85% of the total; PoE: OFF: No PoE power supply; ON: PoE power supply is normal; LINK/ACT: OFF: No link; Steady ON: Linked; FLASHING: Transmitting data; PoE-MAX: OFF: The POE power draw is less than 80%; ON: The POE power draw is greater than 85%
Software Specification
Ethernet Supports Full, Half, and Auto-negotiated Duplex; Auto-negotiation rate, Priority flow control, Link aggregation group, Port flow statistics, Enable/disable ports
VLAN Supports access and trunk modes; allows up to 32 VLANS with IDs from 1 to 4094
MAC Supports up to 8K, Clearing the dynamic MAC address
POE Allows viewing PoE status and power, enabling and disabling of ports
Loop Detection Loop Detection
QoS Supports port rate limit and broadcast storm control
System Allows viewing of device name, model, serail, version, IP address, MAC address, DNS, operation time, etc; Edit and manage IP address and device name; Single user management, user authentication, password modification; Manual and NTP time configuration; Up to 32 switch and 64 device topology information
Security Support port isolation; Locking login IP address, up to 64 addresses
Maintenance Supports 1 port mirroring; unified software configuration, management, and search; Device discovery and network topology; Device upgrade, default, import/export configuration, export logs, and restart
