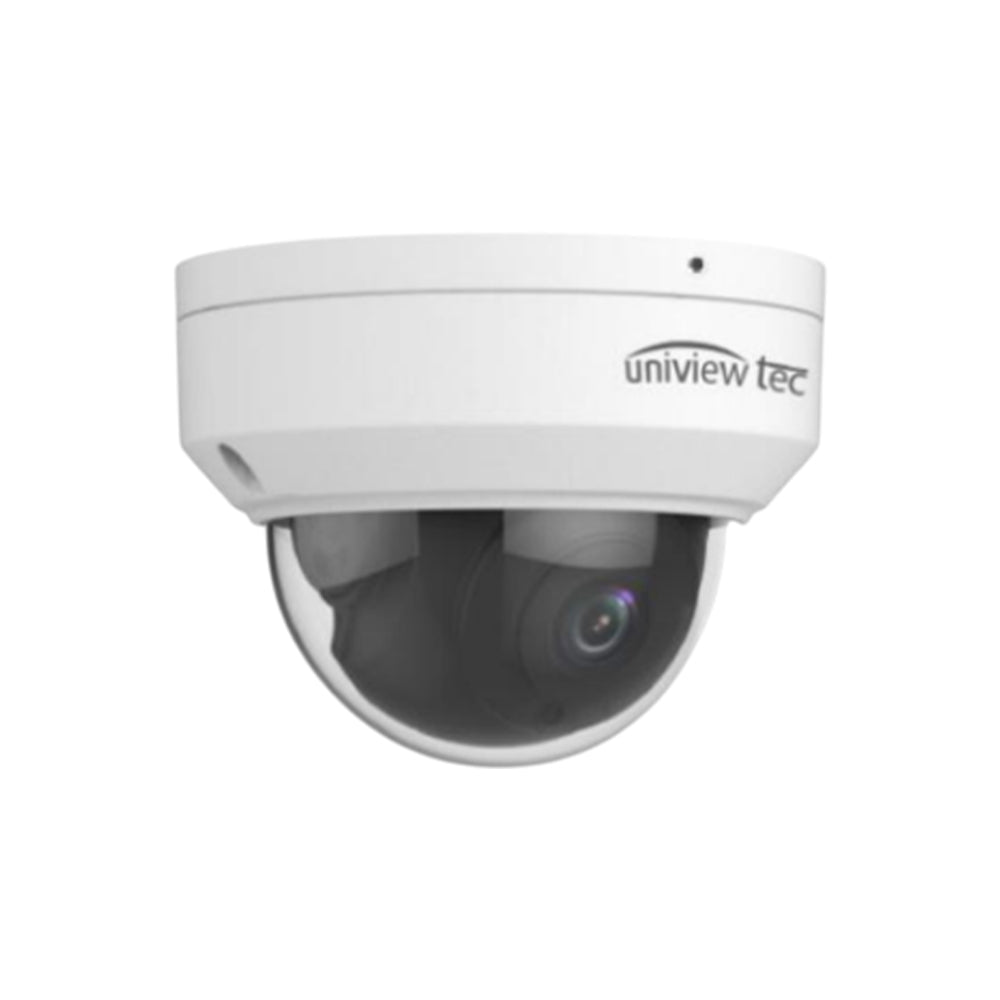

Uniview Tec IPV4ES28X 4MP Vandal Dome IP Camera with True Day/Night, WDR and IR Night Vision
The Uniview Tec IPV4ES28X is a high-performance 4MP vandal dome IP camera designed to deliver exceptional surveillance in any lighting condition. Featuring True Day/Night functionality, Wide Dynamic Range (WDR), and powerful IR night vision, this camera ensures crisp, clear video both day and night.
Built to withstand harsh environments, the IPV4ES28X is enclosed in a rugged, vandal-resistant dome housing-ideal for high-risk indoor or outdoor installations. It is perfect for a wide range of security applications including commercial buildings, schools, and public spaces.
Features:
- Meets NDAA Compliance Standards
- 4MP High-Definition Clarity with 2560 x 1440 Resolution
- H.265 High-Efficiency Video Codec for Optimized Storage and Network Usage
- 2.8mm fixed and wide-angle lens
- Smart IR Night Vision - 0 Lux Performance with Visibility up to 98 Feet
- True Day/Night and Wide Dynamic Range (WDR) for Clear Imaging in Any Light
- Enhanced Image Clarity with Backlight Compensation, Defog, and 3D Digital Noise Reduction
- Dual Video Streaming with ONVIF Profile S Compliance and built-in Microphone
- Integrated Micro-SD Slot Supports Local Storage Up to 128GB
- Motion Detection
- 3-Axis Adjustable Design with IP67 weather Resistant Housing
- PoE and 12VDC Power Options
- Supported by Uniview Tec Guard Station Software and Mobile Apps for iPhone and Android Devices
Specifications:
| Camera | |
|---|---|
| Sensor | 1/2.9" 4MP, progressive scan CMOS |
| Minimum illumination | Color: 0.01 lux (F2.0, AGC ON); 0 lux with IR on |
| True Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle (3-way Axis) | Pan: 0 ~ 360° Tilt: 0° ~ 75° Rotate: 0° ~ 360° |
| WDR | 120dB |
| S/N | 52dB |
| Lens | |
| Lens | 2.8mm @ F2.0 |
| Iris | Fixed |
| Field of View (H) | 101.5° |
| Field of View (V) | 55.6° |
| Field of View (D) | 111.6° |
| DORI | |
| DORI Distance | Detect (m): 63 Observe (m): 25.2 Recognize (m): 12.6 Identify (m): 6.3 |
| Illuminator | |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4MP (2560 X 1440), Max 25fps; 3MP (2304 X 1296), Max 30fps; 1080P (1920 X 1080), Max 30fps; 720P (1280 X 720), Max 30fps Sub Stream: D1 (720 X 576), Max 30fps; 640 X 360, Max 30fps; 2CIF (704 X 288), Max 30fps; CIF (352 X 288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual |
| Image | |
| White Balance | Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| Flip | Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Intrusion Events | |
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS SSL/TLS, SNMP, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Guard Station, Guard Viewer |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic | Support |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 10W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimension (Ø X H) | Φ 109 X 83mm (Ø 4.3 X 3.3") |
| Weight | 0.36kg (0.79lb) |
| Working Environment | -30° C ~ 60° C (-22° F ~ 140° F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Conformity Certifications | IP67, IK10, CE, FCC |
