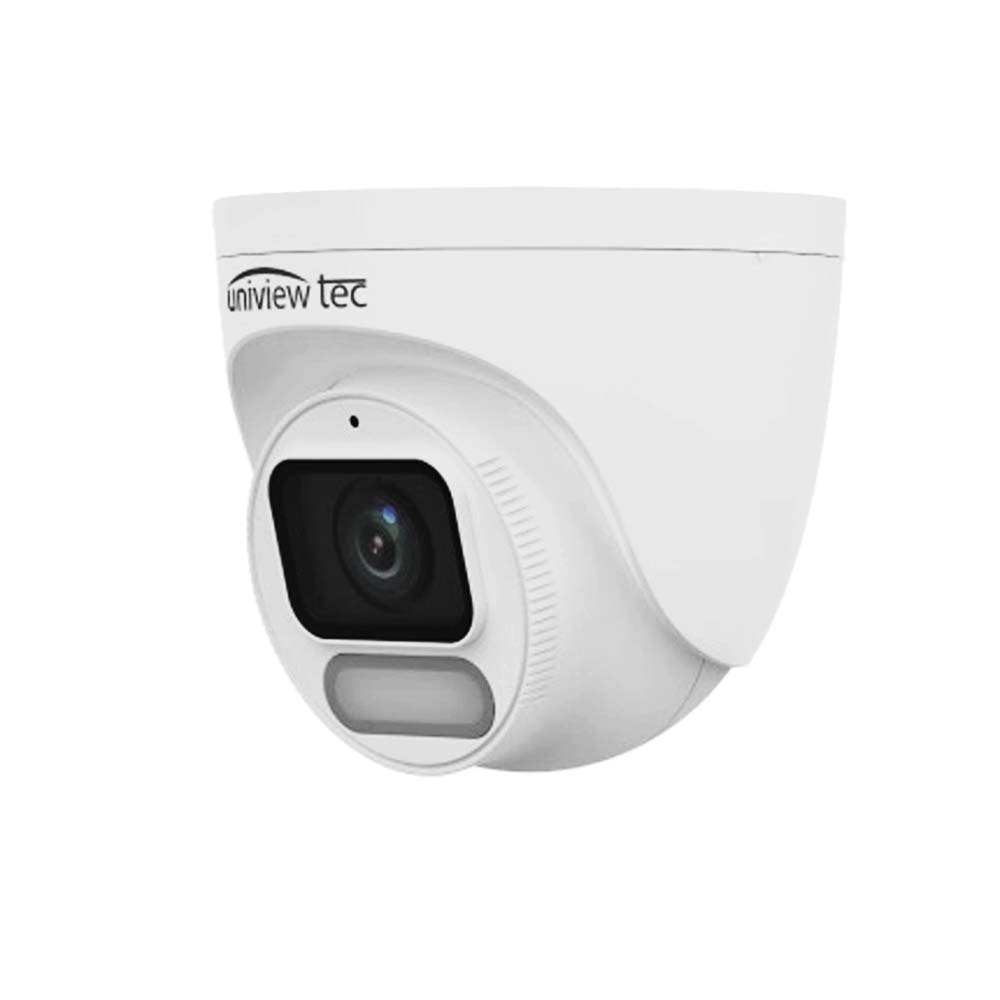

Uniview Tec IPT4WI28X Fixed Lens Turret Camera 4MP Colorhunter+ WDR AI
Uniview Tec IPT4WI28X Fixed Lens Turret Camera 4MP Colorhunter+ WDR AI
Regular price
$419.00 USD
Regular price
$544.16 USD
Sale price
$419.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec IPT4WI28X Fixed Lens Turret Camera 4MP Colorhunter+ WDR AI
Features:
- Fully adheres to National Defense Authorization Act (NDAA) guidelines
- ColorHunter+ technology ensures ultra-high color image up to 0.0003 Lux (F1.0, AGC ON)
- Exceptional video quality with 4MP, 2688 x 1520 resolution
- H.265 video compression for drastically reduced bandwidth and storage requirements
- Powerful white light operation up to 98 feet
- 2.8mm fixed lens; ONVIF Profile S compliant
- Exceptional night time color image and WDR functionality
- Dual video streams, built-in mic, smart illumination, digital defog and 3D DNR
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- PoE & 12VDC power options and optional wall and pendant mounts available
- Built-in micro-SD card slot enables local storage up to 256GB
- 3-way axis, CE and IP67 weather resistant
- Supported by Uniview Tec Guard Station software, as well as Guard Live and Guard Viewer mobile apps for iPhone and Android devices
Specifications:
| Camera | |
|---|---|
| Max Resolution | 4MP |
| Sensor | 1/1.8" CMOS |
| Minimum Illumination | Color : 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| Lens | |
| Focal Length | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 110.4° |
| Field of View (V) | 60.5° |
| Field of View (O) | 115.2° |
| DORI | |
| DORI Distance | 2.8mm - Detect: 43.4m, Observe: 17.4m, Recognize: 8.7m, Identify: 4.3m |
| Illuminator | |
| Illumination Distance | 30m |
| Light On/Off Control | Auto / Manual |
| Video | |
| Video Compression | H.265; H.264; MJPEG |
| Frame Rate | 4MP (2688x1520) @25fps, 1080P (1920x1080) @30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| Image | |
| White Balance | Auto; Outdoor; Fine Tune |
| Digital Noise Reduction | 2D/3D DNR |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Motion Detection, Tampering Alarm, Audio Detection |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network | |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, ONVIF |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T) |
| Interface | |
| Built-in Mic | Support |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Certifications | |
| EMC | CE-EMC, FCC |
| Safety | CE LVD, UL/CUL |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Dimensions | Φ118x106mm (Ø4.6” x 4.2”) |
| Weight | 0.48kg (1.06lb) |
| Material | Metal + Plastic |
| Operating Temperature | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Protection | IP67 |
