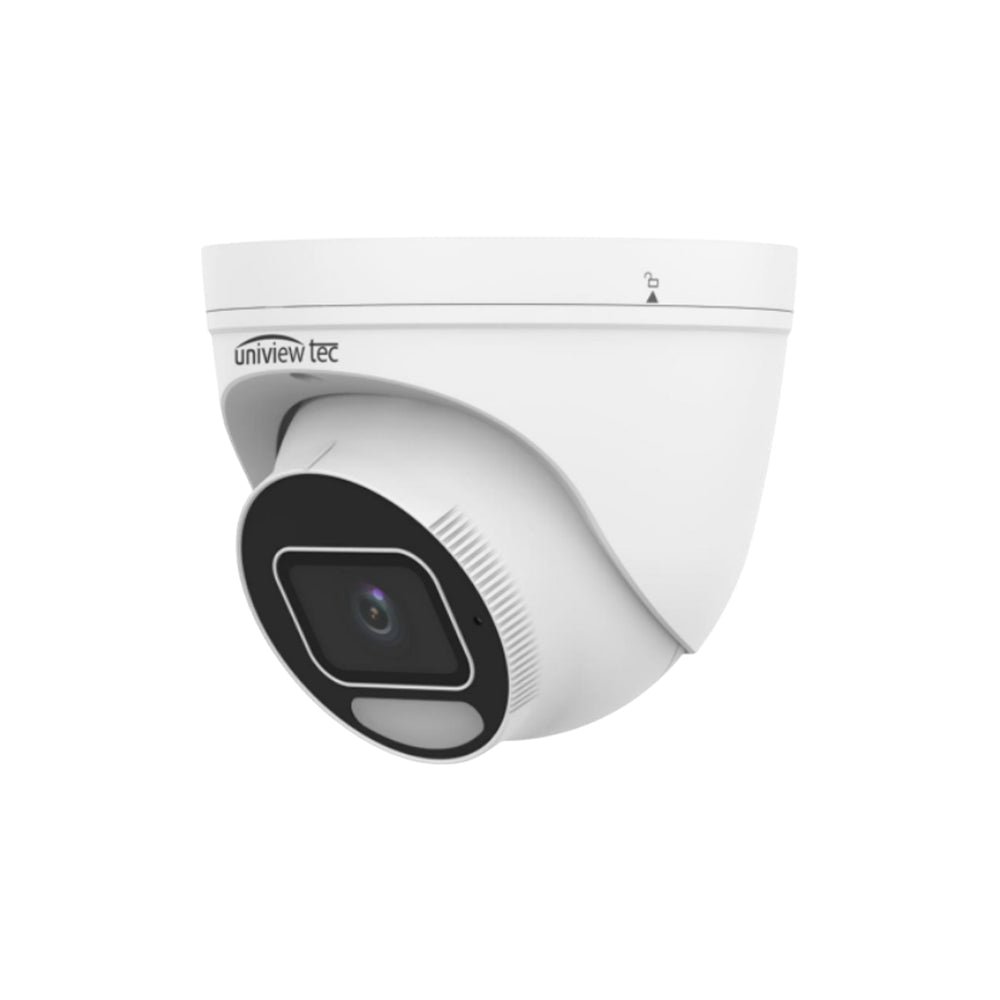

Uniview Tec IPT4WI28AIX 4MP ColorHunter+ AI Turret IP Camera with Wise-ISP, WDR, and Smart Detection

Uniview Tec IPT4WI28AIX 4MP ColorHunter+ AI Turret IP Camera with Wise-ISP, WDR, and Smart Detection

$489.00 USD
$635.06 USD $489.00 USD
Sale Sold out

Uniview Tec IPT4WI28AIX 4MP ColorHunter+ AI Turret IP Camera with Wise-ISP, WDR, and Smart Detection

The Uniview Tec IPT4WI28AIX is a high-performance 4MP AI turret IP camera designed for exceptional image quality in any lighting condition. Featuring ColorHunter+ technology with Wise-ISP, it delivers vivid full-color video even in ultra-low-light environments. With wide dynamic range (WDR), the camera ensures clear image capture in scenes with challenging lighting contrasts. Built-in AI capabilities enable smart motion detection, human and vehicle classification, and improved false alarm filtering. Its compact turret design makes it ideal for both indoor and outdoor surveillance applications, offering reliable performance with intelligent monitoring features.

Features:
  • Fully NDAA Compliant, ensuring suitability for government and sensitive installations
  • ColorHunter+ with Wise-ISP delivers ultra-bright full-color imaging down to 0.0003 Lux
  • Crisp 4MP Resolution (2560 x 1440) for sharp and detailed video footage
  • H.265 Compression reduces network load and saves storage space without sacrificing quality
  • Integrated White Light Illumination with a reach of up to 98 feet for vibrant night visuals
  • 2.8mm Fixed Lens with ONVIF Profile S support for broad compatibility with NVRs
  • WDR (Wide Dynamic Range) and enhanced night vision for challenging lighting scenarios
  • Triple Video Streaming, built-in microphone, smart lighting, digital defog, and 3D DNR noise reduction
  • Advanced AI Detection minimizes false alerts, focusing on people and vehicles; includes people counting and color-based event search
  • Flexible Power Options with PoE and 12VDC support; wall and pendant mounts available as accessories
  • Onboard microSD Card Slot supports up to 512GB local recording
  • 3-Axis Adjustment for flexible installation; IP67 weatherproof and CE certified for outdoor use
  • Compatible with Uniview Tec Guard Station software, and mobile apps like Guard Live and Guard Viewer for iOS and Android
Specifications:
Camera
Max Resolution 4MP (2560 x 1440)
Sensor 1/1.8" CMOS
Minimum Illumination Color: 0.0003 lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0 ~ 360°, Tilt: 0 ~ 75°, Rotate: 0 ~ 360°
S/N >56dB
WDR 130dB
Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.0
Field of View (H) 110.4°
Field of View (V) 60.5°
Field of View (D) 115.2°
DORI
DORI Distance (Detect) 43.4 m (142.5 ft)
DORI Distance (Observe) 17.4 m (57.0 ft)
DORI Distance (Recognize) 8.7 m (28.5 ft)
DORI Distance (Identify) 4.3 m (14.3 ft)
Illuminator
Illumination Distance (Warm Light) 30m (98.4ft)
Light On/Off Control Auto/Manual
Video
Video Compression H.265; H.264; MJPEG
H.264 Code Profile Baseline, Main, High Profile
Frame Rate Main Stream: 4MP (2560x1440) @30fps; 1080P @30fps; 720P @30fps; D1 (720x576) @30fps; 640x360 @30fps; 2CIF (704x288) @30fps; CIF (352x288) @30fps Sub Stream: 1080P @30fps; 720P @30fps; D1 (720x576) @30fps; 640x360 @30fps; 2CIF (704x288) @30fps; CIF (352x288) @30fps Third Stream: D1 (720x576) @30fps; 640x360 @30fps; 2CIF (704x288) @30fps; CIF (352x288) @30fps
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
OSD; Privacy Mask 8 OSD; 4 Privacy Mask
ROI Support
Video Stream Triple Streams
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart Illumination Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
HLC / BLC / Defog Supported / Supported / Digital Defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting Support people flow counting and crowd density monitoring
Attribute Collection SIP with color retrieval
Events
Basic Detection Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Object Removed; Object Left Behind
General Functions Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication, Alarm input, Alarm output
Audio
Compression G.711U; G.711A
Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Network
Protocols IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users, 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client Guard Live, Guard Viewer, Guard Station
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+;Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 1/1
Built-in Mic Supported
Network 1 x RJ45 10M/100M Base-TX Ethernet
Certification
EMC CE-EMC, FCC Part 15B
Safety CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529); IK10 (IEC 62262)
General
Power DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 4.5W
Power Interface ø 5.5mm coaxial power plug
Dimensions ø129 x 110 mm (ø5.1" x 4.3" ) (ø x H)
Weight 0.67 kg (1.47 lb)
Material Metal
Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
