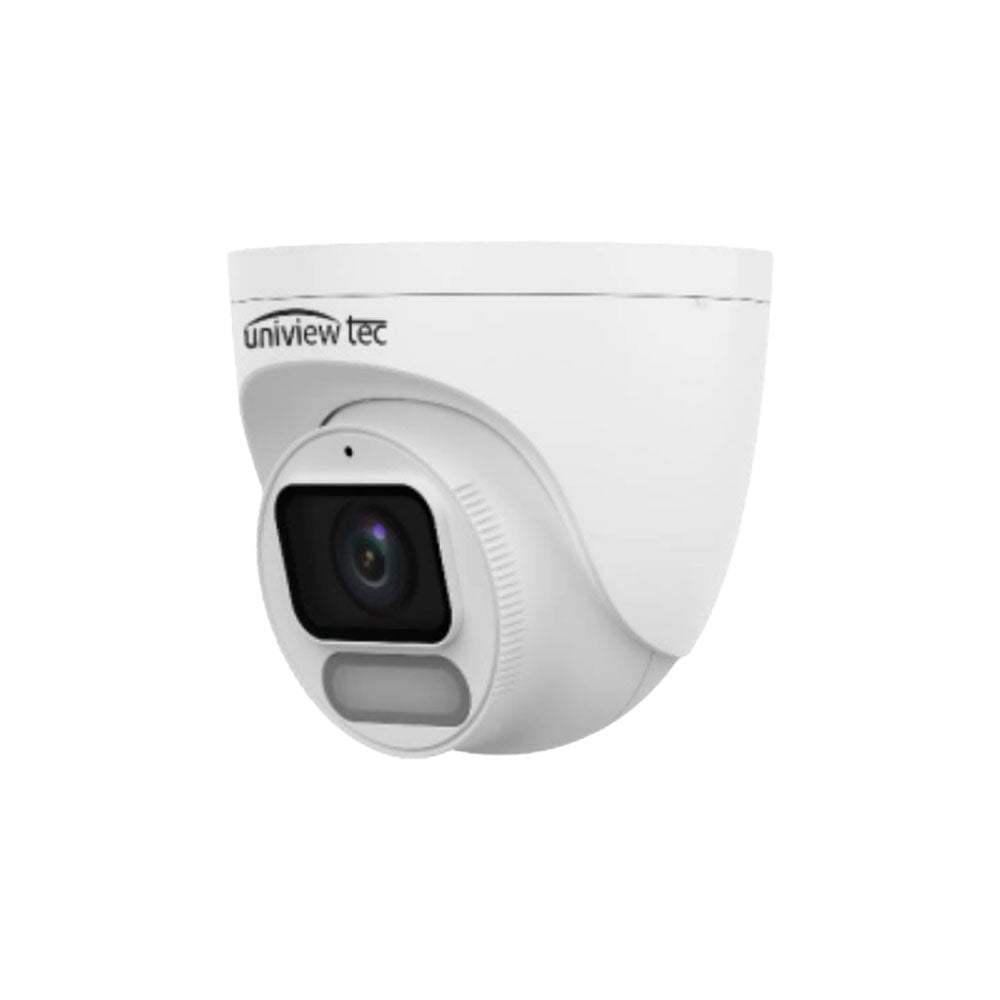

Uniview Tec IPT4KWI28AIX 8MP 4K ColorHunter AI Turret Camera with WDR, Night Vision & Smart Intrusion Protection
Uniview Tec IPT4KWI28AIX 8MP 4K ColorHunter AI Turret Camera with WDR, Night Vision & Smart Intrusion Protection
Regular price
$699.00 USD
Regular price
$907.79 USD
Sale price
$699.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec IPT4KWI28AIX 8MP 4K ColorHunter AI Turret Camera with WDR, Night Vision & Smart Intrusion Protection
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- ColorHunter+ technology ensures ultra-high color image up to 0.0003 Lux (F1.0, AGC ON)
- Exceptional Video Quality with 8MP, 3840 x 2160 Resolution
- H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful White Light Operation up to 98 Feet
- 2.8mm Fixed Lens; ONVIF Profile S Compliant
- Exceptional Night Time Color Image and WDR functionality
- Triple Video Streams, Built-in mic, Smart Illumination, Digital Defog and 3D DNR
- Alarm and Audio Inputs/Outputs
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- 3-Way Axis, CE, IK10 Vandal Resistant and IP67 Weather Resistant
- Supported by uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile App's for iPhone and Android Devices
Specifications:
| Max Resolution | 8MP |
| Sensor | 1/1.2" CMOS |
| Min. Illumination | Color: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360° |
| S/N | >56 dB |
| WDR | 130 dB |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 105.0° |
| Field of View (V) | 56.1° |
| Field of View (D) | 121.0° |
| DORI Detect | 43.4m (142.4ft) |
| DORI Observe | 17.4m (57.1ft) |
| DORI Recognize | 8.8m (28.5ft) |
| DORI Identify | 4.3m (14.1ft) |
| Illumination Distance (Warm Light) | 30m (98.4ft) |
| Light On/Off Control | Auto/Manual |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 8MP/5.3MP/3.6MP/1080P/720P @30fps Sub Stream: 1080P/720P/D1/640x360/2CIF/CIF @30fps Third Stream: D1/640x360/2CIF/CIF @30fps |
| Video Bit Rate | 128 Kbps - 6144 Kbps |
| U-code | Support |
| Privacy Mask | Up to 4 |
| ROI / OSD | Up to 8 areas |
| Video Stream | Triple Streams |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal, Vertical, Horizontal, 180°, 90° CW, 90° CCW |
| HLC / BLC | Support |
| Auto Scene Match | Support |
| Defog | Digital Defog |
| Basic Detection | Motion, Ultra Motion, Tampering, Audio Detection, Cross Line, Intrusion |
| General Functions | Watermark, IP Filtering, Access Policy, ARP Protection, RTSP/HTTP Authentication |
| Smart Intrusion Prevention | Cross line, intrusion, enter/leave area (human/vehicle filtering) |
| People Counting | People flow & crowd density |
| Attribute Collection | SIP with color retrieval |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Edge Storage | Micro SD up to 512GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | ONVIF S/G/T/M, API, SDK |
| User/Host | Up to 32 users, 3 levels |
| Security | Password, HTTPS, TLS1.2, logs, RTSP/HTTP digest authentication |
| Client Software | Guard Live, Guard Viewer, Guard Station |
| Web Browser | IE10+, Chrome, Firefox, Edge |
| Audio I/O | 1 In (35 kΩ, 2V p-p), 1 Out (600 Ω, 2V p-p) |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Network | 1 x RJ45 10/100M Ethernet |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| Protection | IP67, IK10 |
| Power | DC 12V±25%, PoE (802.3af), Max 6.0W |
| Power Interface | Ø5.5 mm coaxial plug |
| Dimensions | Φ129 x 110 mm (Φ5.1" x 4.3") |
| Weight | 0.69 kg (1.52 lb) |
| Material | Metal |
| Environment | -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH |
| Surge Protection | 4KV |
| Reset Button | Support |
