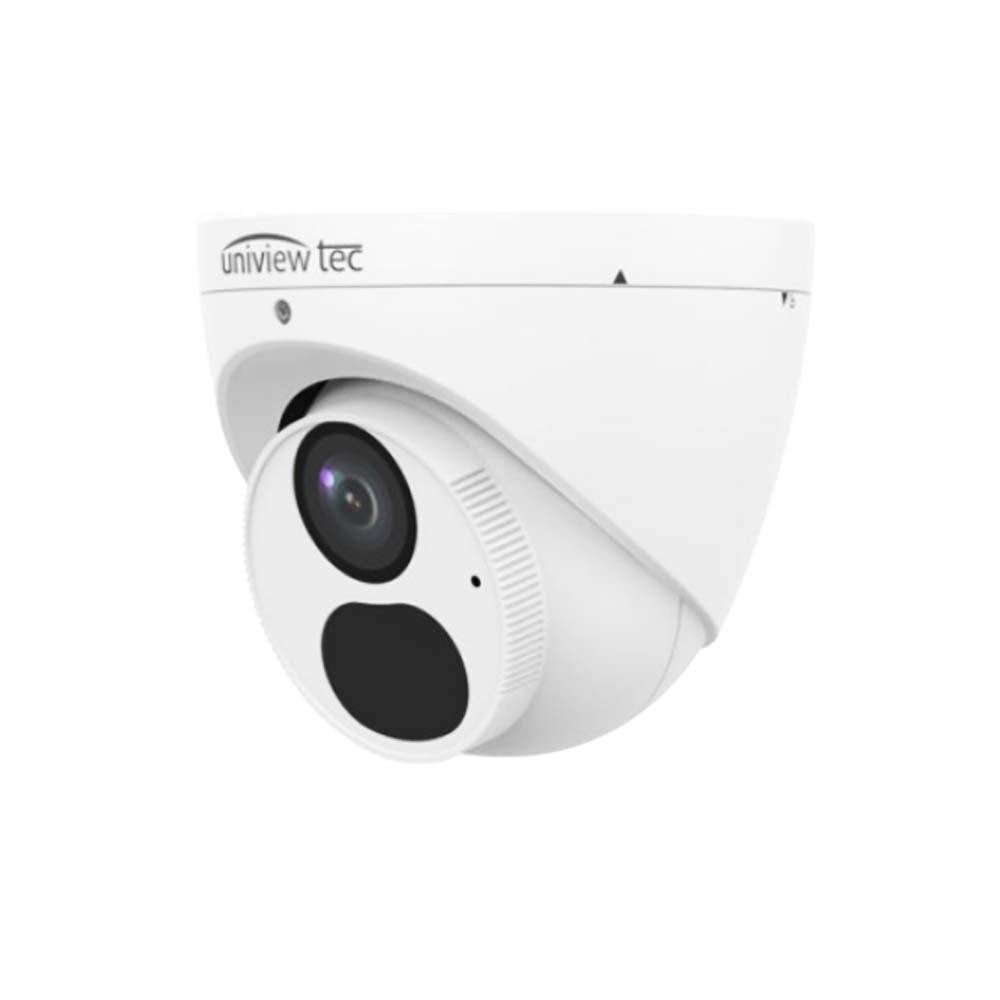

Uniview Tec IPT4KES28X 8MP Ultra HD NDAA-Compliant IR Turret IP Camera

Features:
  • Fully adheres to National Defense Authorization Act (NDAA) guidelines.
  • Easy Star illumination technology ensures color imaging up to 0.005 Lux (F1.6, AGC ON).
  • Exceptional video quality with 8MP, 3840 x 2160 Ultra HD resolution.
  • Super-efficient H.265 video compression significantly reduces bandwidth and storage requirements.
  • Powerful Smart IR LED lights provide 0 Lux nighttime operation up to 98 feet.
  • 2.8mm fixed lens with ONVIF Profile S compliance for flexible system integration.
  • True Day/Night and WDR functionality deliver reliable performance in all lighting conditions.
  • Dual video streams, built-in microphone, Corridor Mode, Backlight Compensation, and 3D DNR.
  • Intelligent smart intrusion prevention technology reduces false alarms by focusing on humans and motor vehicles.
  • PoE and 12VDC power options with optional wall and pendant mounts available.
  • Built-in Micro-SD card slot supports local storage up to 512GB.
  • 3-way axis adjustment and IP67 weather-resistant construction for indoor and outdoor use.
  • Supported by Uniview Guard Station software, Guard Live, and Guard Viewer mobile apps for iPhone and Android devices.
Specifications:
Camera
Max Resolution 8MP
Sensor 1/2.8" CMOS
Minimum Illumination Color: 0.005 lux ( F1.6, AGC ON); 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N >52dB
WDR 120dB
Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.6
Field of View (H) 98.7°
Field of View (V) 53.9°
Field of View (D) 103.6°
DORI
DORI Distance(Lens) 2.8mm
DORI Distance(Detect) 86.9m(285.1t)
DORI Distance(Observe) 34.8m(114.0ft
DORI Distance(Recognize) 17.4m(57.0ft)
DORI Distance(Identify) 8.7m(28.5ft)
Illuminator
Supplemental Light IR
Illumination Distance(IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main: 8MP (3840*2160) @30fps; 5MP (3072*1728) @30fps;4MP (2560*1440) @30fps; 1080P (1920*1080) @30fps; 720P (1280*720) @30fps
Sub: 1080P @30fps; 720P @30fps; D1 (720*576) @30fps; 640*360 @30fps; 2CIF
(704*288) @30fps; CIF (352*288) @30fps
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
OSD, Privacy Mask Up to 4
ROI Support
Video Stream Dual Streams
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
De-warping N/A
HLC Support
BLC Support
Defog Digital Defog
Events
Basic Detection Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
Audio
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Network
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client Guard Live, Guard Viewer, Guard Station
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af); Max 5.0W
Power Interface Ø 5.5 mm coaxial power plug
Dimensions 118 x 95mm (4.6” x 3.8”) (x H)
Weight 0.32kg (0.71lb)
Material Metal + Plastic
Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ?95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
