Uniview Tec

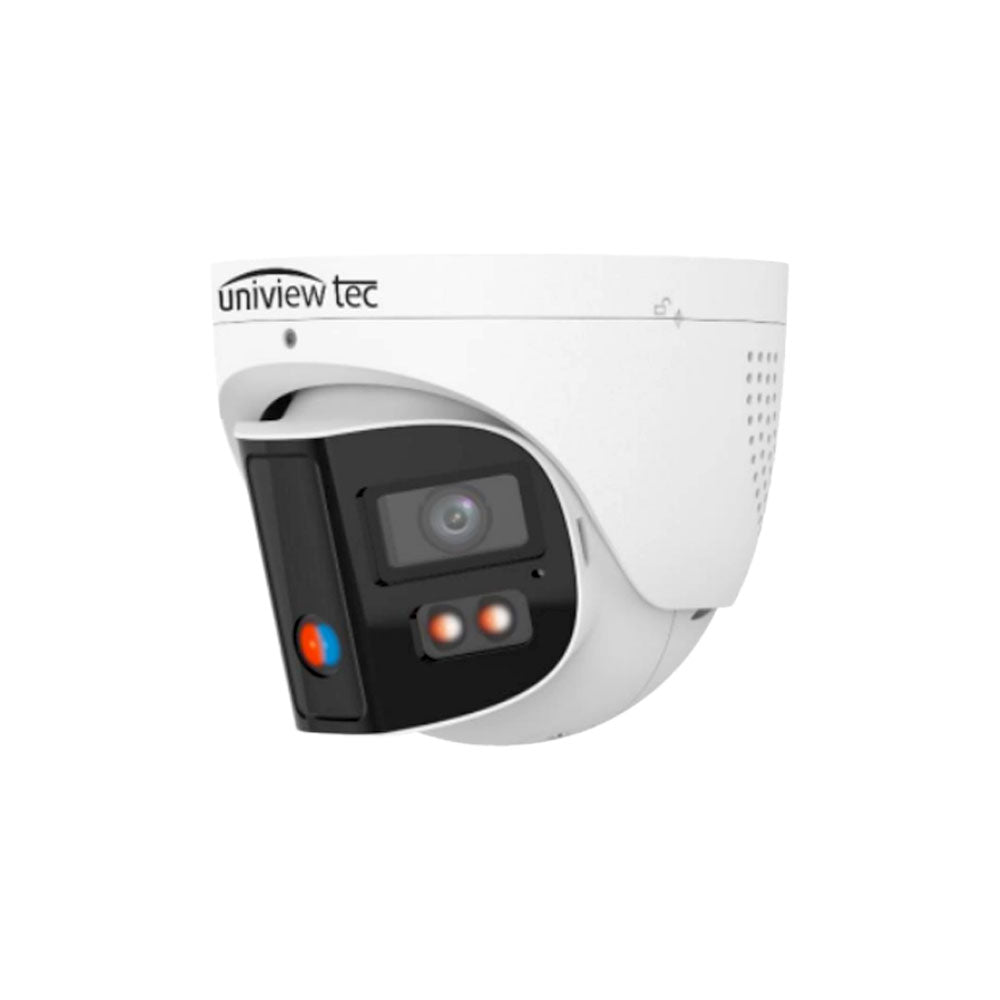

Uniview Tec IPT4K180CAIX 8MP 4K Multi-Lens ColorHunter AI Turret Camera - Ultra-Wide View - Full-Color Night Vision

Uniview Tec IPT4K180CAIX 8MP 4K Multi-Lens ColorHunter AI Turret Camera - Ultra-Wide View - Full-Color Night Vision

$779.00 USD
$1,011.69 USD $779.00 USD
Sale Sold out

Uniview Tec IPT4K180CAIX 8MP Multi-Lens ColorHunter Turret Camera - Ultra-Wide View - Full-Color Night Vision & Smart AI Security

Features:
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Exceptional Video Quality with 8MP, 4096 x 1860 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
  • 2x 2.8mm, 180° Multi-Lens; ONVIF Profile S Compliant
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Dual Video Streams, Defog, Backlight Compensation and 3D DNR
  • Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Optional Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 512GB
  • Two-way Audio, 3-way Axis, IP67 Weather Resistant Housing
  • Supported by uniview tec Guard Station, Guard Live and Guard Viewer App's for PC, Mac, iPhone and Android Devices
Specifications:
Max Resolution 8MP
Sensor 1/2.5" CMOS
Minimum Illumination Color: 0.0005 lux (F1.0, AGC ON); 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0°-360°, Tilt: 0°-75°, Rotate: 0°-360°
S/N >52 dB
WDR 130 dB
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.0
Field of View (H) 180°
Field of View (V) 65°
Field of View (D) 180°
DORI Lens 2.8 mm
DORI Detect 63.1 m (206.7 ft)
DORI Observe 25.2 m (82.7 ft)
DORI Recognize 12.6 m (41.3 ft)
DORI Identify 6.3 m (20.7 ft)
Supplemental Light IR, Warm Light
IR Illumination Distance 30 m (98.4 ft)
IR Wavelength 850 nm
IR On/Off Control Auto/Manual
Video Compression H.265; H.264; MJPEG
H.264 Profile Baseline, Main, High
Frame Rate Main: 8MP (4096x1860) @20fps
Sub: 2048x936 @20fps
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
Privacy Mask Up to 4
OSD / ROI Up to 8
Video Stream Dual Streams
Auto Scene Match (ASM) Support (Only WDR)
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip N/A
De-warping N/A
HLC Support
BLC Support
Defog Digital Defog
Basic Detection Cross Line, Intrusion, Enter/Leave Area, Motion Detection, Ultra Motion Detection, Tampering, Audio Detection
Statistical Analysis People Counting, Flow Counting, Crowd Density Monitoring
General Functions Watermark, IP Filtering, Access Policy, ARP Protection, RTSP/HTTP Authentication
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Audio Suppression Support
Sampling Rate 8 KHz
Edge Storage Micro SD up to 512 GB
Network Storage ANR; NAS (NFS)
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP/RTSP/RTCP/RTMP, DNS/DDNS, NTP, FTP, UPnP, HTTP/HTTPS, SMTP, QoS, SSL/TLS, 802.1x, SNMP, SSH
Compatible Integration ONVIF S/G/T; API; SDK
User/Host Up to 32 users, 3 levels
Security Password Protection, Strong Password, HTTPS, TLS1.2, Logs, RTSP/HTTP Digest Auth, WSSE
Client Guard Live, Guard Viewer, Guard Station
Web Browser IE10+, Chrome 45+/57+, Firefox 52+/58+, Edge 16+/79+
Audio I/O 1 In (35kΩ, 2V p-p), 1 Out (600Ω, 2V p-p)
Alarm I/O 1/1
Serial Port N/A
Built-in Mic Support x 2
Built-in Speaker Support
WiFi N/A
Network 1 x RJ45 10/100M Ethernet
Video Output N/A
Certifications CE, FCC, UL/CUL, CB, RoHS, WEEE
Protection IK10, IP67
Power DC 12V±25%, PoE (802.3af)
Power Interface Ø 5.5 mm coaxial plug
Dimensions Φ128.7 x 109.9 mm (Φ5.1" x 4.3")
Weight 0.86 kg (1.9 lb)
Material Metal
Environment -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH
Surge Protection 4KV
Reset Button Support
