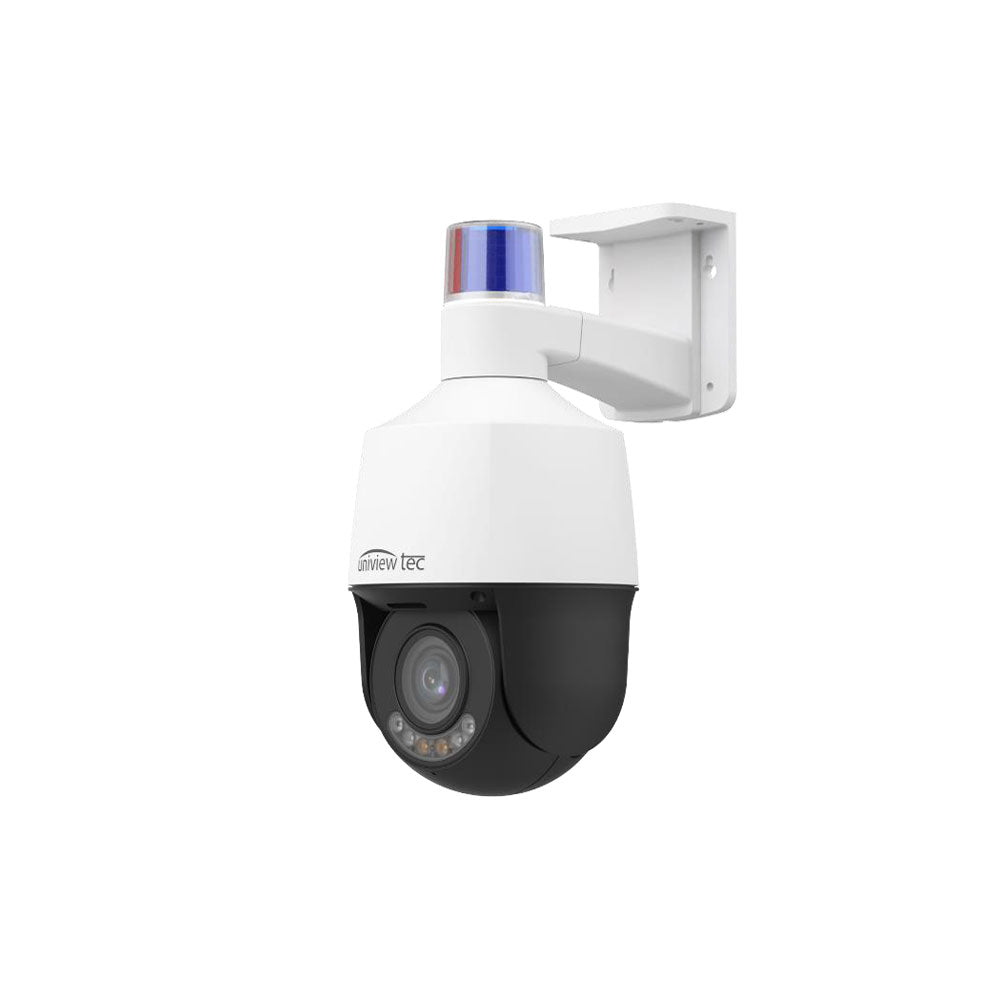

Uniview Tec IPCSDWI45X 4MP ColorHunter+ with Wise-ISP Active Deterrence Mini PTZ Camera

Uniview Tec IPCSDWI45X 4MP ColorHunter+ with Wise-ISP Active Deterrence Mini PTZ Camera

$739.00 USD
$985.33 USD $739.00 USD
Sale Sold out

Uniview Tec IPCSDWI45X 4MP ColorHunter+ with Wise-ISP Active Deterrence Mini PTZ Camera

Features:
  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Support ColorHunter+ with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
  • 2880 x 1620 @ 30fps in the main stream, 16:9 aspect ratio
  • Smart Intrusion Prevention with false alarm filtering, Cross Line Detection, and Intrusion Detection
  • Up to 120 dB WDR (Wide Dynamic Range)
  • Two-way Audio with Built-in Mic and Speaker
  • 40 m (131.23 ft) Warm Light Distance
  • DC 12V or PoE (IEEE 802.3at) Power Supply
  • Built-in Micro-SD Card Slot supports local storage up to 512GB and ANR
  • IP66 Weather-Resistant Housing with Optional Mounts Available
Specifications:
Camera Sensor 1/1.8" CMOS
Minimum Illumination Color: 0.0005 lux (F1.2, AGC ON)
True Day / Night IR-cut filter with auto switch (ICR)
Shutter Auto / Manual, 1 ~ 1/100000s
WDR 120dB
S/N Ratio >56dB
Lens 2.7 ~ 13.5mm
Optical / Digital Zoom 5x
Field of View (H) 113.69° ~ 50.29°
Field of View (V) 59.46° ~ 28.45°
Field of View (D) 156.23° ~ 59.34°
DORI Distance (2.7mm) Detect: 98.6 m (323.3 ft)
Observe: 39.4 m (129.3 ft)
Recognize: 19.7 m (64.7 ft)
Identify: 9.9 m (23.3 ft)
DORI Distance (13.5mm) Detect: 209.9 m (688.7 ft)
Observe: 84.0 m (275.5 ft)
Recognize: 137.7 m (451.7 ft)
Identify: 21 m (68.9 ft)
Illuminator Warm Light, Up to 40 m (131.2 ft)
IR On/Off Control Auto / Manual
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate 4MP (2560 x 1440) @25fps (Default)
4MP (2688 x 1520), Max 30fps
4MP (2560 x 1440), Max 30fps
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code / ROI Support
OSD Up to 8
Privacy Mask Up to 4 areas
Video Stream Triple streams
White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction 2D / 3D DNR
Smart IR Support
Flip Normal / Vertical / Horizontal / 180°
HLC Support
BLC Support
Defog Digital Defog
Smart Intrusion Prevention Support False Alarm Filtering: Cross Line Detection, Intrusion Detection (Human Body and Vehicle Detection)
Basic Detection Motion Detection, Audio Detection, Tampering Alarm
Auto Tracking Support, target filtering: human only
General Functions Watermark, IP Address Filtering, Alarm Input, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio Compression G.711U, G.711A
Audio Bitrate 128 Kbps
Two-way Audio Support
Audio Suppression Support
Sampling Rate 8 kHz, 16 kHz
Edge Storage Micro SD, up to 512GB
Network Protocols TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE,
RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs,
Basic & Digest Authentication for RTSP, Digest Authentication for HTTP,
TLS 1.2, WSSE and Digest Authentication for ONVIF
Client Software Guard Station, Guard Viewer, Guard Live
Web Browser Plug-in required live view:
IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Pan Range 0° ~ 345°
Pan Speed 1°/s ~ 50°/s
Tilt Range -10° ~ 100°
Tilt Speed 1°/s ~ 40°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets per patrol
Patrol Stay Time 120s ~ 1800s
Home Position Support
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]
1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O 1 / 1
Built-in Mic Support
Built-in Speaker Support
Network Interface 1 x RJ45 10M/100M Base-TX Ethernet
