Uniview Tec IPB5EC28X 5MP Easy ColorHunter Bullet Security Camera - IP67 Outdoor PoE CCTV with Smart IR and AI Motion Detection
Uniview Tec IPB5EC28X 5MP Easy ColorHunter Bullet Security Camera - IP67 Outdoor PoE CCTV with Smart IR and AI Motion Detection
Regular price
$239.00 USD
Regular price
$318.67 USD
Sale price
$239.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec IPB5EC28X 5MP Easy ColorHunter Bullet Security Camera - IP67 Outdoor PoE CCTV with Smart IR and AI Motion Detection

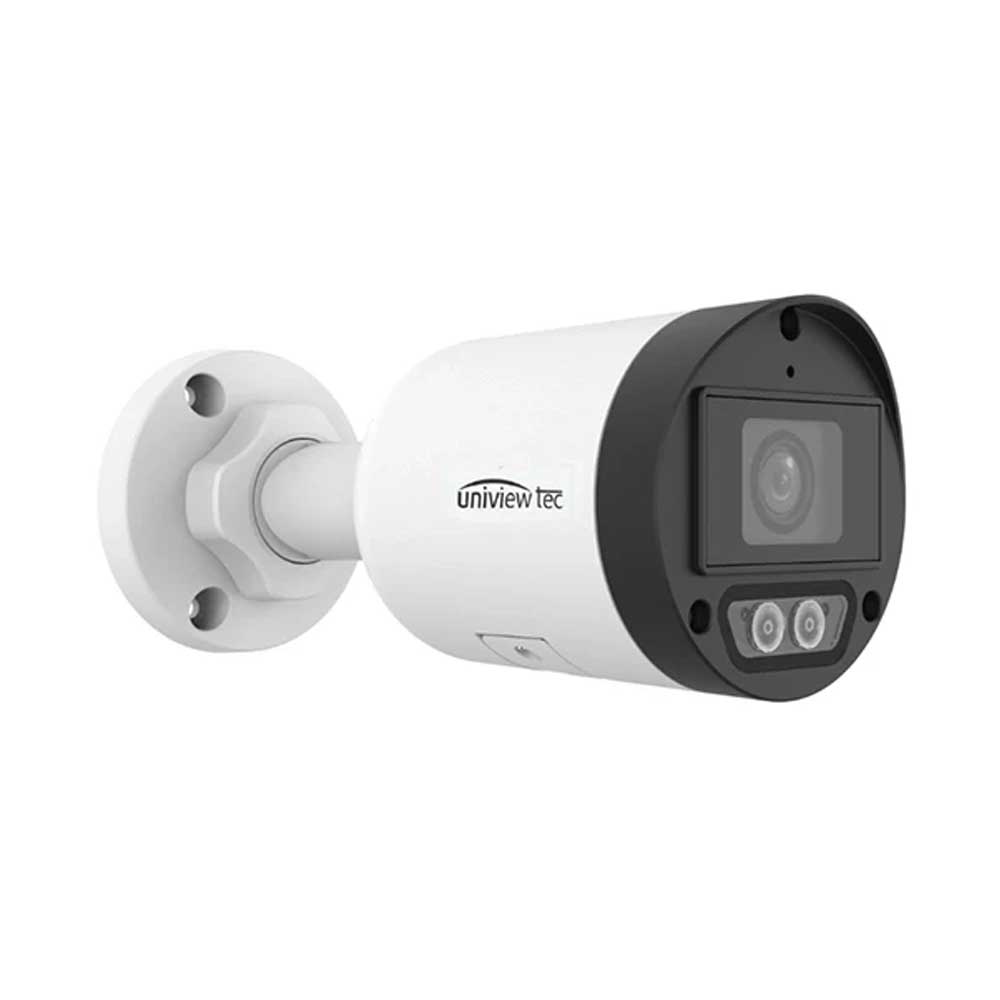

This efficient 5MP bullet camera combines Easy ColorHunter technology with digital WDR for reliable outdoor surveillance performance. Featuring a compact 1/3" CMOS sensor with F1.6 iris and 2.8mm fixed lens, this camera provides clear imaging with color visibility down to 0.01 lux and excellent wide-angle coverage. The digital WDR and Smart IR technology ensure consistent image quality, while advanced AI features including Ultra Motion Detection and human body detection provide intelligent monitoring capabilities. With ultra-low power consumption of only 2.8W and lightweight design at just 0.24kg, this IP67-rated bullet camera offers an ideal balance of performance and efficiency for professional outdoor surveillance installations requiring cost-effective yet reliable security monitoring.
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines.
- 5MP resolution with Easy Color Hunter technology for enhanced low-light performance.
- 2.8mm fixed lens with F1.6 iris providing 97° horizontal field of view
- Digital WDR (DWDR) for improved image quality in challenging lighting conditions
- Dual illumination: 30m IR and warm light range with Smart IR technology
- Advanced AI analytics with Ultra Motion Detection and human body detection
- H.265/H.264/MJPEG compression with 5MP @ 20fps recording capability
- Built-in microphone for audio recording and detection
- Comprehensive DORI analysis with detection up to 63m
- 3-axis adjustment: Pan 0°-360°, Tilt 0°-90°, Rotate 0°-360°
- IP67 weatherproof rating for outdoor installations.
- Ultra-low power consumption: only 2.8W maximum
- Ultra-lightweight design: 0.24kg (0.53lb) for easy installation
- PoE (IEEE 802.3af) and 12V DC power compatibility
- ONVIF Profile S, G, T compliant with API and SDK support
- Edge storage support with microSD up to 128GB and ANR/NAS compatibility
- Advanced security with password protection and encryption
- Multiple image enhancements: HLC, BLC, Digital Defog, 2D/3D DNR
- Compact dimensions: 161.4 x 66.1 x 66.3mm (6.3" x 2.6" x 2.6")
Specifications:
| Camera | |
|---|---|
| Image Sensor | 1/3.0" CMOS |
| Minimum Illumination | Color: 0.01 lux (F1.6, AGC ON); 0 lux with IR |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto / Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0°-360°, Tilt: 0°-90°, Rotate: 0°-360° |
| S/N Ratio | >52dB |
| WDR | DWDR |
| Lens | |
| Focal Length | 2.8mm |
| Iris | F1.6 |
| Field of View (H) | 97.0° |
| Field of View (V) | 52.2° |
| Field of View (D) | 107.5° |
| DORI Analysis (2.8mm) | |
| Detect | 63.0m (206.7ft) |
| Observe | 25.2m (82.7ft) |
| Recognize | 12.6m (41.3ft) |
| Identify | 6.3m (20.7ft) |
| Illuminator | |
| IR Distance | 30m (98ft) |
| Warm Light Distance | 30m (98ft) |
| Wavelength | 850nm |
| IR Control | Auto / Manual |
| Video | |
| Compression | H.265, H.264, MJPEG |
| H.264 Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 5MP (2880x1620) @20fps; 4MP @25fps; 3MP @30fps; 1080P @30fps; 720P @30fps Sub Stream: D1 / 640x360 / 2CIF / CIF @30fps |
| Video Bitrate | 128 Kbps ~ 6144 Kbps |
| U-code | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Streams | Dual Streams |
| Image Enhancement | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Noise Reduction | 2D / 3D DNR |
| Smart IR | Supported |
| Flip | Normal, Vertical, Horizontal, 180°, 90° CW, 90° CCW |
| HLC / BLC | Supported |
| Defog | Digital Defog |
| Events & Detection | |
| Detection | Ultra-Motion Detection, Motion Detection, Tampering Alarm, Audio Detection, Human Body Detection |
| Audio | |
| Compression | G.711U, G.711A |
| Bitrate | 64 Kbps |
| Sampling Rate | 8 kHz |
| Built-in Microphone | Supported |
| Storage & Network | |
| Edge Storage | Micro SD up to 128GB |
| Network Storage | ANR, NAS (NFS) |
| Network Interface | 1 x RJ45 10/100 Mbps |
| Protocols | IPv4/IPv6, TCP/IP, RTSP, HTTPS, ONVIF, FTP, SMTP, SSL/TLS, SNMP |
| Integration | ONVIF (S/G/T), API, SDK |
| Users | Up to 32 users (Admin / Common) |
| Client Software | Guard Live, Guard Viewer, Guard Station |
| General | |
| Power | DC 12V ±25%, PoE (802.3af), Max 2.8W |
| Dimensions | 161.4 x 66.1 x 66.3mm (6.3 x 2.6 x 2.6 in) |
| Weight | 0.24kg (0.53lb) |
| Material | Metal + Plastic |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), ≤95% RH |
| Protection | IP67, 4KV Surge Protection |
