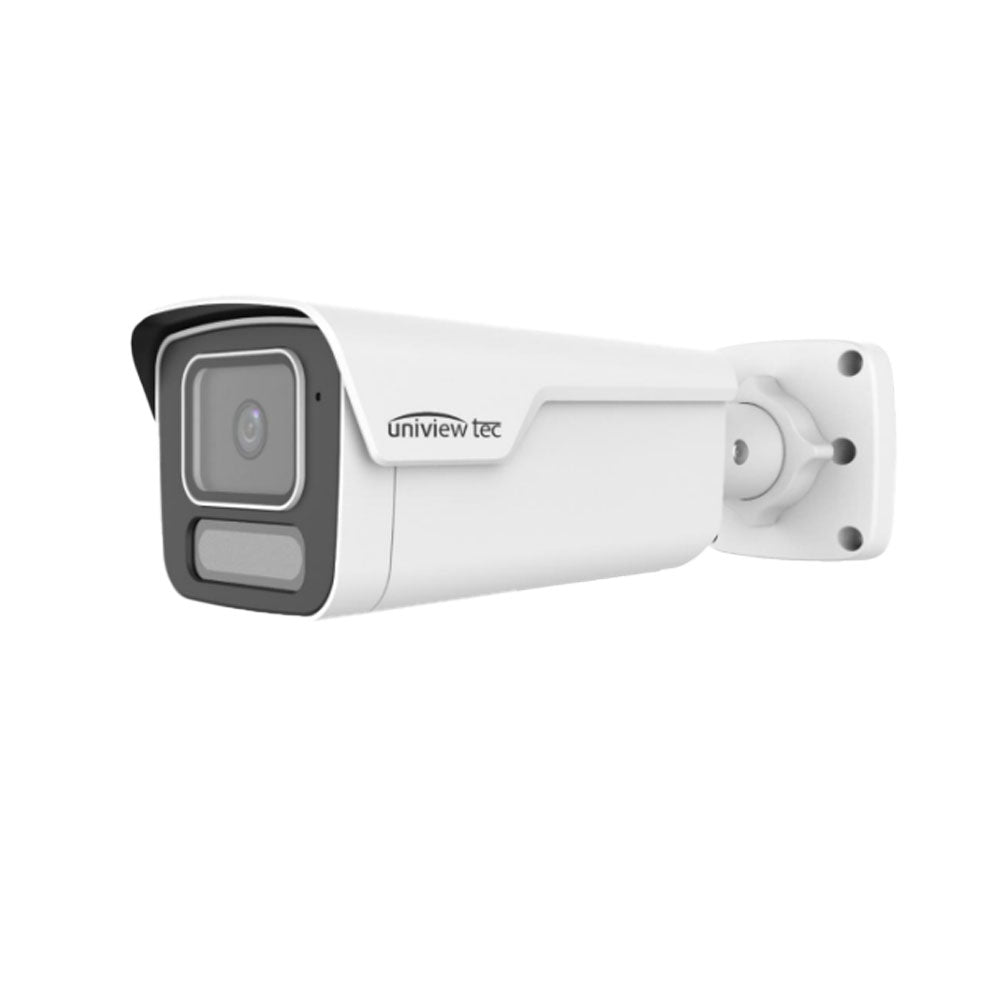

Uniview Tec IPB4WI28AIX 4MP ColorHunter AI Bullet Security Camera - Wise-ISP - WDR - Full-Color Night Vision - Smart Intrusion Detection
Uniview Tec IPB4WI28AIX 4MP ColorHunter AI Bullet Security Camera - Wise-ISP - WDR - Full-Color Night Vision - Smart Intrusion Detection
Regular price
$489.00 USD
Regular price
$635.06 USD
Sale price
$489.00 USD
Unit price
per
Couldn't load pickup availability
Uniview Tec IPB4WI28AIX 4MP ColorHunter AI Bullet Security Camera - Wise-ISP - WDR - Full-Color Night Vision - Smart Intrusion Detection
Features:
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- ColorHunter+ (Wise-ISP) technology ensures ultra-high color image up to 0.0003 Lux
- Exceptional Video Quality with 4MP, 2560 x 1440 Resolution
- H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful White Light Operation up to 131 Feet
- 2.8mm Fixed Lens; ONVIF Profile S Compliant
- Exceptional Night Time Color Image and WDR functionality
- Triple Video Streams, Built-in mic, Smart Illumination, Digital Defog and 3D DNR
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles; people counting & color retrieval
- PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- 3-Way Axis, CE and IP67 Weather Resistant
- Supported by uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile App's for iPhone and Android Devices
Specifications:
| Max Resolution | 4MP |
| Sensor | 1/1.8" CMOS |
| Minimum Illumination | Color: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0°-360°, Tilt: 0°-90°, Rotate: 0°-360° |
| S/N | >56 dB |
| WDR | 130 dB |
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 110.4° |
| Field of View (V) | 60.5° |
| Field of View (D) | 115.2° |
| DORI Detect | 43.4 m (142.5 ft) |
| DORI Observe | 17.4 m (57.0 ft) |
| DORI Recognize | 8.7 m (28.5 ft) |
| DORI Identify | 4.3 m (14.3 ft) |
| Illumination Distance (Warm Light) | 40 m (131.2 ft) |
| Light On/Off Control | Auto/Manual |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline, Main, High |
| Frame Rate | Main Stream: 4MP/1080P/720P/D1/640x360/2CIF/CIF @30fps Sub Stream: 1080P/720P/D1/640x360/2CIF/CIF @30fps Third Stream: D1/640x360/2CIF/CIF @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD / Privacy Mask | 8 OSD; 4 Privacy Masks |
| ROI | Support |
| Video Stream | Triple Streams |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Noise Reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | Normal, Vertical, Horizontal, 180°, 90° CW/CCW |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Smart Intrusion Prevention | Cross line, Intrusion, Enter/Leave area (human, vehicle, non-motor) |
| People Counting | Flow counting & crowd density |
| Attribute Collection | SIP with color retrieval |
| Basic Detection | Motion, Ultra Motion, Tampering, Audio Detection, Object Removed, Object Left Behind |
| General Function | Watermark, IP Filtering, Access Policy, ARP Protection, RTSP/HTTP Authentication, Alarm I/O |
| Audio Compression | G.711U; G.711 |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Sampling Rate | 8 KHz |
| Edge Storage | Micro SD up to 512GB |
| Network Storage | ANR; NAS (NFS) |
| Protocols | IPv4/IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP/RTSP/RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP/HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF S/G/T; API; SDK |
| User/Host | Up to 32 users, 3 levels |
| Security | Password, HTTPS, TLS1.2, Logs, RTSP/HTTP Digest Auth, WSSE |
| Client | Guard Live, Guard Viewer, Guard Station |
| Web Browser | IE10+, Chrome 45+/57+, Firefox 52+/58+, Edge 16+/79+ |
| Audio I/O | 1 In (35 kΩ, 2V p-p), 1 Out (600 Ω, 2V p-p) |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Network | 1 x RJ45 10/100M Ethernet |
| Certifications | CE, FCC, UL/CUL, CB, RoHS, WEEE |
| Protection | IP67, IK10 |
| Power | DC 12V±25%, PoE (802.3af), Max 4.5W |
| Power Interface | Ø5.5mm coaxial plug |
| Dimensions | 265.2 x 95.2 x 82.9 mm (10.4" x 3.7" x 3.3") |
| Weight | 0.89 kg (1.96 lb) |
| Material | Metal + Plastic |
| Environment | -30°C ~ 60°C (-22°F ~ 140°F), ≤95% RH |
| Surge Protection | 4KV |
| Reset Button | Support |
