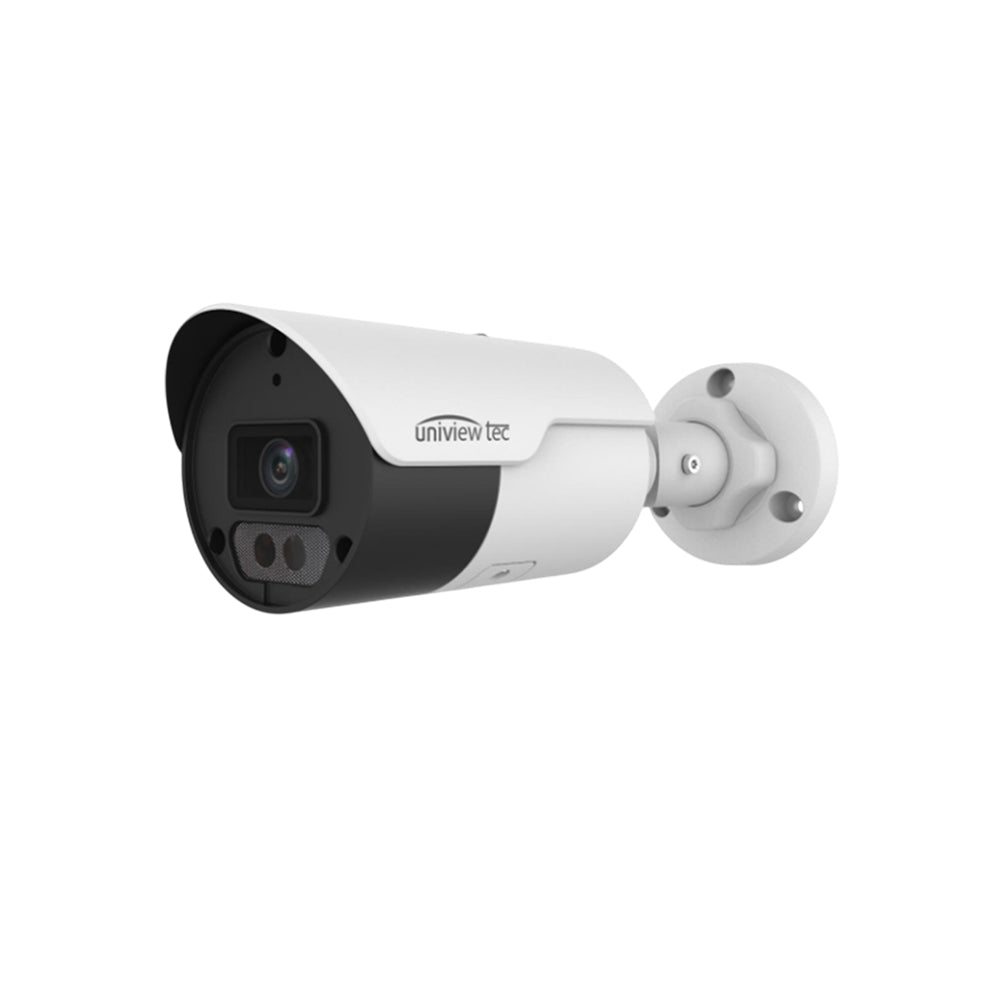

Uniview Tec IPB4ES28X 4MP Easy Star IR Bullet IP Camera with HLC, WDR and IR Night Vision

Uniview Tec IPB4ES28X 4MP Easy Star IR Bullet IP Camera with HLC, WDR and IR Night Vision

$299.00 USD
$427.14 USD $299.00 USD
Sale Sold out

Uniview Tec IPB4ES28X 4MP Easy Star IR Bullet IP Camera with HLC, WDR and IR Night Vision

Features:
  • NDAA-compliant design meets National Defense Authorization Act requirements
  • Easy Star illumination delivers ultra-clear color images in low light up to 0.005 Lux (F1.6)
  • High-resolution 4MP (2688 x 1520) video for sharp and detailed monitoring
  • H.265 video compression reduces bandwidth usage and storage costs
  • Smart IR LEDs provide clear night vision up to 164 ft (50 m)
  • Supports ONVIF Profile S for seamless system integration
  • True Day/Night switching with WDR for balanced images in all lighting conditions
  • Dual streams, built-in microphone, Smart IR, 3D DNR, and Digital Defog supported
  • Intelligent human and vehicle detection reduces false alarms
  • Supports PoE or 12V DC power with optional wall and pendant mounts
  • Built-in Micro SD card slot supports local storage up to 512 GB
  • 3-axis adjustable mount with IP67-rated weather resistance
  • Compatible with Uniview Guard Station, Guard Live, and Guard Viewer mobile apps
Specifications:
Camera Type IP Bullet Camera
Max Resolution 4MP
Image Sensor 1/3.0" CMOS
Minimum Illumination Color: 0.003 lux (F1.6, AGC ON); 0 Lux with IR on
Day / Night IR-cut filter with auto switch (ICR)
Shutter Speed Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0°-360°, Tilt: 0°-90°, Rotate: 0°-360°
Signal to Noise Ratio >52 dB
WDR 120 dB
Lens 2.8 mm Fixed Lens, F1.6
Field of View H: 97.0° | V: 52.2° | D: 107.5°
DORI Distance (2.8mm) Detect: 63.0 m | Observe: 25.2 m | Recognize: 12.6 m | Identify: 6.3 m
IR Illumination IR, 850 nm, up to 50 m (164 ft)
Video Compression H.265 / H.264 / MJPEG
Frame Rate 4MP @25fps (2688x1520 / 2560x1440); 3MP @30fps; 1080P @30fps; 720P @30fps
Video Bit Rate 128 Kbps ~ 6 Mbps
U-code Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 Areas
ROI Supported
Video Stream Dual Streams
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Noise Reduction 2D/3D DNR
Smart IR Supported
Image Flip Normal, Vertical, Horizontal, 180°, 90° CW, 90° CCW
HLC Supported
BLC Supported
Defog Digital Defog
Motion Detection Motion, Ultra Motion, Tampering, Audio, Line Crossing, Intrusion (Human Detection)
Audio Built-in Microphone, G.711 / G.711U
Audio Bitrate 64 Kbps
Sampling Rate 8 kHz
Edge Storage Micro SD card up to 512 GB
Network Storage ANR, NAS (NFS)
Network Protocols IPv4, TCP, UDP, RTSP, HTTP, HTTPS, ONVIF (S/G/T), SNMP, QoS
Max Users 32 Users
Security HTTPS, TLS 1.2, Strong Password, Authentication, Logs
Network Interface 1 x RJ45 10/100 Mbps Ethernet
Power Supply DC 12V ±25% or PoE (IEEE 802.3af)
Power Consumption Max 5.6W
Protection Rating IP67
Operating Temperature -30°C to 60°C (-22°F to 140°F)
Dimensions 190 x 73 x 71 mm (7.5 x 2.9 x 2.8 in)
Weight 0.40 kg (0.88 lb)
Material Graphene + Metal
Certifications CE, FCC, UL, RoHS, WEEE
Surge Protection 4KV
Reset Button Supported
