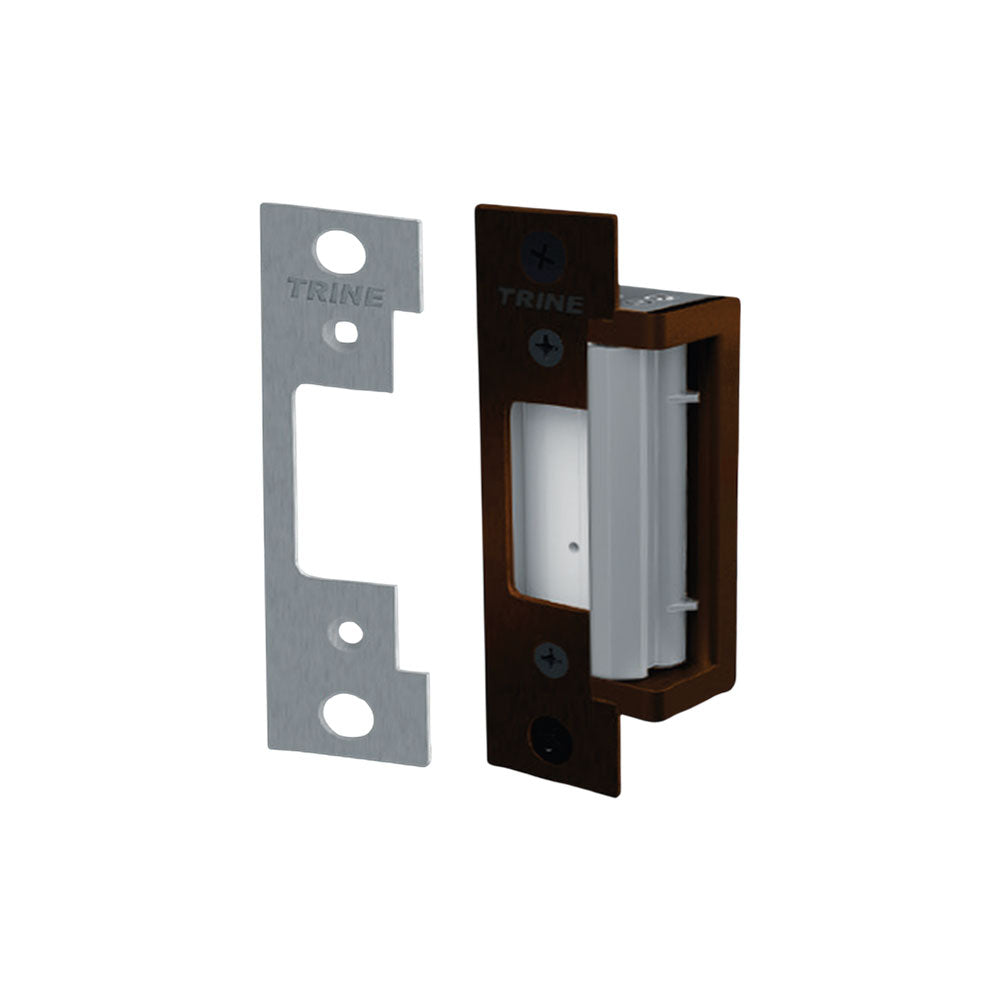

Trine - 4300CC - Electric Strike Kit with 2 Faceplates - Trim Skirts - 12/24V AC/DC - Grade 1 - Dark Bronze & Satin Stainless Steel

Trine - 4300CC - Electric Strike Kit with 2 Faceplates - Trim Skirts - 12/24V AC/DC - Grade 1 - Dark Bronze & Satin Stainless Steel

Features:

• 1/4" Horizontal Adjustment: The 4300 electric strike includes a full 1/4" horizontal adjustment for precise alignment. Competing models often require purchasing a higher-priced strike to achieve the same flexibility.
• 1-1/16" Shallow Backset: Designed to solve depth limitations, making it ideal for glass storefronts and other shallow jamb applications.
• Low Current Draw: Draws only 0.240 Amp at 12V DC, making it highly PoE-friendly. Supports 12 & 24V DC as well as 12-24V AC for maximum installation flexibility.
• Matching Trim Skirt Included: The included trim skirt conceals installation gaps or jamb irregularities and is finished to match the electric strike.
• Auxiliary Latchpin Solution: The 4300 electric strike latch is engineered to resolve auxiliary latchpin issues commonly found in other electric strikes.
• Standard Cutout Specification: Meets ANSI A115.1 cutout specifications with slight jamb modification.

**This is the replacement of 4200CC.

Download:

• Installation Instruction
