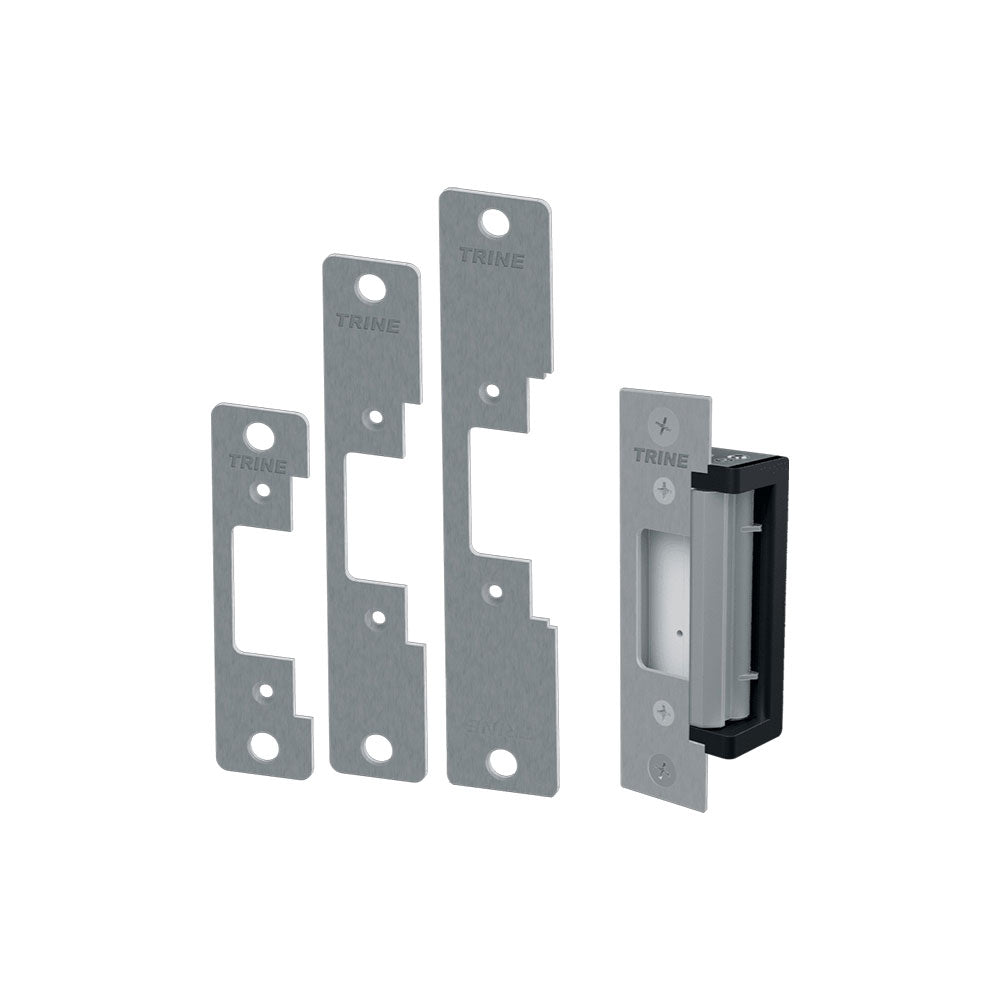

Trine - 4300 Electric Strike for Cylindrical Locks and Deadlatches with 4 Faceplates - Grade 1

Trine - 4300 Electric Strike for Cylindrical Locks and Deadlatches with 4 Faceplates - Grade 1

Includes the 4 most used faceplates to make specifying and installing this electric strike easy on any frame, especially aluminum.

Features:

• 1/4" Horizontal Adjustment - The 4300 has a great 1/4" horizontal adjustment included. Some competitor models require you to buy a more expensive model to get the same flexibility.
• Four popular faceplates included - including the 4 most used faceplates for cylindrical locks and deadlatches.
• 1-1/16" Shallow backset - the electric strike solves depth problems, as with glass store fronts.
• Low Current Draw - .240 Amp at 12DC makes it very PoE Friendly 12 and 24DC : 12 through 24 AC. All the low voltage and amperage flexibility you need.
• The included trim skirt covers any gaps or irregularities on an install. Plus it matches the strike finish.
• The 4300 electric strike latch solves the auxiliary latchpin problems many other electric strikes run into.

Electric Strike Standards:

• WH recognized for UL1034 Burglary Resistant.
• WH recognized for UL294 (6th Edition) listed.
• ANSI A156.5 - 1992 - 4-7/8" x 1-1/4" Fits
• Grade 1 electric strike.

Specifications:

Downloads:

• Specifications Sheet
• Installation Instructions
