Trans-Atlantic GAL Series Grade 2 Commercial Lever

Trans-Atlantic GAL Series Grade 2 Commercial Lever

$56.04 USD
$72.85 USD $56.04 USD
Sale Sold out
Clutch Style
Function

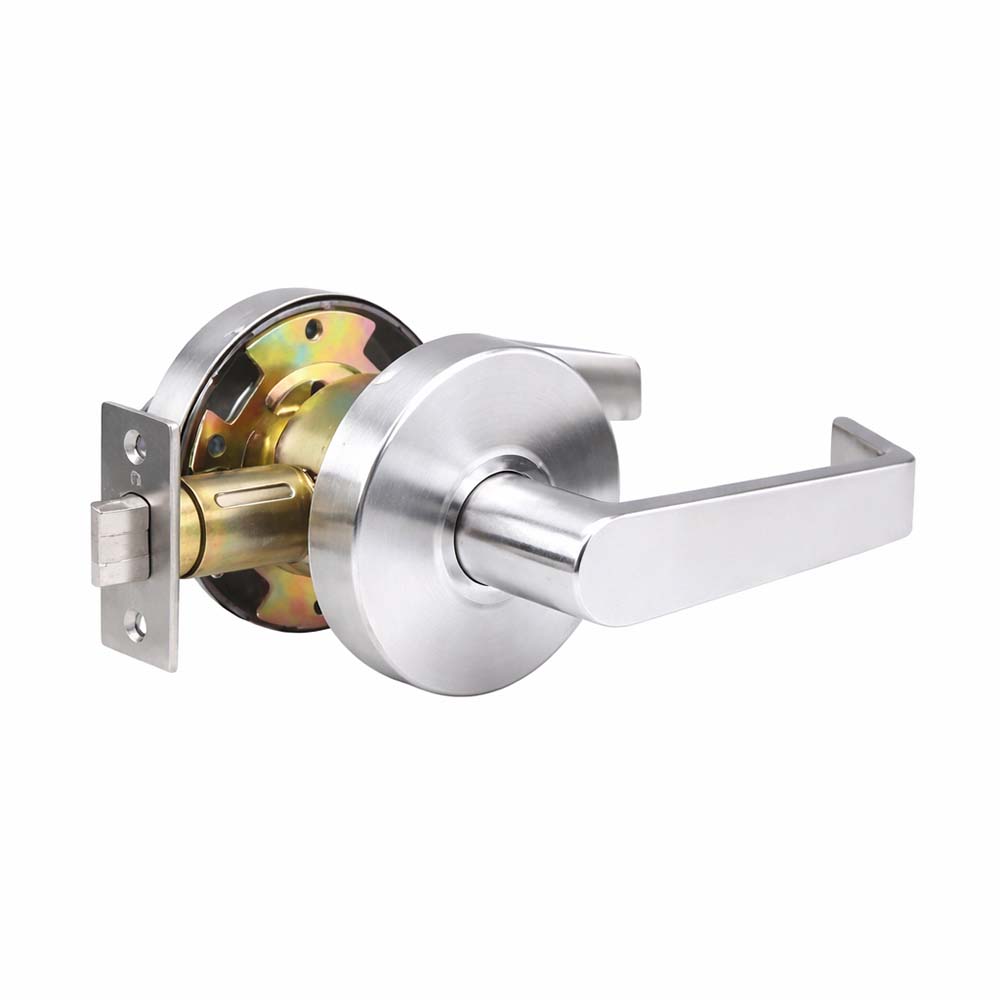

Trans-Atlantic GAL Series Grade 2 Commercial Lever

The GAL Series cylindrical commercial leverset has all the same specifications as the GLA knobset with the added trim design of a door lever. The GAL commercial lever is also ADA compliant and features a FREE WHEELING CLUTCH mechanism that ensures longevity and security.

Specifications:
  • Door thickness: Adjustable 1 3/8" - 1 3/4" range
  • Backset: 2 3/4"
  • Cylinder: SC1 solid brass "C" keyway
  • Keying: Schlage 6 pin keyed six KD
  • Key: 2 six-pin nickel-plated
  • Entry Levers Trim Design: Specify "L" Eiffel, "P" Pisa
  • Certification: UL listed ANSI A156.2 Grade 2
  • Construction: Steel, zinc dichromated resists corrosion, heavy-duty spring cage reinforced for lever return
  • Latch: 5/8" projection stainless steel 3-hour UL
  • Bore: 2 1/8" hole retrofits all grade 2 cylindrical locksets
  • Thru-bolted: 5/16" holes outside 2 1/8" bore for anti-rotation
  • Vandal Resistant: Clutch-free wheeling mechanism
  • Strike: ANSI 1 1/4" x 4 7/8" curved lip
  • Door Lever Warranty: Lifetime mechanical - 10 year finish
  • Entry Lever Finish: 626-Brushed Chrome
Available Options:
  • IC - Small format Figure 8 Interchangeable Core NOT included
  • 2-3/8" backset, Deadlatch
  • 2-3/8" backset, Springlatch
  • GLA001 - 1 1/8" x 2 3/4" "T" Strike
  • 2 keys per cylinder
  • KD: Keyed Different
  • KA: Keyed Alike
  • KA2: Keyed Alike; groups of 2
  • Keyways: SC5
