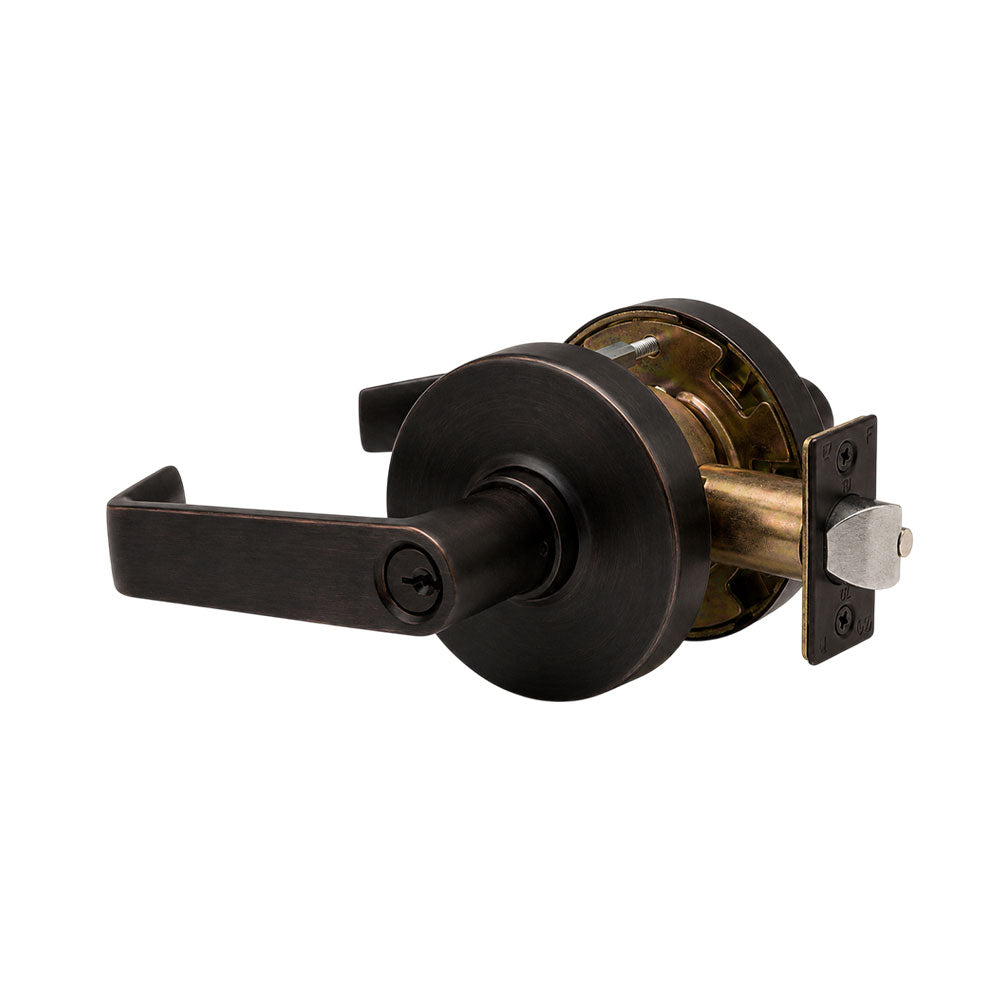

Trans-Atlantic - DL-LHV Series - Heavy Duty Lever - Grade 1 - US10B (Oil Rubbed Bronze)

Trans-Atlantic - DL-LHV Series - Heavy Duty Lever - Grade 1 - US10B (Oil Rubbed Bronze)

The DL-LHV series cylindrical leverset are designed for use on all heavy duty Grade 1 commercial applications. The DL-LHV series is also ADA compliant and features a free wheeling clutch mechanism option that ensures longevity and security. Solid zinc diecast.

Specifications:

• Door Thickness: 1-3/4" - 2"
• Backset UL Listed: 2-3/4" - face 1-1/8"- 2-1/4"
• Cylinder: Schlage "C" keyway
• Keying: Schlage 6 pin keyed
• Key: 2 six pin nickel plated
• Certification: UL listed ANSI A156.2 Grade 1
• Latch: 5/8" projection stainless steel 3 hour UL
• Bore: 2-1/8" hole retrofits all cylindrical locksets
• Strike: ANSI 1-1/4" - 4-7/8" strike
• Non-handed and reversible
• Vandal Resistant: Clutch free wheeling mechanism option
• Warranty: Lifetime mechanical. 10 year finish.

Keying Options:

(additional charges may apply)

• 2 keys per cylinder
• KD: Keyed Different
• KA: Keyed Alike
• KA2: Keyed Alike; groups of 2
• KEYWAYS: SC6

Download:

• Installation Instruction
• Installation Instruction 2
