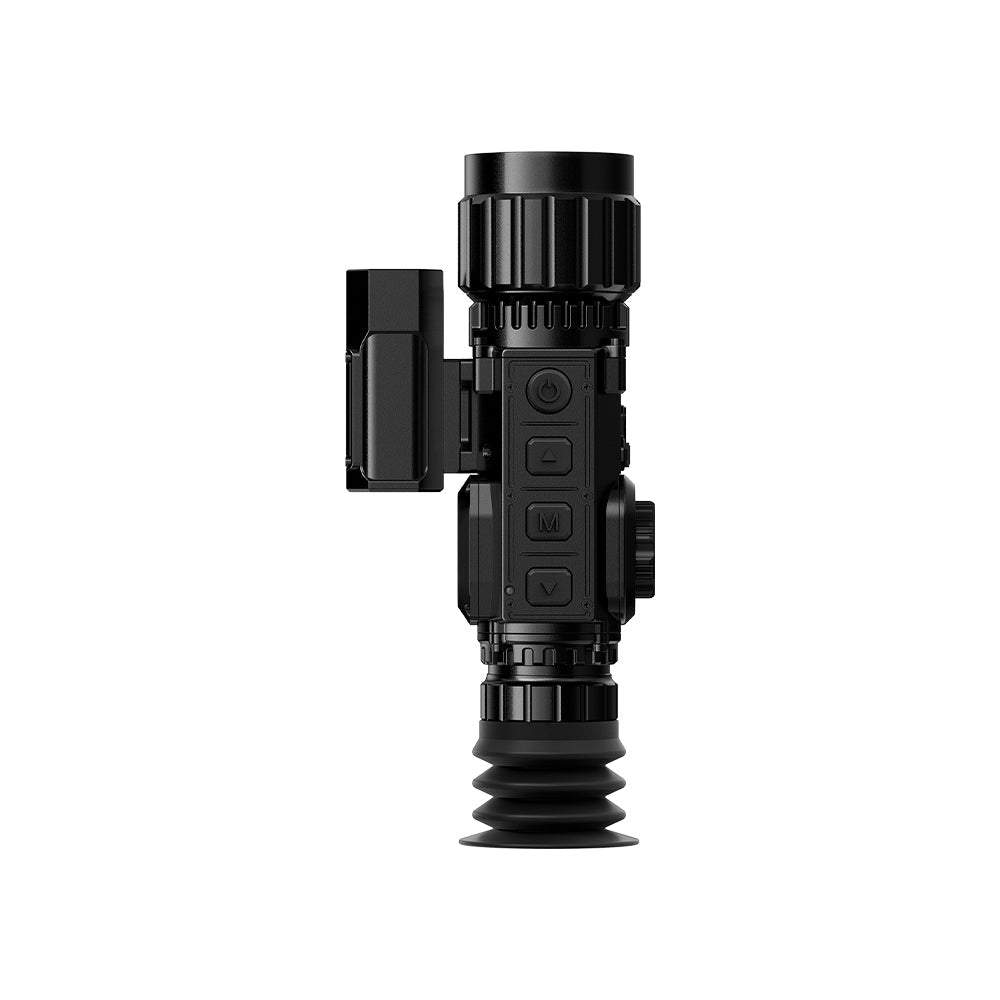

TOPDON TS006 Thermal Imaging Scope-35mm
TOPDON TS006 Thermal Imaging Scope-35mm
Regular price
$1,899.00 USD
Regular price
$2,855.71 USD
Sale price
$1,899.00 USD
Unit price
per
Couldn't load pickup availability
TOPDON TC002CDUO Duo Thermal Imaging Camera for iOS, Android and USB-C Devices
The TOPDON TS006 Thermal Monocular is a rugged, high-performance tool designed for nighttime hunters and outdoor professionals. Featuring a 35mm fixed lens and a 384x288 uncooled VOx sensor, it provides crisp thermal imagery even in total darkness. Capture real-time video, transmit images via WiFi, and rely on its durable, shock-resistant design for accurate and silent operation. Whether tracking wildlife, surveying terrain, or performing nighttime inspections, the TS006 gives you a clear advantage in low-light conditions.
Features:
- High-Resolution Thermal Sensor
- Fixed 35mm Lens
- OLED Display
- Real-Time Video Recording
- Laser Rangefinder
- Selectable Viewing Modes
- Built-In WiFi
- Field-Rugged Design
- Full Kit Included
Technical Specifications:
| System | Linux |
| Operating System | Linux |
| Battery Capacity | Replaceable Battery, 16340 x 4, 2100mAh |
| Display Screen | 0.39 inch HD AMOLED display, 1024x768 |
| Operating Voltage | 5V |
| Battery Life | 4h |
| Storage | 64GB memory |
| LED Flashlight / Laser Range Finder | Up to 1064yd (1km) |
| Detection Distance | 1400yd (1280m) |
| Infrared Light Resolution | 384x288 |
| Focal Range | 35mm (Adjustable) |
| Field of View (FOV) | 7.5° x 5.6° |
| Spectral Range | 12μm |
| NETD | ≤40mK |
| Frame Rate | 50Hz |
| AI Algorithm | Image Algorithm |
| Professional Function | Outdoor Professionals and Hunters |
| Digital Zoom | 1x / 2x / 4x / 8x, manual focus for low myopia |
| Image Modes | Thermal Imaging, Pseudo Color Bar (iron red, white hot, black hot, rainbow, red hot) |
| Video Recording / Transfer | Video recording, transfer via USB |
| WiFi | Android Devices Only |
| Visible Light Camera Lens | Included |
| High/Low Temperature Alarms | Included |
| Operating Temperature | -20°C to °C (-4°F to 131°F) |
| Tripod Screw Hole | Included |
| Drop, Impact, and Vibration | Shock rated to 1000g |
| IP Rating | IP65 |
| Certifications | UN38.3, DGM, CE, FCC, RoHS, UKCA |
| Gross Weight | 1250g |
| Device Weight | 600g (1.32 lbs) |
| Package Size | 270 x 210 x 130 mm |
| Languages Supported | 13 languages: English, Chinese, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Dutch, Czech, Ukrainian |
| Software Updates | Connect to PC with a USB type-C cable |
Package Contents:
- TS006 Thermal Imaging Scope
- Picatinny Mount
- Carrying Bag
- User Manual
- USB Cable
- Video Cable
- 16340 Battery x 8
- Battery Charger
