TOPDON

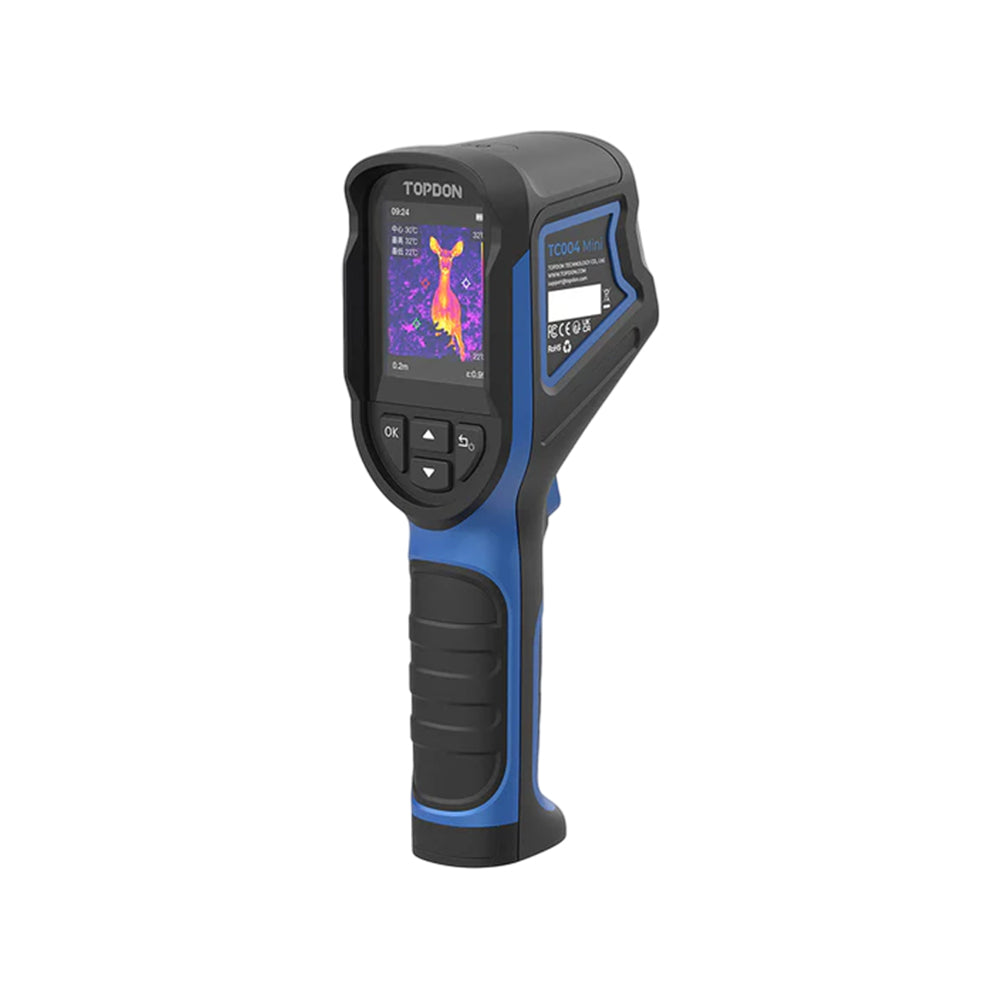

TOPDON TC004MINI Handheld Thermal Camera With 15-Hour Runtime
TOPDON TC004MINI Handheld Thermal Camera With 15-Hour Runtime
Regular price
$149.00 USD
Regular price
$212.86 USD
Sale price
$149.00 USD
Unit price
per
Couldn't load pickup availability
TOPDON TC004MINI Handheld Thermal Camera With 15-Hour Runtime
The TC004 Mini is a compact handheld thermal camera with TISR technology, upscaling 128x128 to 240x240 for clear, detailed images. Perfect for HVAC, electrical, and leak inspections.
Features:
- Enhanced Resolution: TISR technology upgrades 128x128 to crisp 240x240 thermal images at 25Hz.
- Long Battery Life: 2,900mAh battery with up to 15 hours runtime and customizable auto-off.
- Smart Alerts: Automatic detection of max, min, and center temperatures with visual warnings.
- Rugged Design: IP54-rated and withstands drops up to 6.6ft (2m).
- Compact & Lightweight: Ergonomic design for easy handheld use anywhere.
- Wide Temperature Range: Measures -4°F to 842°F (-20°C to 450°C) with ±3.6°F (±2°C) accuracy.
- Adjustable Measurements: Customize emissivity, distance, and environment for precise results.
- Multiple Color Modes: White Hot, Black Hot, Iron, Rainbow, Red Hot for various scenarios.
- Versatile Applications: Ideal for HVAC, electrical, water leak, industrial, automotive, and home energy inspections.
Specifications:
| IR Resolution | 128x128, improved to 240x240 by TISR |
| Measurement Range | -4 - 842°F (-20 - 450°C) |
| Refresh Rate | 25Hz |
| Spectral Range | 8 to 14µm |
| FOV | 40° x 30° |
| Focal Length | 3.2 mm |
| NETD | Lessthan 40 mK |
| Memory | 512MB |
| Battery Life | 15h |
| Battery Type | 2,900mAh built-in battery |
| Protection Level | IP54 |
Box Includes:
- TC004 Mini Thermal Camera
- USB-A to USB-C Cable
- Hanging Strap
- Quick User Guide
