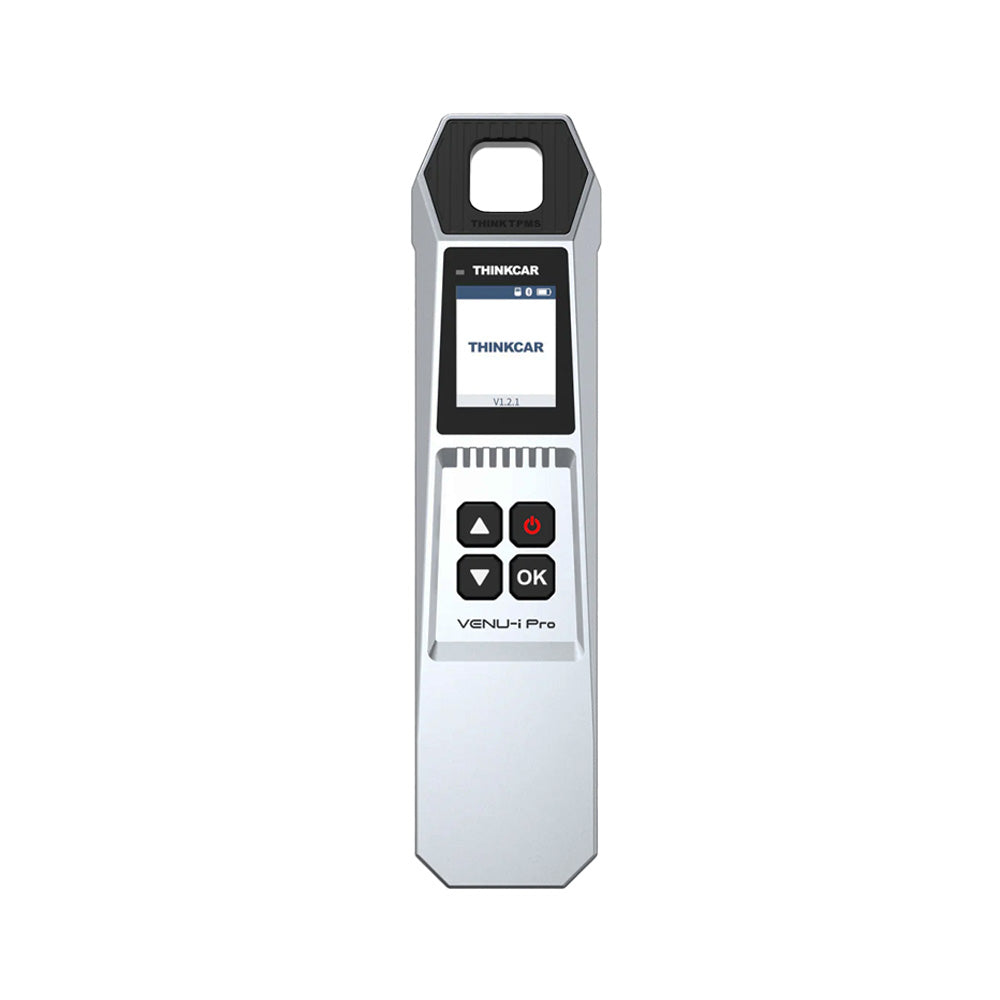

THINKCAR THINKTPMS VENU iPro - Intelligent TPMS Diagnostic Tool

THINKCAR THINKTPMS VENU iPro - Intelligent TPMS Diagnostic Tool

The THINKCAR VENU-iPro is an advanced TPMS (Tire Pressure Monitoring System) diagnostic tool from THINKCAR. It is engineered to integrate with the i-VENU Mobile App or the THINKTOOL Series, providing sensor activation, programming, and learning capabilities, offering a complete solution for tire pressure sensor management. This device accommodates dual-frequency TPMS sensors (315MHz-433MHz) and is compatible with Android devices.

Features:

• Dual Frequency: Activate 315MHz-433MHz dual-frequency tire pressure sensor
• Mobile APP: Tire pressure diagnosis through the i-VENU mobile APP
• Used with a THINKCAR diagnostic tool
• OE-Level Diagnostics: Perform tire pressure sensor activation, programming and learning

Technical Details:

• Model: VENU-iPro
• Dimensions: (mm) 192x60x31
• Bluetooth: Dual Mode 4.2
• Battery: 2000mAh/3.7V
• Screen: 1.77 inches
• Resolution: 128x160
• Upgrade Method: Firmware upgrades via connection to a diagnostic tool or mobile app
• Accessories: Type-C Cable (1 meter), User Manual
• Operating Temperature: -10°C~50°C/14°F~122°F
• Storage Temperature: -20°C~60°C/-4°F~140°F
• Certifications: CE, FCC, ROHS, IC, CP65

Video:

Download:

• Venu-i Pro User Manual
