THINKCAR

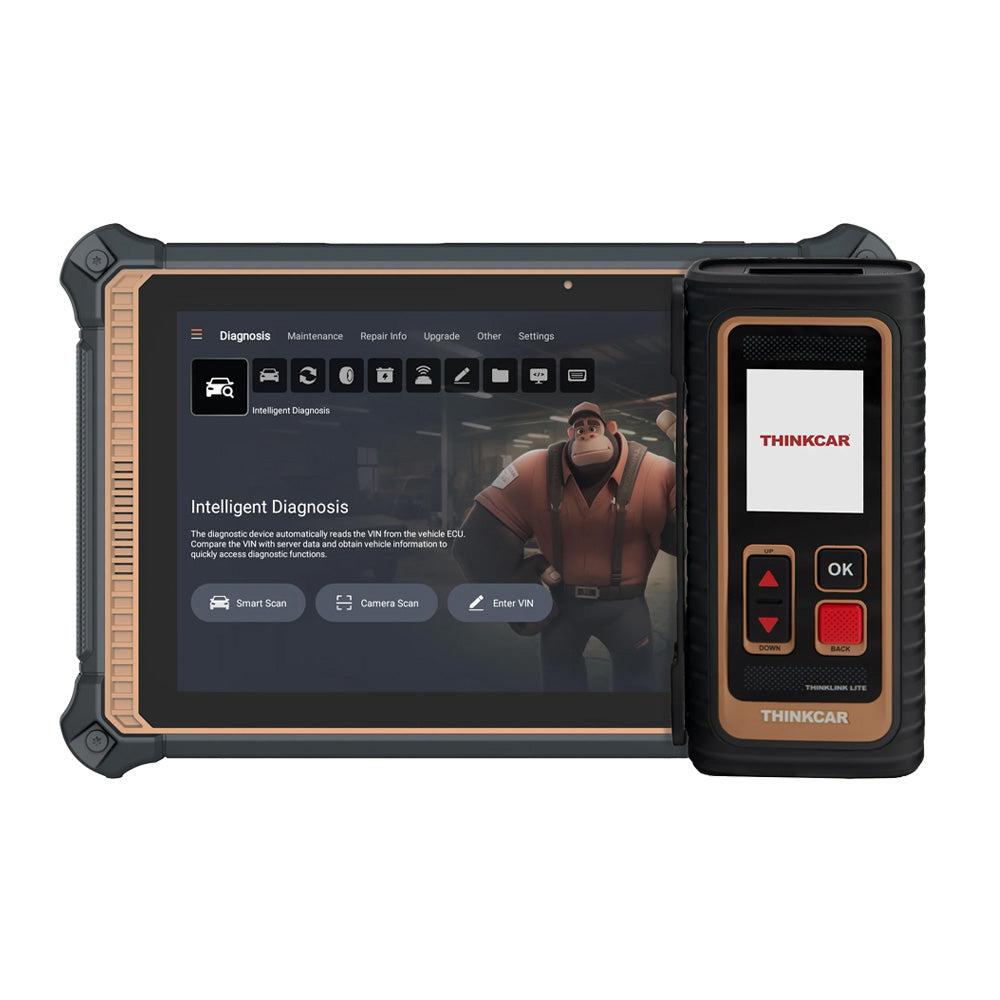

THINKCAR PLATINUM 391 - 10 inch OBD2 Full System Diagnostic Scanner with Maintenance Reset Functions
THINKCAR PLATINUM 391 - 10 inch OBD2 Full System Diagnostic Scanner with Maintenance Reset Functions
Regular price
$1,699.95 USD
Regular price
$1,869.95 USD
Sale price
$1,699.95 USD
Unit price
per
Couldn't load pickup availability
THINKCAR PLATINUM 391 - 10 inch OBD2 Full System Diagnostic Scanner with Maintenance Reset Functions
The THINKCAR Platinum 391 is a next-generation 10-inch professional diagnostic tablet powered by the new TCOS system with online programming capabilities. It supports over 120 passenger vehicle makes and includes 3 years of free software updates, along with optional EV and Heavy Duty packages. Designed for professional shops and advanced technicians, it features CAN FD, DoIP, and J2534 protocols to provide comprehensive coverage for modern vehicles.
Features:
- 10-Inch HD Touchscreen with New TCOS Operating System
- Online Programming & ECU Coding Capabilities
- Supports 120+ Passenger Makes | 3 Years Free Software Updates Included
- CAN FD, DoIP & J2534 Protocol Support for Modern Vehicles
- Optional EV Package (70+ EV Brands) & HD/HML Package (150+ Brands)
- Wi-Fi One-Click Updates | THINKLINK Lite VCI Wireless Connection
- 42 Maintenance Reset Functions | Bi-Directional Active Tests
Specifications:
| Specification | Details |
|---|---|
| Maintenance Resets | 42 |
| Read & Clear DTCs | Yes |
| VIN Identification | Yes |
| OBD2 & EOBD | Yes |
| Live Data | Yes - Live Data Stream + Graphing |
| Bi-Directional Control | Yes - Active Tests (Tool/Vehicle Dependent) |
| Topology | Yes - Topology Mapping Supported |
| ADAS | Supported (Calibration frame/software may be required) |
| TPMS | Supported (May require optional TPMS tools/modules) |
| Screen Size | 10.0 Inches |
| Operating System | Android 10 (TCOS) |
| Processor | Octa-Core 2.0 GHz |
| RAM | 4 GB |
| Storage | 128 GB |
| Battery | 12600 mAh |
| VCI | THINKLINK Lite VCI |
| Camera Rear | 13.0 MP |
| Supported Protocol | CAN 2.0, CAN FD, DoIP (Diagnostics over IP), J2534 Pass-Thru |
| WiFi | Yes |
| Bluetooth | Yes |
| USB Type | USB Type C |
| Supported Languages | English, French, Spanish, German, Russian, Italian, Japanese, Portuguese |
| Supported Vehicle Brands | Supports 120+ Passenger Vehicle Makes (Package Included), Supports 70+ EV Makes (Optional EV Package), Supports 150+ Heavy Duty Makes (Optional HD/HML Package) |
| Internet Required for Updates | Yes - WiFi required for updates & online programming |
| Activation Required | Yes - Device registration required upon first use |
| Activation Method | Online activation via WiFi (Device serial required) |
| Renewal Policy | Passenger software updates are included free for 3 years from the activation date. Renewal is optional after expiration. The tool will continue to operate normally with the last installed software version if not renewed. Optional EV and Heavy-Duty packages require separate subscription renewal. |
| Compatible With | Most 1996-Present OBDII-compliant vehicles (US, Asian & European), Cars, SUVs, light trucks, EV coverage available with optional EV package, Heavy duty coverage available with optional HD/HML package |
| Not Compatible With | 6V systems, Coverage varies by vehicle year/model/region, Commercial heavy-duty trucks require optional HD/HML package |
| Function Notice | Functions and special services vary by vehicle. Contact support with VIN to confirm compatibility before purchase. |
