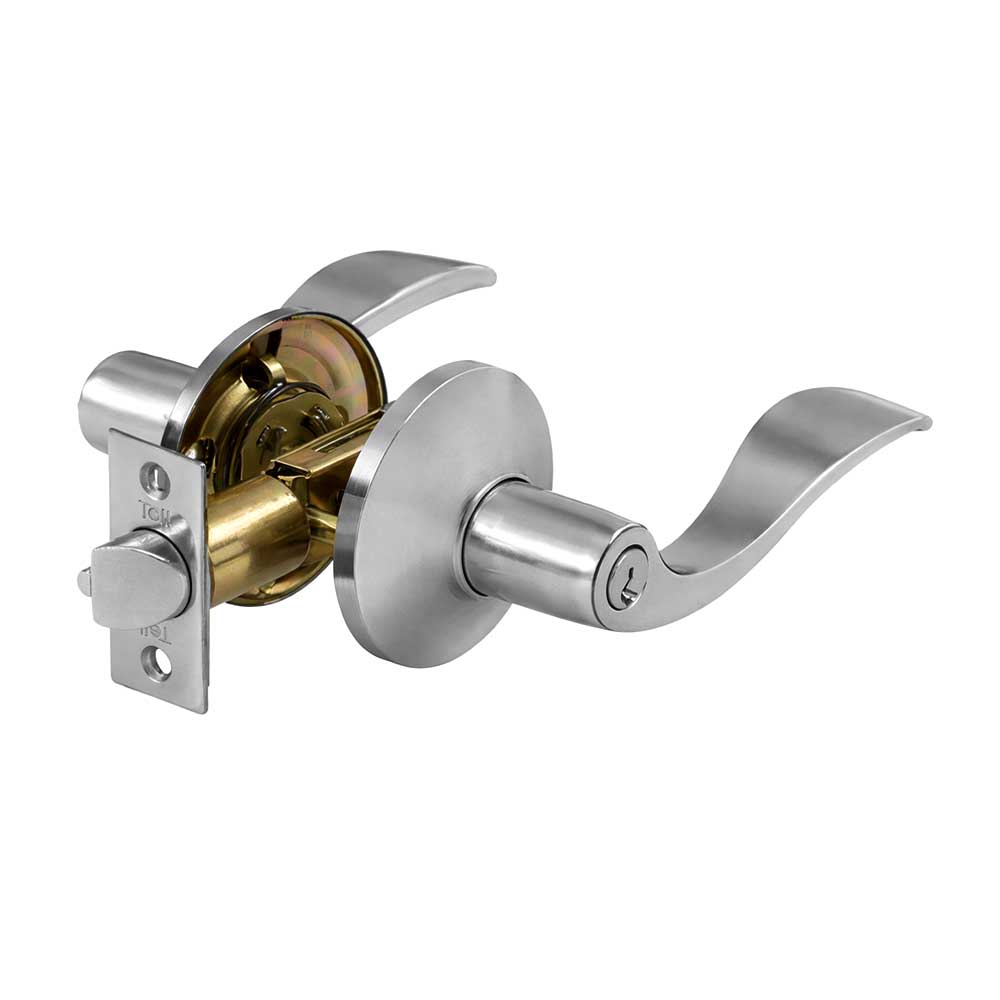

TELL Cylindrical Light-Duty Tubular LT3500 Series with Niagara Lever (NGA) - 2-3/4" Backset - Grade 3

TELL Cylindrical Light-Duty Tubular LT3500 Series with Niagara Lever (NGA) - 2-3/4" Backset - Grade 3

$98.57 USD
$131.43 USD $98.57 USD
Sale Sold out
Color
Function

TELL Cylindrical Light-Duty Tubular LT3500 Series with Niagara Lever (NGA) - 2-3/4" Backset - Grade 3

The Tell LT3500 Series light-duty tubular lever combines durability, functionality, and ADA compliance in a sleek, versatile design. Perfect for residential and light commercial applications, this Grade 3 lever delivers reliable performance and long-lasting quality.

Specifications:
Performance
  • Complies with ANSI A156.2, Series 4000, Grade 3
  • Meets ANSI A117.1 ADA accessibility code
  • Grade 3 light duty
  • Rated for 200,000 cycles
Chassis
  • Tubular construction
  • Steel coated with zinc dichromate for corrosion resistance
Lever
  • Non-handed
  • Solid cast construction
  • Niagara style
Latch
  • 1" x 2-1/4" square corner faceplate
  • 1" housing diameter (stainless steel)
  • 1/2" latch throw
Rose
  • 2-1/2" diameter
Backset
  • Adjustable 2-3/4" or 2-3/8"
Strike
  • Standard 2-3/4" x 1-1/8" T-strike
Cylinder
  • SCC C keyway
  • 5-pin solid brass
  • Keyed different (KD)
Keys
  • Two nickel silver keys per lock cylinder
Door Thickness
  • Fits doors 1-3/8" to 2"
Door Preparation
  • 2" diameter bore
  • 1" diameter for latchbolt
Warranty
  • Limited lifetime warranty
Finish
  • US15 - Satin Nickel
  • US19 - Matte Black
