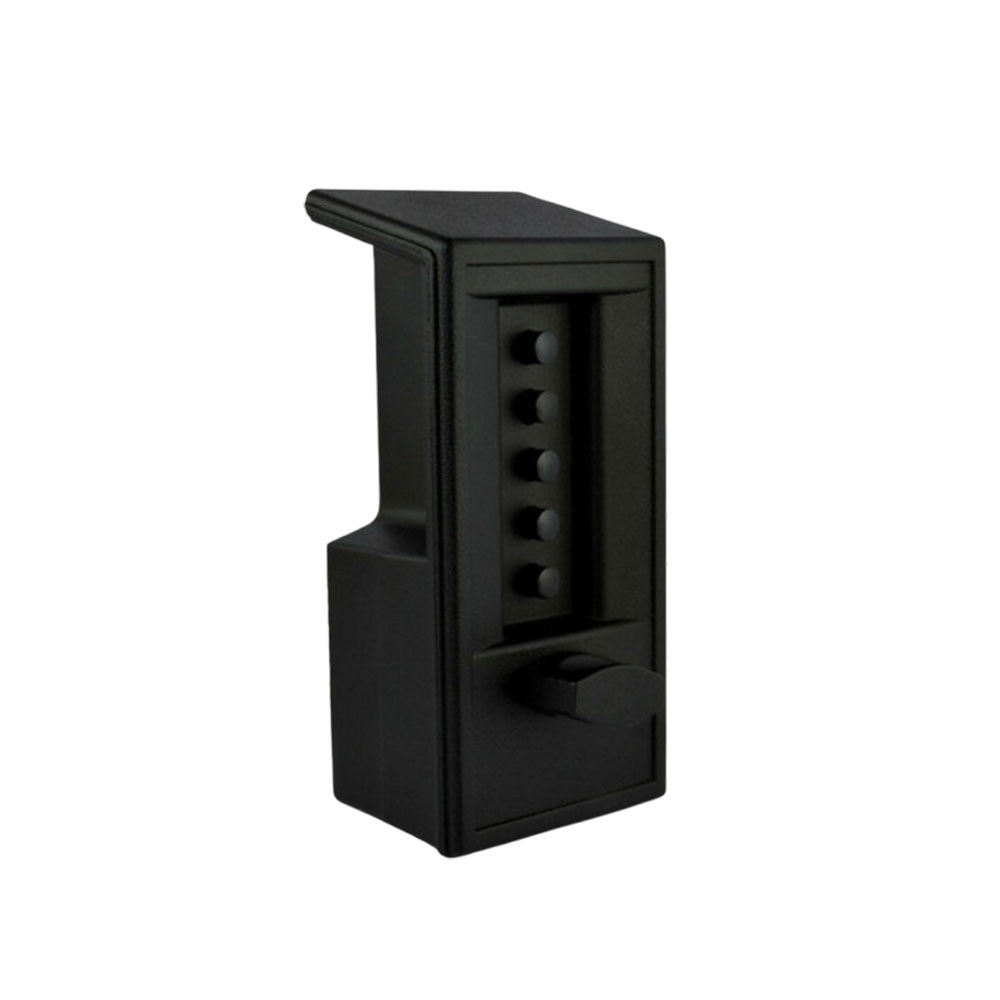

Simplex - 6204-85-41 - Pushbutton Cylindrical Combination Lock - 2-3/4 Backset - Outside Black - Inside Satin Chrome

Simplex - 6204-85-41 - Pushbutton Cylindrical Combination Lock - 2-3/4 Backset - Outside Black - Inside Satin Chrome

The 6200 Series eliminates the material and labor expense of battery replacements and has a single access-code.

Feature:

• Construction: All metal cast front housing, force-resistant, clutch-protected exterior thumbturn, unified interior trim plate, fixed interior knob
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed left; easily field reversible
• Backset: 2-3/4" (70 mm) or 2-3/8" (60 mm) backset
• Latch: 1/2" (13 mm) throw latch, floating faceplate (UL listed)
• Strike: Standard strike plate
• Door Thickness: 1-3/8" (35 mm) to 2-1/4" (57 mm); wood or metal
• Installation: ASA 161 door preparation with two additional through bore holes. Lock can be inverted if the existing auxiliary lock obstructs installation.
• Minimum Stile Recommended: 5" (127 mm)
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Durability: Weather resistant
