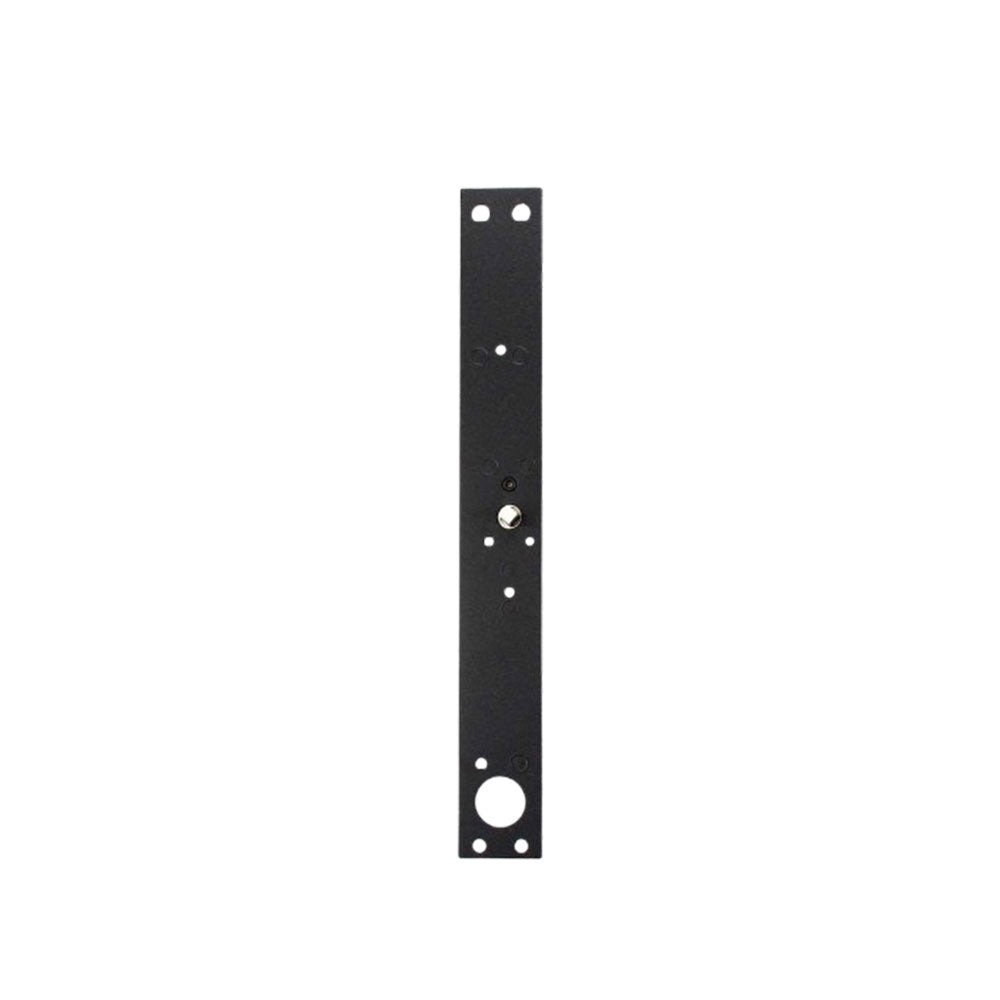

Simplex - 3010-19-41 - Drive Assembly - 31/32" Backset - RH/RHR - Black Finish

Simplex - 3010-19-41 - Drive Assembly - 31/32" Backset - RH/RHR - Black Finish

Provides exterior access by combination for narrow stile aluminum glass doors.

Feature:

• Construction: All metal cast front housing, force-resistant, clutch-protected fixed thumbturn.
• Numeric Keypad: Vandal resistant, solid metal pushbuttons.
• Locking Device: Adams Rite 4510/4710/4910 mortise latch.
• Key Override: Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently).
• Latch: Purchased separately (Adams Rite).
• Stile Width: 1-7/8" (48 mm) minimum, required for mounting.
• Door Thickness: 1-3/4 (44 mm) maximum.
• Strike: Sold separately (Adams Rite or Kaba Ilco Corp).
• Items Supplied Include: Installation instructions, full-scale template, combination change key, and screwdriver.
• Durability:Weather resistant.

Product Specifications:
