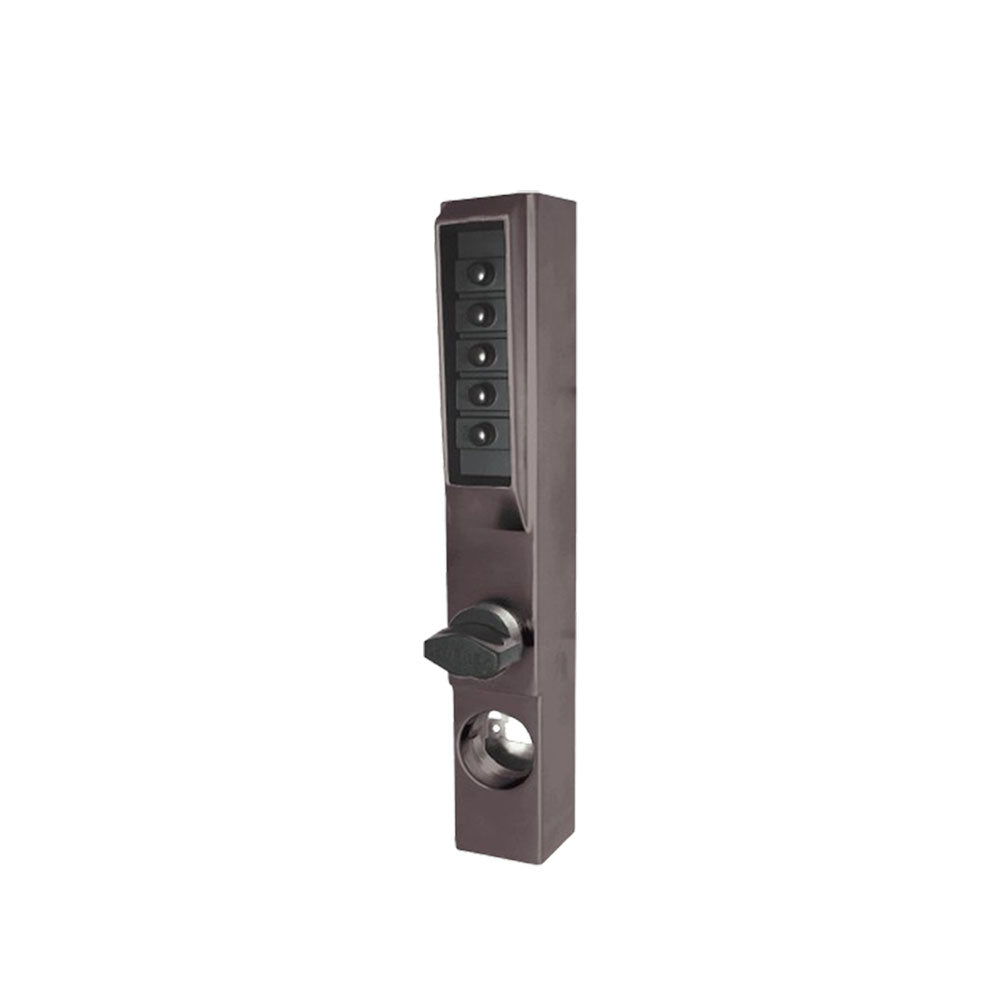

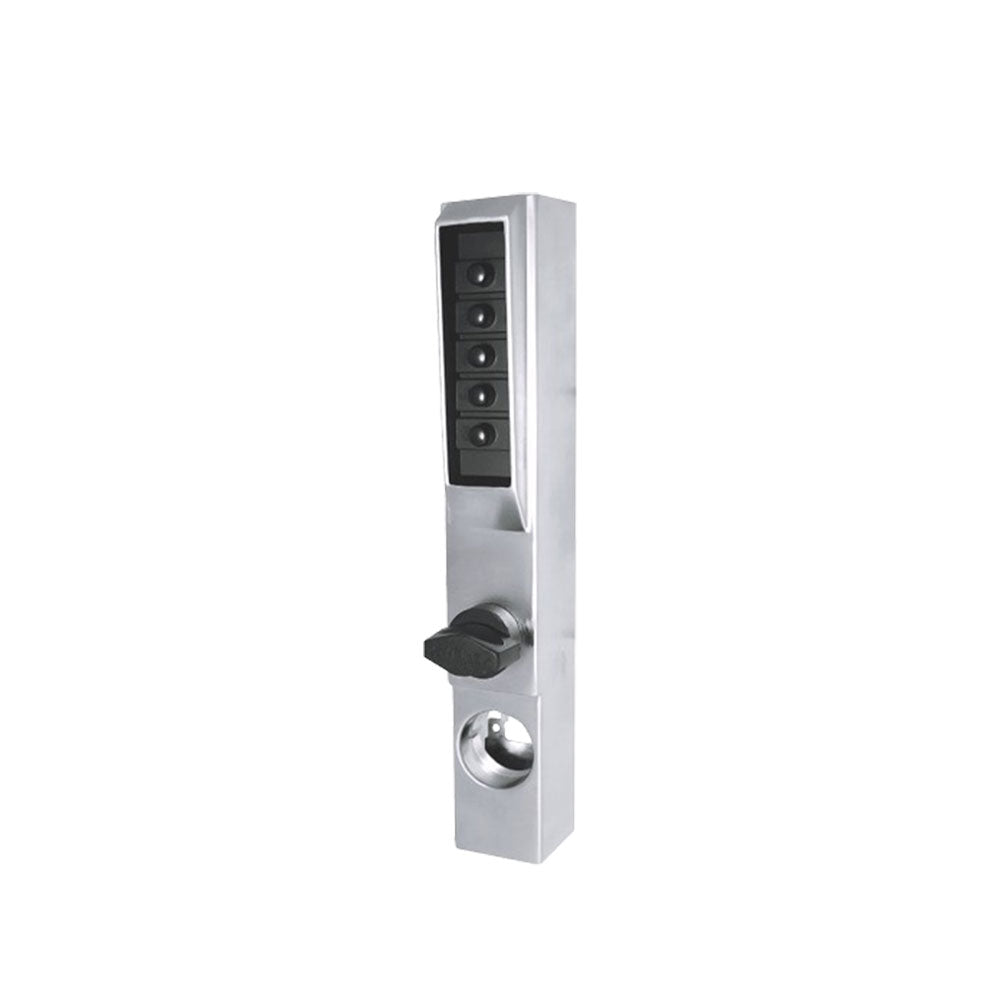

Simplex 3002 Pushbutton Narrow Stile Lock with Thumbturn

Simplex 3002 Pushbutton Narrow Stile Lock with Thumbturn

Provides exterior access by combination for narrow stile aluminum glass doors.

Features:

• Construction: All metal cast front housing, force-resistant, clutch-protected fixed thumbturn
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Locking Device: Adams Rite 4510/4710/4910 mortise latch
• Key Override: Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently).
• Latch: Purchased separately (Adams Rite)
• Stile Width: 1-7/8" (48 mm) minimum, required for mounting
• Door Thickness: 1-3/4" (44 mm) maximum
• Strike: Sold separately (Adams Rite or Kaba Ilco Corp.)
• Items Supplied Include: Installation instructions, full-scale template, combination change key, and screwdriver
• Durability: Weather resistant

Specifications:
