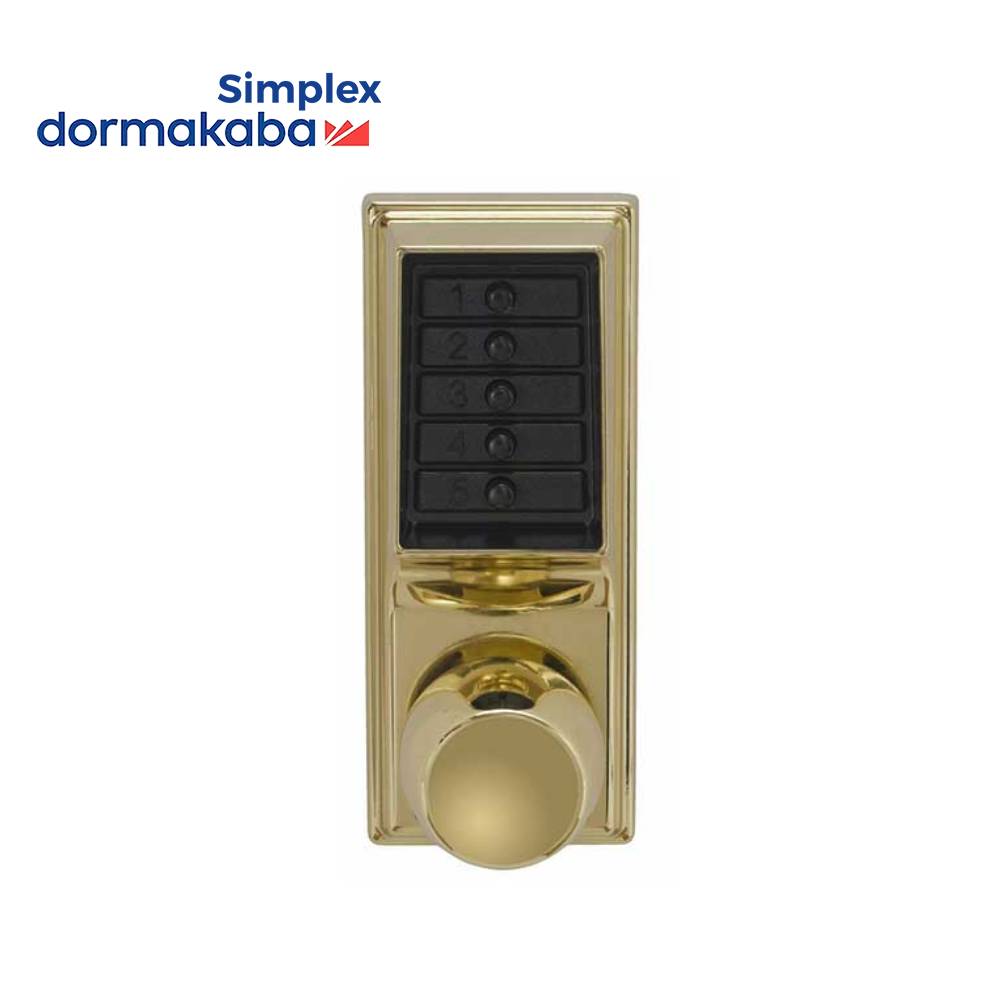

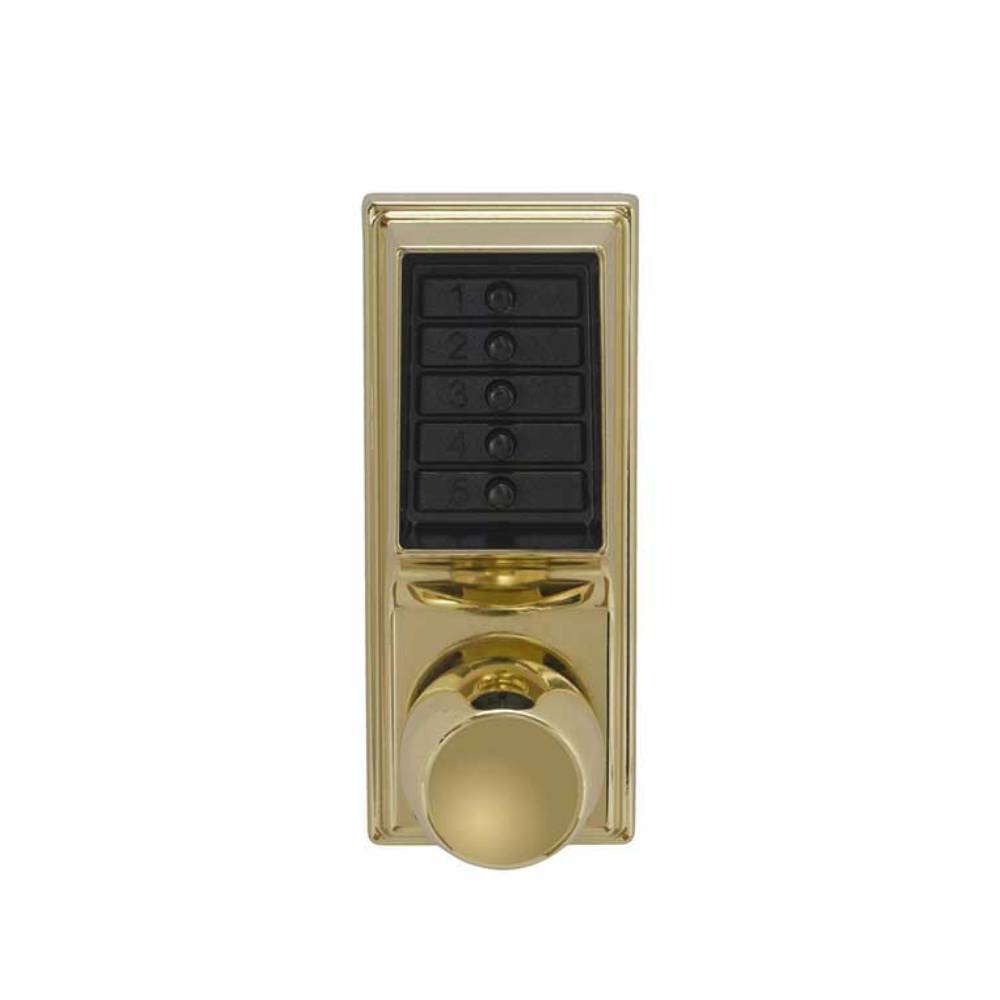

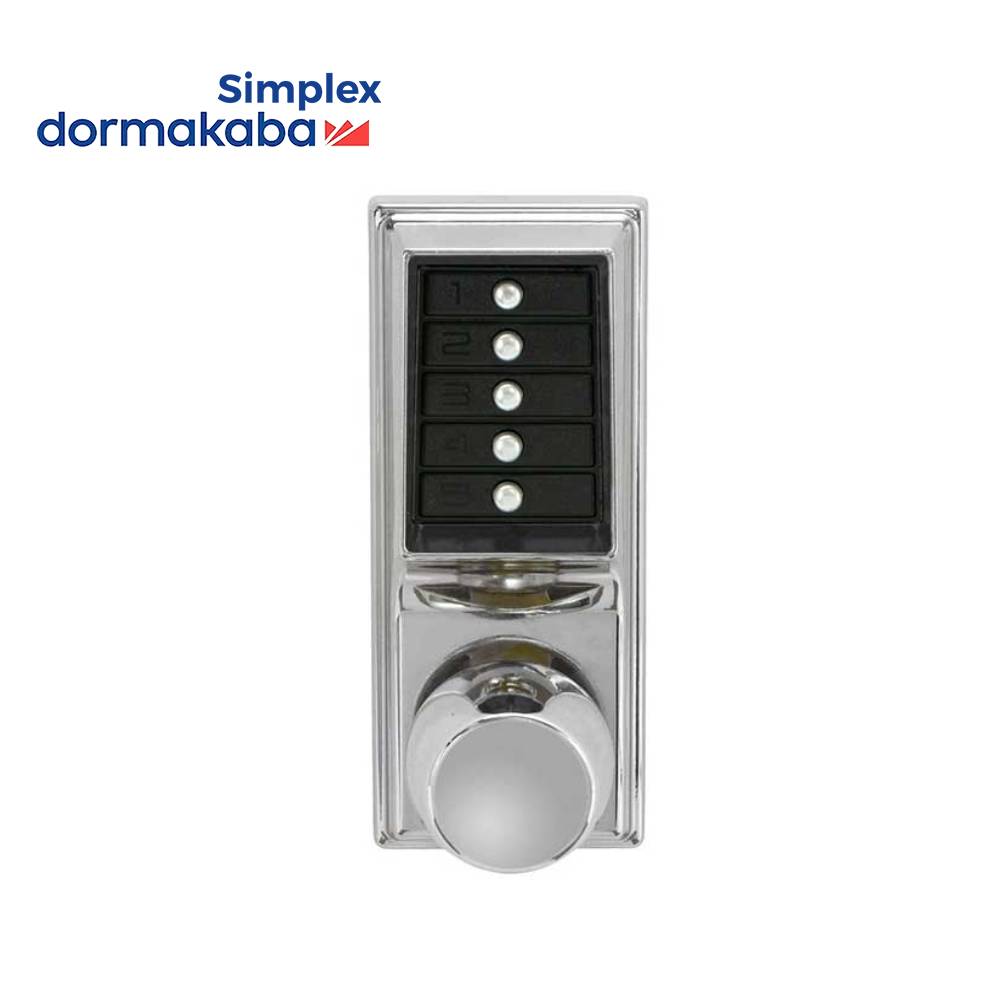

Simplex - 1011 - Mechanical Pushbutton Cylindrical Lever Lock with Combination Entry Function Only - 2-3/4 Inch Backset - Optional Color

Simplex - 1011 - Mechanical Pushbutton Cylindrical Lever Lock with Combination Entry Function Only - 2-3/4 Inch Backset - Optional Color

$480.16 USD
$576.19 USD $480.16 USD
Sale Sold out
Color

Simplex - 1011 - Mechanical Pushbutton Cylindrical Lever Lock with Combination Entry Function Only - 2-3/4″ Backset - Optional Color

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Feature:
  • A cost-effective access control solution
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Vandal-resistant, solid metal pushbuttons
  • Handing: Factory-handed for left-hand doors; easily field reversible
  • Minimum Stile Recommended: 5″
Specifications:
Brand Dormakaba
Lock Function Combination Entry Function Only
Backset 2-3/4"
Strike 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing Factory-handed for left-hand doors; easily field reversible
Usage Heavy Duty

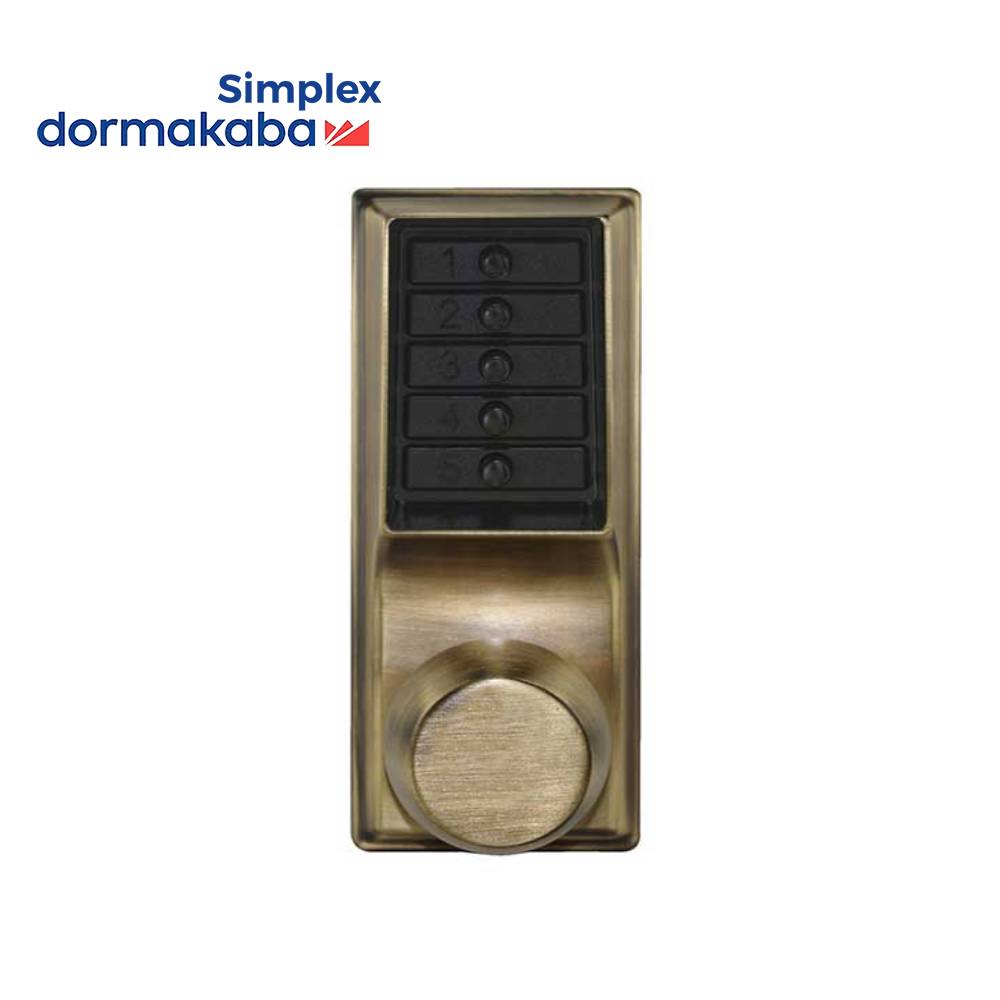

Finish US5 (609) Antique Brass
US3 (605) Bright Brass
US26 (625) Bright Chrome

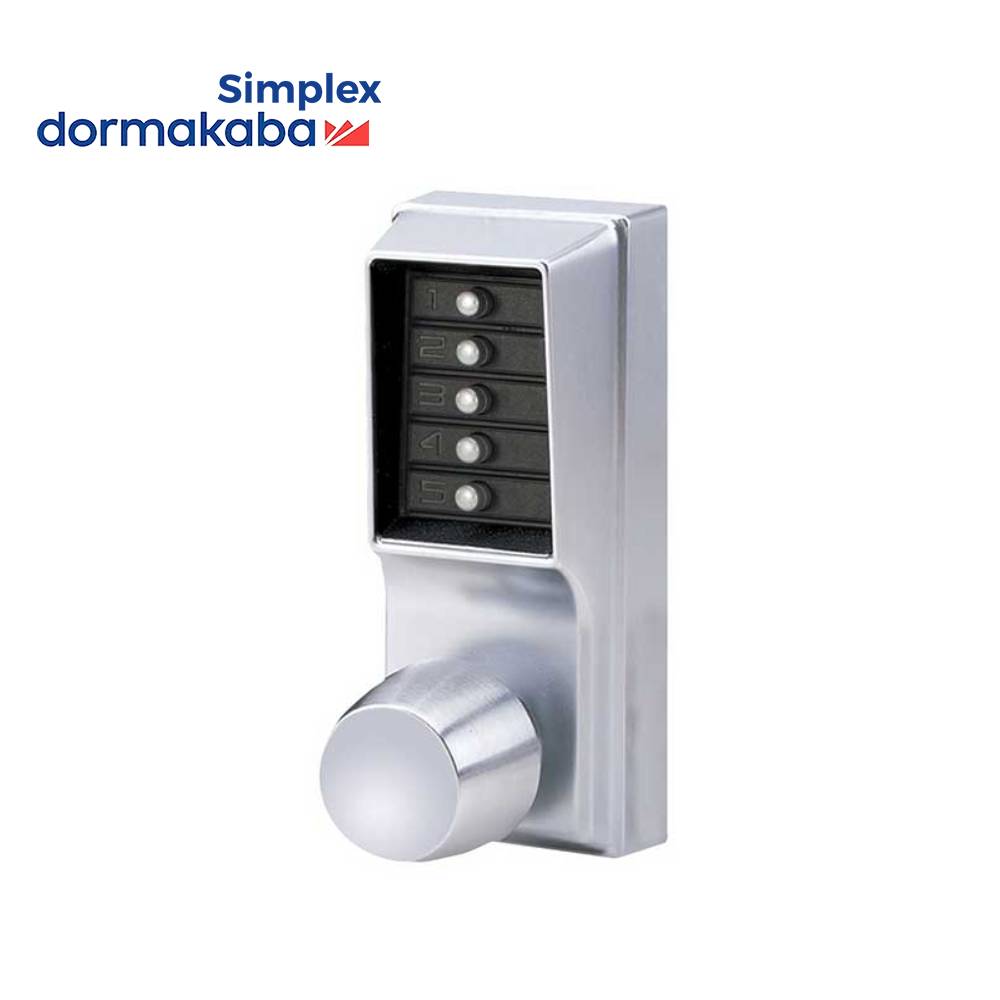

US26D (626) Satin Chrome
Latch 1/2" throw – 1-1/8" x 2-1/4" face
Fire Rating UL and cUL Listed – up to 3 Hours
Door Thickness 1-3/4"
