SECO-LARM
SECO-SM-4201-LQ Magnetic Contact Switch for Overhead Doors with Closed loop - 3" Gap
SECO-SM-4201-LQ Magnetic Contact Switch for Overhead Doors with Closed loop - 3" Gap
Regular price
$22.00 USD
Regular price
$28.57 USD
Sale price
$22.00 USD
Unit price
per
Couldn't load pickup availability

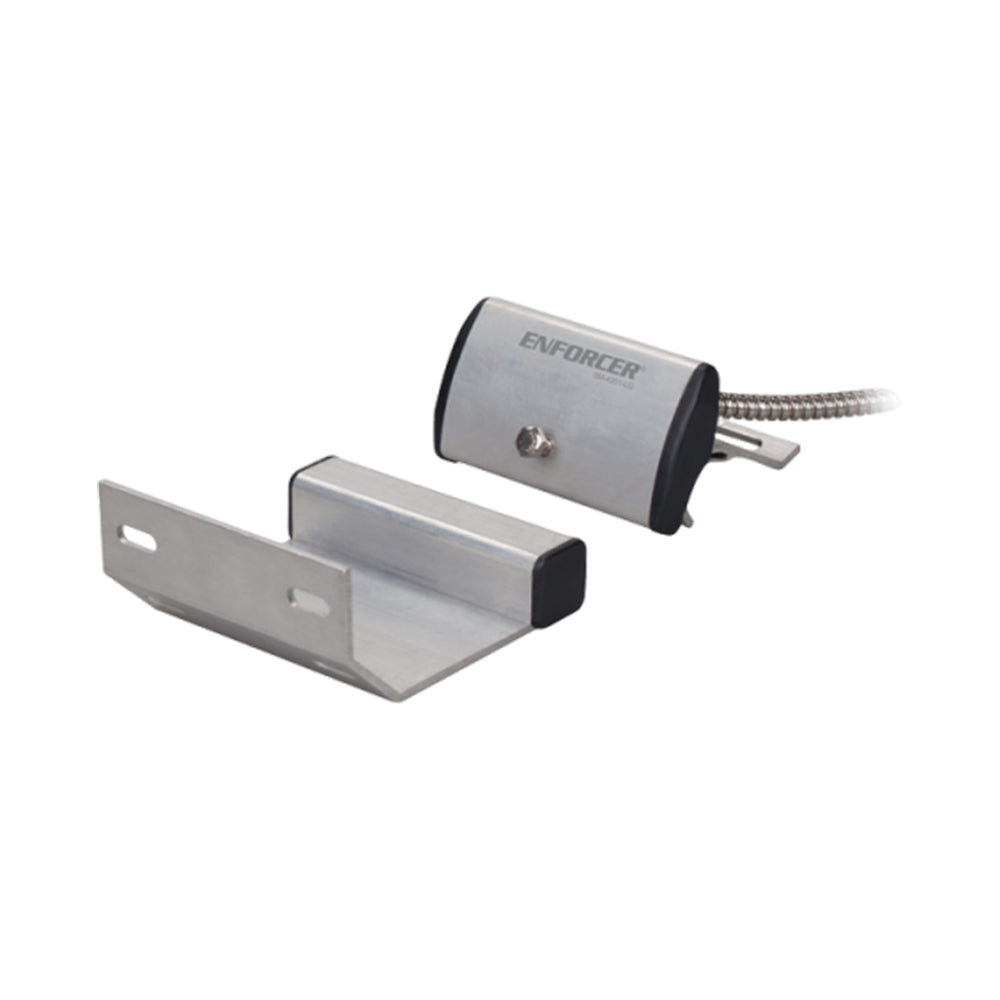

SECO-SM-4201-LQ Magnetic Contact Switch for Overhead Doors with Closed loop - 3" Gap
The Track-Mount Overhead Door Magnetic Contact is perfect for both residential and industrial overhead doors. Built to withstand harsh environments, it ensures consistent door monitoring and long-lasting performance. Easy to install, it provides peace of mind for all wide-gap door applications.
Features:
- Ideal for residential and industrial overhead doors
- Adjustable design fits most door channels
- Durable, weather-resistant housing
- Easy and secure installation with included mounting bracket
- Long-lasting, reliable performance
- Provides accurate door status monitoring
- Lifetime limited warranty for peace of mind
Specifications:
| Loop Type | Closed Loop |
| Operation Gap | 3" (76mm) |
| Material - Case | Aluminum |
| Material - Terminals | 36" (91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A @ 10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA @ 5VDC) |
| Switch Dimensions | 3-1/8" x 2-5/8" x 1-13/16" (79 x 66 x 46 mm) |
| Magnet Dimensions | 3-1/4" x 3-9/16" x 1-3/4" (82 x 90 x 44 mm) |
| Magnet Type | Ferrite |
| IP Rating | Weatherproof IP65 |
