SECO-LARM

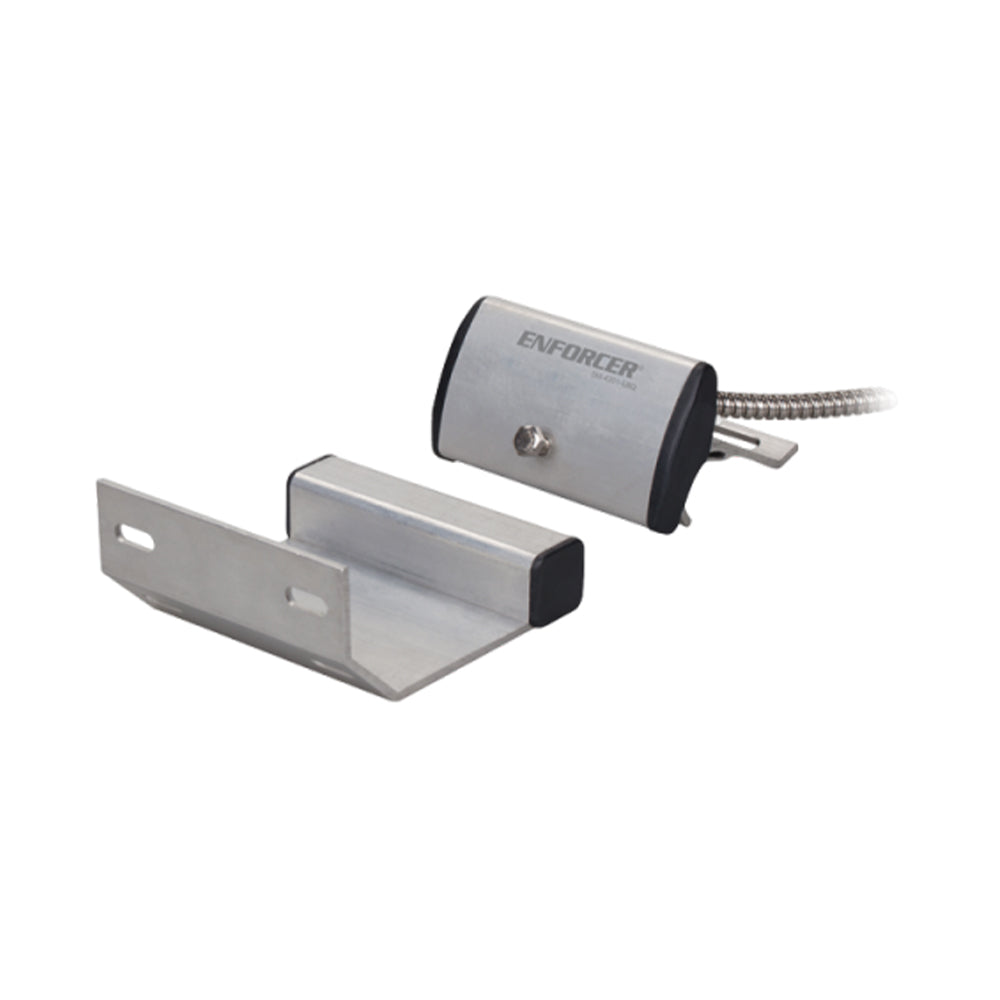

SECO-SM-4201-L6Q Track-Mount Magnetic Contact Switch for Overhead Doors with 6 Wires Open/Closed loop - 3" Gap
SECO-SM-4201-L6Q Track-Mount Magnetic Contact Switch for Overhead Doors with 6 Wires Open/Closed loop - 3" Gap
Regular price
$43.07 USD
Regular price
$55.94 USD
Sale price
$43.07 USD
Unit price
per
Couldn't load pickup availability
SECO-SM-4201-L6Q Track-Mount Magnetic Contact Switch for Overhead Doors with 6 Wires Open/Closed loop - 3" Gap
The Track-Mount Overhead Door Magnetic Contact is designed for reliable door monitoring in both residential and industrial settings. Its durable, weather-resistant construction and flexible mounting options make it ideal for wide-gap overhead doors. Easy to install and built to last, it provides consistent performance and peace of mind.
Features:
- Suitable for residential and industrial overhead doors
- Adjustable design fits most door channels
- Rugged, weather-resistant aluminum housing
- Easy and secure installation with included mounting bracket
- Supports open and closed loop circuits
- Optional L-bracket available for additional mounting flexibility
- Long-lasting, reliable performance
- Lifetime limited warranty for peace of mind
Specifications:
| Loop Type | Open/Closed Loop |
| Operation Gap | 3"(76mm) |
| Material - Case | Aluminum |
| Material - Terminals | 36"(91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A @ 10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA @ 5VDC) |
| Switch Dimensions | 3-1/8"x 2-5/8"x 1-13/16"(79 x 66 x 46 mm) |
| Magnet Dimensions | 3-1/4"x 3-9/16"x 1-3/4"(82 x 90 x 44 mm) |
| Magnet Type | Ferrite |
| IP Rating | Weatherproof IP65 |
