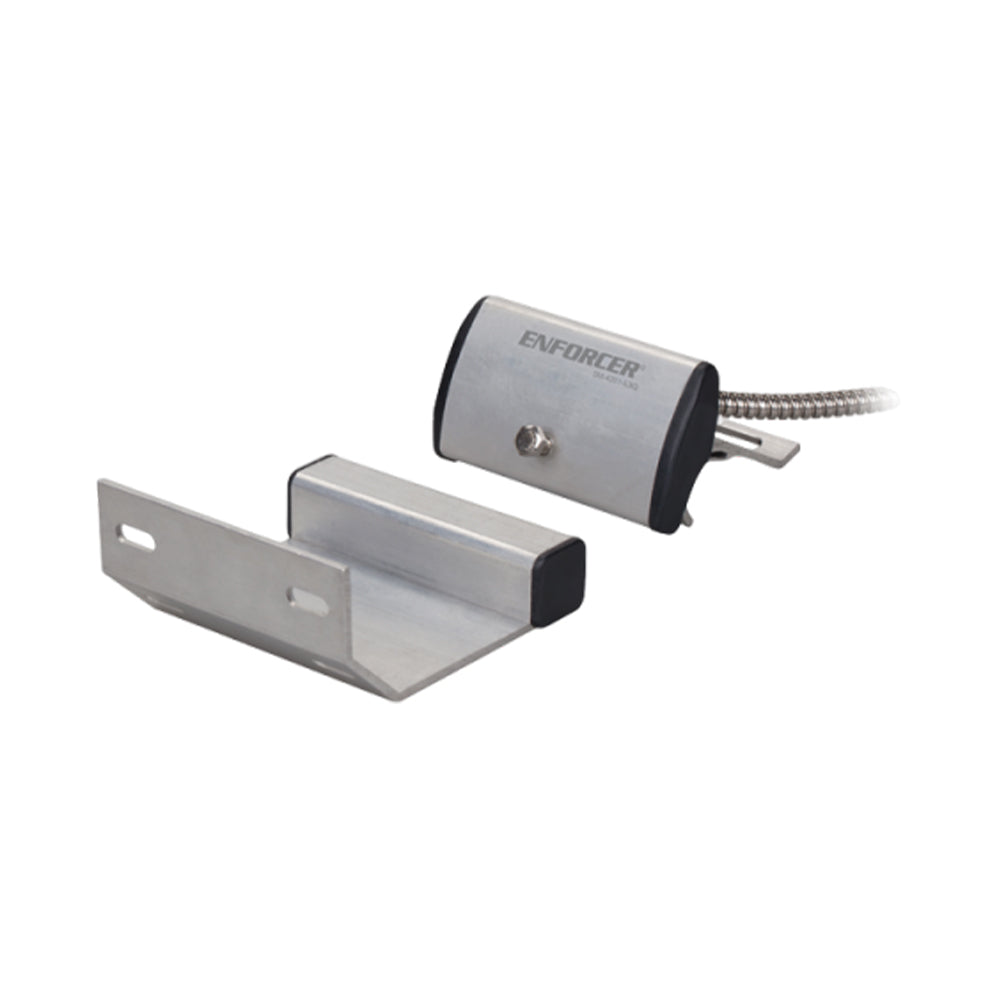

SECO-SM-4201-L3Q Track-Mount Magnetic Contact Switch for Overhead Doors with 3 Wires Open/Closed loop - 3" Gap
The Track-Mount Overhead Door Magnetic Contact is perfect for residential and industrial overhead doors with wide gaps. Built to be durable and weather-resistant, it ensures reliable door monitoring and long-lasting performance. Installation is easy, and optional accessories provide added flexibility.
Features:
- Suitable for both residential and industrial overhead doors
- Adjustable design fits most door channels
- Rugged, weather-resistant aluminum housing
- Easy and secure installation with included mounting bracket
- Supports open and closed loop circuits
- Optional L-bracket available for additional mounting flexibility
- Long-lasting, reliable performance
- Lifetime limited warranty for peace of mind
Specifications:
| Loop Type | Open/Closed Loop |
| Operation Gap | 3" (76mm) |
| Material - Case | Aluminum |
| Material - Terminals | 36" (91cm) armored leads |
| Contacts | Iridium-plated |
| Contact Rating | 1.0A @ 10VDC (max), 10W (max) |
| Operating Temperature | -15°~160°F (-25°~70°C) |
| Switch Cycles | 50 Million (0.1mA @ 5VDC) |
| Switch Dimensions | 3-1/8" x 2-5/8" x 1-13/16" (79 x 66 x 46 mm) |
| Magnet Dimensions | 3-1/4" x 3-9/16" x 1-3/4" (82 x 90 x 44 mm) |
| Magnet Type | Ferrite |
| IP Rating | Weatherproof IP65 |
