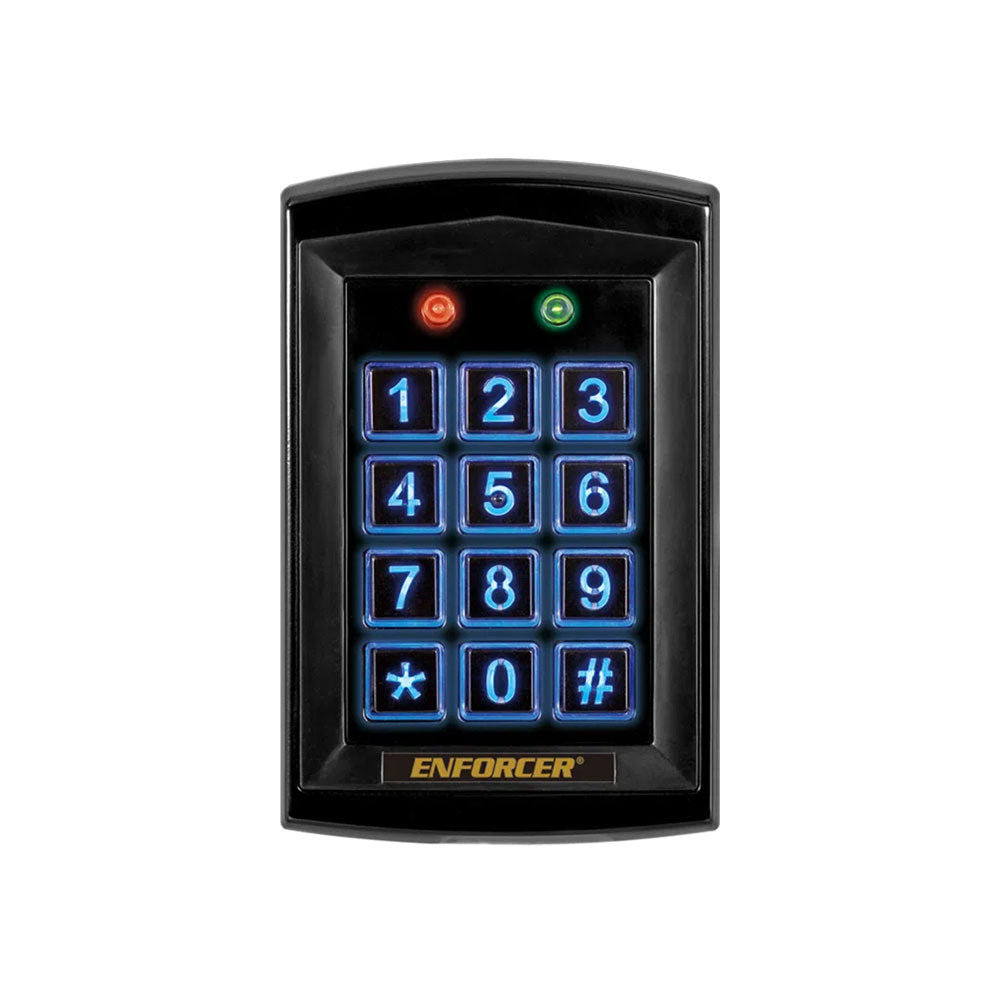

SECO-LARM SK-1323-BPQ Sealed Black Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

SECO-LARM SK-1323-BPQ Sealed Black Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

$125.82 USD
$195.48 USD $125.82 USD
Sale Sold out

SECO-LARM SK-1323-BPQ Sealed Black Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Designed for demanding commercial environments, these epoxy-sealed, outdoor keypads provide secure and flexible access control in a compact, weatherproof design with intuitive programming, multi-user support, and seamless integration, 2 outputs, and now two models in a black housing.

Features:
  • 12~24 VAC/VDC operation
  • 1,010 User codes
  • 2 Form C relays, each rated 1A@30VDC, programmable from 1~99 seconds timed or toggle
  • Output #2 can be programmed for use with a doorbell
  • 2 Egress inputs for exiting the premises without keying in the code
  • Backlit keys for easy nighttime use
  • Door sensor input for anti-tailgating operation
  • All features are programmed directly from the keypad - no need for an external programmer
  • EEPROM memory protects programmed information in case of power loss
  • Optical tamper for added security
  • IP65 weatherproof - circuitry fully sealed with epoxy in rugged aluminum housing
  • Built-in proximity card reader
Specifications:
Type Sealed Housing Weatherproof Outdoor Digital Access Keypad
Number of User Codes Up to 1,010
Operating Voltage 12~24 VAC/VDC
Current Draw - Standby 64mA@12VDC
Current Draw - Active 92-120 mA@12VDC
Relay Outputs (2) 1A@30VDC, Form C, NO/COM/NC
Egress Inputs 2, N.O. Ground
Door Sensor Input N.C. Ground
Tamper Sensor Optical
Proximity Reader Frequency 125kHz
Keypad LED Life 60,000 hours (over 6.8 years)
Proximity Reader Sensing Distance 1-15/16" (50mm)
Operating Temperature -4°~122° F (-20°~50° C)
Dimensions 4-3/4"x3"x7/8" (120x76x22 mm)
Weight 1-lb, 2-oz (510g)
IP Rating Weatherproof IP65
