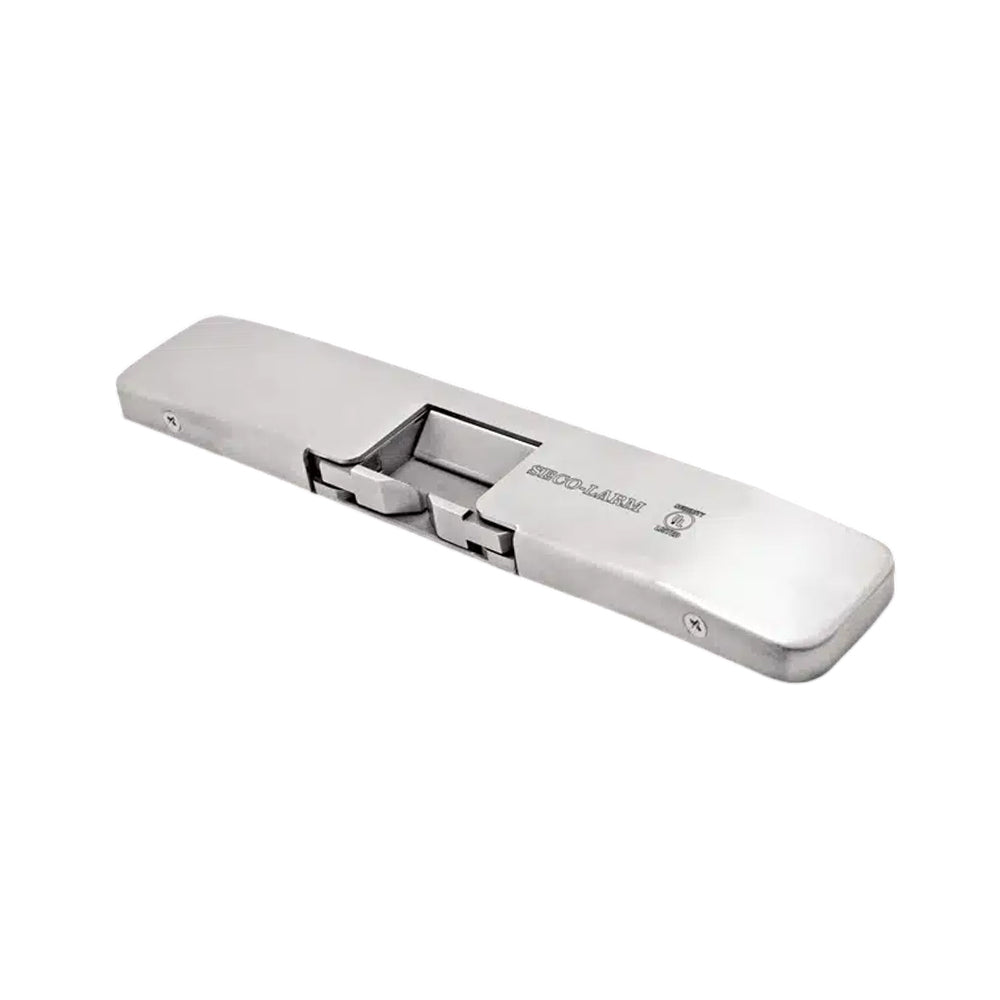

SECO-LARM SD-998CM-SD3A 1/2" Tamper-Resistant Surface Mount Electric Rim Strike with Latch Monitoring
SECO-LARM SD-998CM-SD3A 1/2" Tamper-Resistant Surface Mount Electric Rim Strike with Latch Monitoring
Regular price
$258.20 USD
Regular price
$335.32 USD
Sale price
$258.20 USD
Unit price
per
Couldn't load pickup availability
SECO-LARM SD-998CM-SD3A 1/2" Tamper-Resistant Surface Mount Electric Rim Strike with Latch Monitoring
The SECO-LARM Surface-Mount Electric Rim Strike is built for strength and durability, designed for use with rim-type exit devices featuring a Pullman latch bolt. It offers selectable fail-safe or fail-secure operation, horizontal adjustment for easy alignment, and a surface-mount design that eliminates the need for frame cutting during installation.
Features:
- UL 294 and 1034 Listed
- Tamper-resistant design
- Non-polarized connection
- Horizontal adjustment for flexible installation
- Reversible, non-handed design
- Durable stainless steel construction
- Surface-mount installation on metal or wood frames
- Compatible with standard rim-type exit devices (including SECO-LARM SD-962AR series)
- Indoor use
- Field-selectable fail-safe or fail-secure operation
- Spacers included for easy alignment
- Designed for use with UL Listed Exit Hardware
- Does not impair emergency unit operation
- Maintains proper operation of panic hardware mounted on the door
Specifications:
| Operating Voltage | 12/24 VDC |
| Current Draw | 540mA@12VDC, 270mA@24VDC |
| Latch Throw | 1/2" |
| Latch Monitoring | 1A@30VDC |
| Static Strength | 1,500-lb (6673N) |
| Dynamic Strength | 70ft-lb (95J) |
| Endurance | 250,000 cycles (UL Tested), Level IV |
| Destructive Attack | Level I |
| Line Security | Level I |
| Standby Power | Level I |
| Operating Temperature | 14°~120° F (-10°~49° C) |
| Operating Humidity | 0~85% |
| Dimensions | 9"x1/2"x1-3/4" (229x13x45 mm) |
