SECO-LARM SD-995C-D3F Fire Rated No-Cut Electric Door Strike - 12/24 VDC
SECO-LARM SD-995C-D3F Fire Rated No-Cut Electric Door Strike - 12/24 VDC
Regular price
$208.83 USD
Regular price
$271.21 USD
Sale price
$208.83 USD
Unit price
per
Couldn't load pickup availability

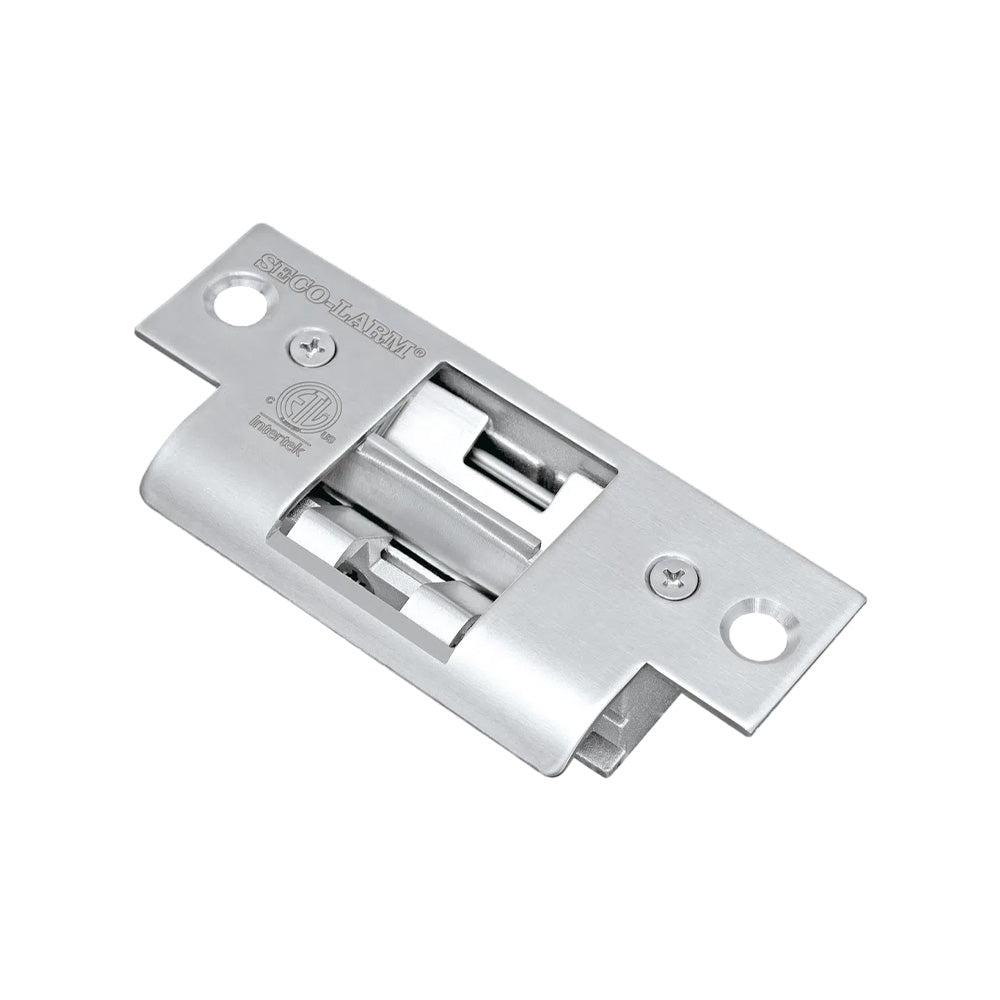

SECO-LARM SD-995C-D3F Fire Rated No-Cut Electric Door Strike - 12/24 VDC
The SECO-LARM SD-995C-D3F is Fire-rated and ETL listed, No-Cut Electric Door Strike offers quick installation on aluminum frames, 1M-cycle durability, and full UL/CAN compliance for reliable, secure access control.
Features:
- Certification: ETL Listed; conforms to UL 10C, UL 10B, CAN/ULC S104, and NFPA 252
- Operation Mode: Field selectable for fail-safe or fail-secure operation
- Mounting: Includes mounting tabs for hollow aluminum and metal frames
- Design: Reversible, non-handed - fits right-hand or left-hand doors
- Application: Indoor use only
- Compatibility: Suitable for aluminum and metal door frames
Specifications:
| Operating Voltage | 12/24 VDC |
| Current Draw | 12VDC: 300mA 24VDC: 150mA |
| Latch Throw | 3/4" (19mm) |
| Keeper Width | 1-7/16" (36mm) |
| Endurance | 1,000,000 cycles (Factory Tested), Level IV |
| Destructive Attack | Level I |
| Line Security | Level I |
| Standby Power | Level I |
| Static Strength | 1,500-lb (680 kg) |
| Dynamic Strength | 70 ft-lb (9.68 m-kg) |
| Operating Humidity | 0~85% non-condensing |
| Operating Temperature | 14°~120° F (-10°~49° C) |
| Dimensions | 4-7/8" x 1-1/4" x 1-1/16" (124 x 32 x 27.5 mm) |
| Weight | 11.3 oz (320 g) |
