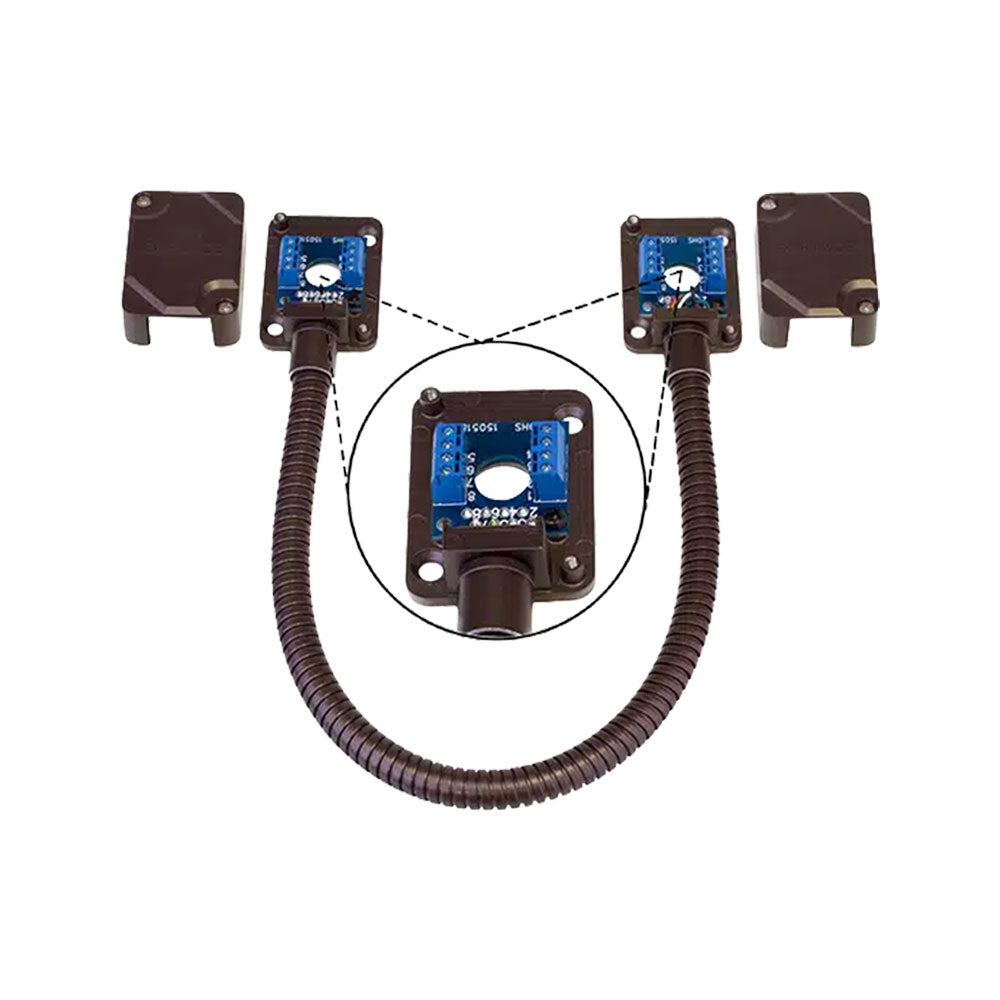

SECO-LARM SD-969-T15Q-B Armored Door Cord - Pre-Wired Terminal Blocks and Removable Covers, Bronze, 15" (39cm)

SECO-LARM SD-969-T15Q-B Armored Door Cord - Pre-Wired Terminal Blocks and Removable Covers, Bronze, 15" (39cm)

Features:

• Designed to carry wiring to conduct power to electric locks or access systems
• Once mounted, simply remove cover to access. Door cord stays in place. No need to remove from the door. Prevents stripping of the screws and mounting points
• Surface-mounted
• Terminal blocks with pre-wired cables (8 connections) for quick, easy, and secure installation
• Maximum current - 3A@30VAC/VDC
• 15" (39cm) Stainless steel armored cord
• Inside door-cord diameter: 5/16" (8mm)
• Outside door-cord diameter: 7/16" (11mm)
• End cap dimensions: 2-3/6" x 7/8" x 1-9/16"
• Security screws (included) prevent tampering
• Available in bronze or silver finish

Specifications:

Downloads:

• Product Information Sheet
• Manual
