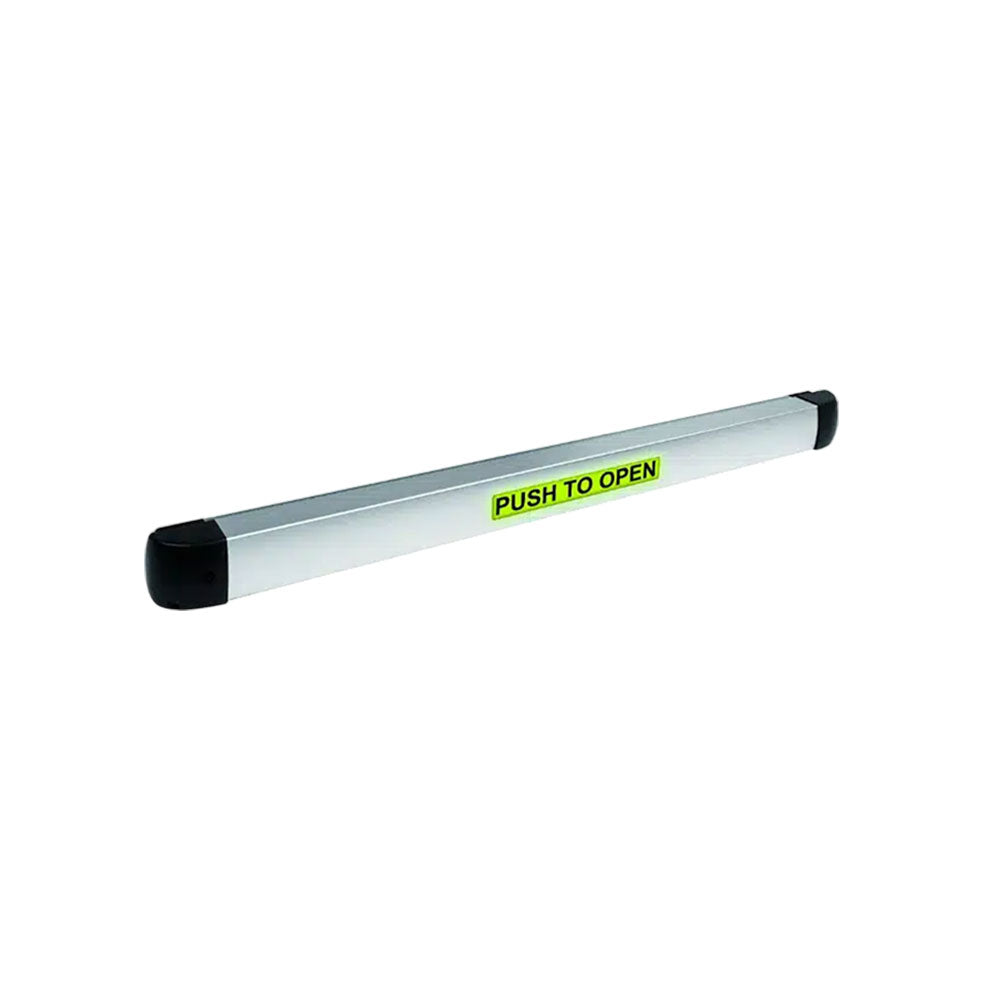

SECO-LARM SD-961A-36SLQ Illuminated Push-to-Open Bar

SECO-LARM SD-961A-36SLQ Illuminated Push-to-Open Bar

The ENFORCER Illuminated Push-to-Open Bar works with an external electric strike or maglock to provide egress from a protected area. It can work in stand-alone mode or as part of an access control system, but also can be locked open by key. Buzzer, output timing, and LED function and colors are also customizable.

Features:

• Provides convenient on-door egress
• LED makes it easy to see the status
• Can be stand-alone or connected to an access control system
• Dogging - standard dogging with hex key
• For 36" doors - actual length: 337/16" (85cm)
• Can be cut to fit smaller doors, minimum 235/8" (60cm)
• Two built-in non-latching (momentary), dual-contact switches (NO/NC/COM) rated at ≤5A@230VAC, adjustable 0.5~60 sec
• Large LED shows red in standby and green when triggered, but is programmable red/green/blue by an access control panel
• Blinking LED and buzzer programmable for relock warning
• Built-in buzzer indicates unlocked (selectable, up to 92dB)

Specifications:

Downloads:

• Product Information Sheet
• Manual
