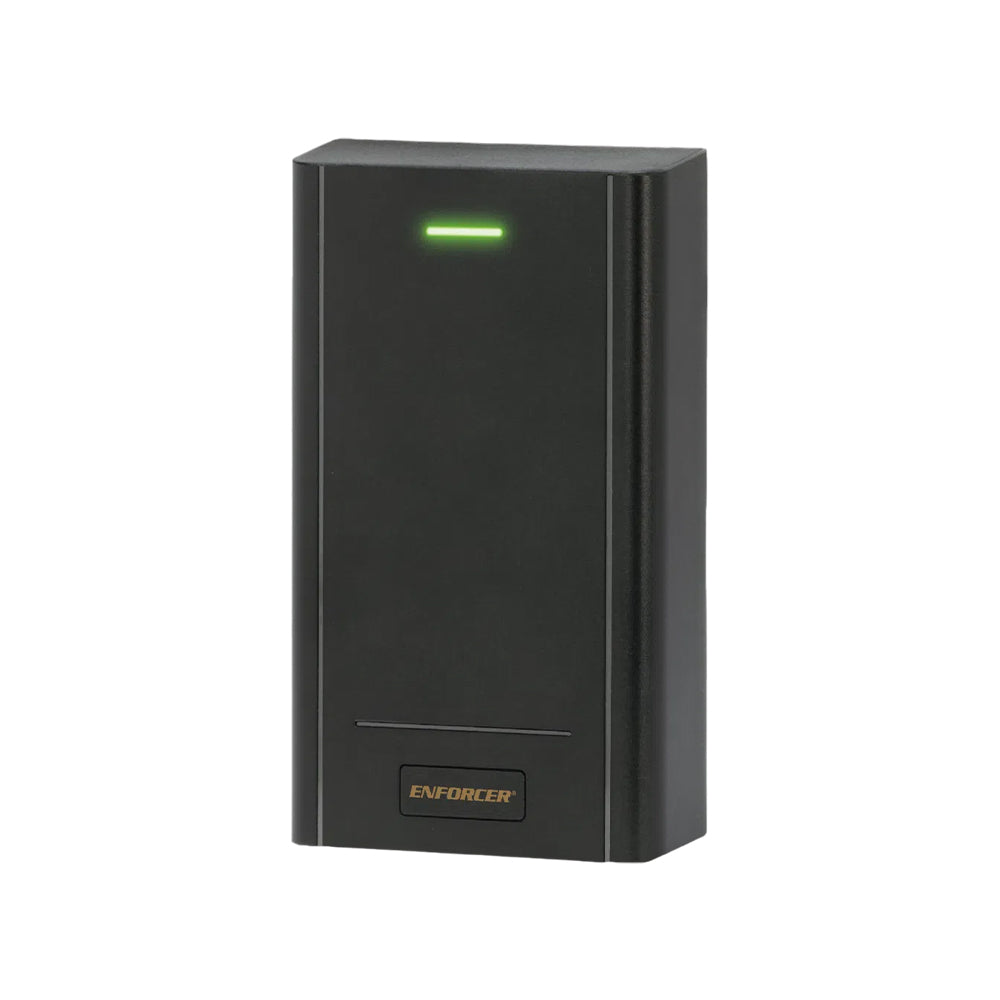

SECO-LARM PR-3125-PQ Stand-Alone Proximity Card Reader with Wiegand
The ENFORCER Stand-Alone/Wiegand Proximity Reader is a high-performance access control solution designed for both flexibility and ease of use. Capable of operating as either a stand-alone controller or a Wiegand output reader, it adapts seamlessly to a wide range of security systems. Its standout feature - bulk card enrollment - enables rapid, efficient setup for large organizations, significantly reducing administrative time and effort.
Features:
- 12~18 VDC operation
- Low current draw - 120mA max.
- Form C relay output - 2A@12VDC
- Built-in tamper alarm and external alarm output
- Outdoor rated - IP66 weatherproof
- Functions as Wiegand output reader or controller (26~44 bits)
- EM 125kHz proximity card reader
- 2-door interlock for enhanced access control
- Easy user duplication to additional devices
- Bulk enrollment of multiple cards at once
Specifications:
| Operating Voltage | 12~18 VDC |
| Current Draw | Standby: 30mA@12VDC Active: 120mA@12VDC (max.) |
| Outputs | Form C: 2A@12VDC Alarm: 2A@12VDC Wiegand: 26~44 bits |
| Inputs | Wiegand: 26~44 bits, PIN input - 4, 8, or 10 bits Egress: N.O. Ground Door sensor: N.C. Ground |
| Card Type | EM 125kHz |
| Enclosure Material | Black ABS plastic |
| Operating Temperature | -40°~140°F (-40°~60°C) |
| Operating Humidity | 0~98% non-condensing |
| Dimensions | 2-15/16" x 4-5/8" x 13/16" (75 x 117 x 20 mm) |
| Weight | 7 oz (200g) |
