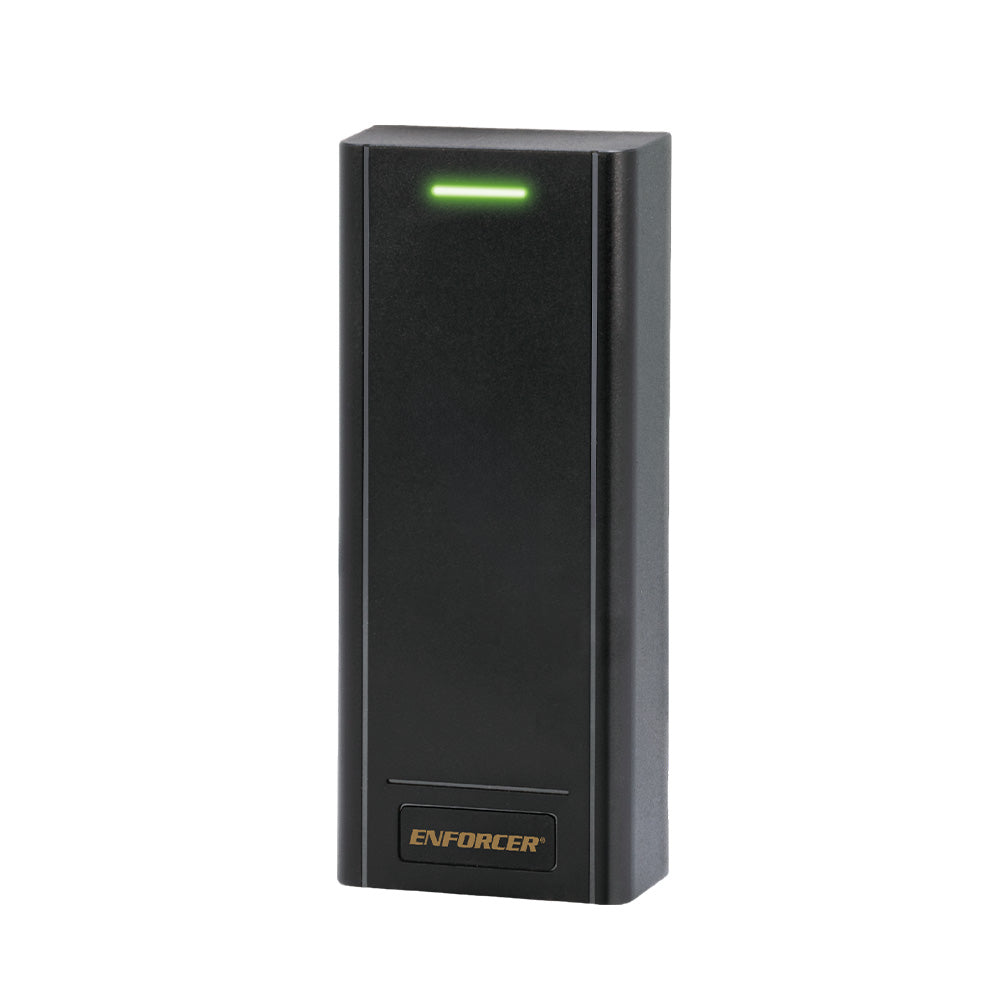

SECO-LARM PR-3123-PQ Mullion-Mount Stand-Alone Proximity Card Reader with Wiegand
SECO-LARM PR-3123-PQ Mullion-Mount Stand-Alone Proximity Card Reader with Wiegand
Regular price
$69.12 USD
Regular price
$93.31 USD
Sale price
$69.12 USD
Unit price
per
Couldn't load pickup availability
SECO-LARM PR-3123-PQ Mullion-Mount Stand-Alone Proximity Card Reader with Wiegand
The ENFORCER Stand-Alone/Wiegand Proximity Reader offers a flexible access control solution, functioning as both a stand-alone controller and Wiegand reader. Its bulk card enrollment feature simplifies management for large organizations.
Features:
- 12~18 VDC operation with low current draw - 120mA max
- Form C relay output rated at 2A@12VDC
- Built-in tamper alarm and external alarm output
- IP66 weatherproof housing for outdoor use
- Supports both Wiegand output (26~44 bits) and controller mode
- EM 125kHz proximity card compatibility
- 2-door interlock capability for enhanced security
- Easy duplication of users to additional devices
- Bulk card enrollment for fast multi-card registration
Specifications:
| Operating Voltage | 12~18 VDC |
| Current Draw | Standby: 30mA@12VDC Active: 120mA@12VDC (max.) |
| Outputs | Form C: 2A@12VDC Alarm: 2A@12VDC Wiegand: 26~44 bits |
| Inputs | Wiegand: 26~44 bits PIN input: 4, 8, or 10 bits Egress: N.O. Ground Door sensor: N.C. Ground |
| Card Type | EM 125kHz |
| Enclosure Material | Black ABS plastic |
| Operating Temperature | -40°~140°F (-40°~60°C) |
| Operating Humidity | 0~98% non-condensing |
| Dimensions | 1-7/8" x 4-5/8" x 13/16" (48 x 117 x 20 mm) |
| Weight | 5 oz (140g) |
