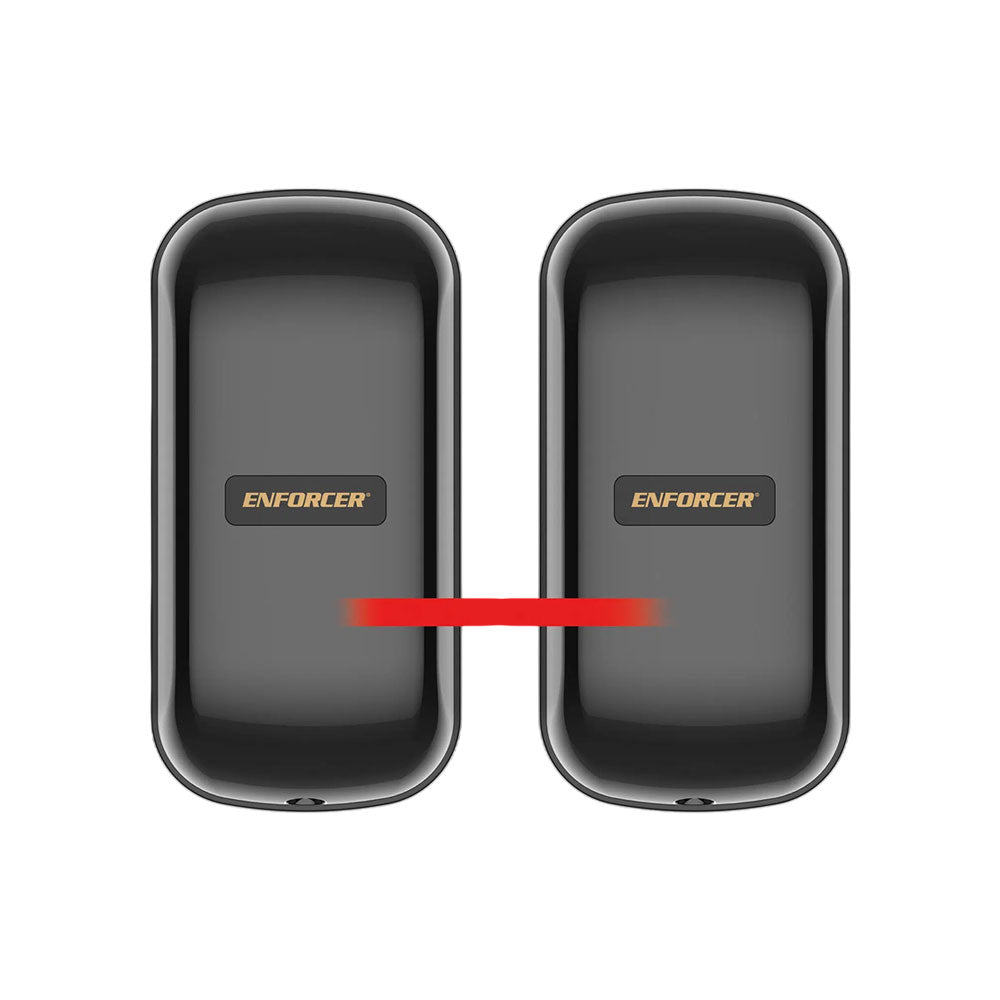

SECO-LARM E-964-S65TB Mini Photobeam Sensor
SECO-LARM E-964-S65TB Mini Photobeam Sensor
Regular price
$34.45 USD
Regular price
$44.75 USD
Sale price
$34.45 USD
Unit price
per
Couldn't load pickup availability
SECO-LARM E-964-S65TB Mini Photobeam Sensor
ENFORCER Mini Photobeam Sensors offer 4 selectable frequencies to avoid interference in installations with multiple pairs, IR signal secondary processing to make them highly adaptable to adverse environmental conditions, wide-voltage range to reduce voltage drop issues with longer wiring distances, all in a small, less-conspicuous size. Their switchable NO/NC output adapts to various alarm control systems, and they are IP55 weatherproof for installation indoors and out.
Features:
- Sensing range up to 65 feet (20m)
- 4 selectable frequencies to reduce interference
- Flexible power supply: 12-24 VDC, 12-20 VAC
- Small size for a less conspicuous installation
- Simple installation
- Signal strength indicator for easier alignment
- Built-in IR signal secondary processing technology to filter out lighting disturbances
- LED indicators for power, signal strength, and alarm trigger
- Mounting hardware included
- IP55 weatherproof
Specifications:
| Type | Photobeam |
| No. of beams | 1 |
| No. of beam frequencies | 4 |
| Detection method | Beam completely blocked |
| Sensing range | 65' (20m) |
| Response time | 50ms |
| Operating voltage | 12~24 VDC, 12~20 VAC |
| Current draw (max.) |
Transmitter: 15mA 12VDC Receiver: 65mA @ 12VDC |
| Outputs |
Number: 1 Type: Selectable NO/NC (default: N.C.) Rating: 3A @ 24VDC |
| Alarm time range | ≥ 2s |
| Light source | Infrared LED, 940nm |
| LED Indicators |
Power: Green (transmitter only) Alarm: Red (receiver only) |
| Beam strength indicators |
Weak: Blue - slow flashing = signal, faster flashing = stronger, then off (Receiver) Good: Green - slow flashing = good, faster = better, steady ON = optimal (Receiver) |
| Connectors | Screw terminals |
| IP Rating | IP55 Weatherproof |
| Operating humidity | Up to 95%, non-condensing |
| Operating temperature | -22°~158°F (-30°~70°C) |
| Dimensions (both units) | 1-3/4" x 3-3/4" x 1-1/4" (45 x 95 x 32 mm) |
