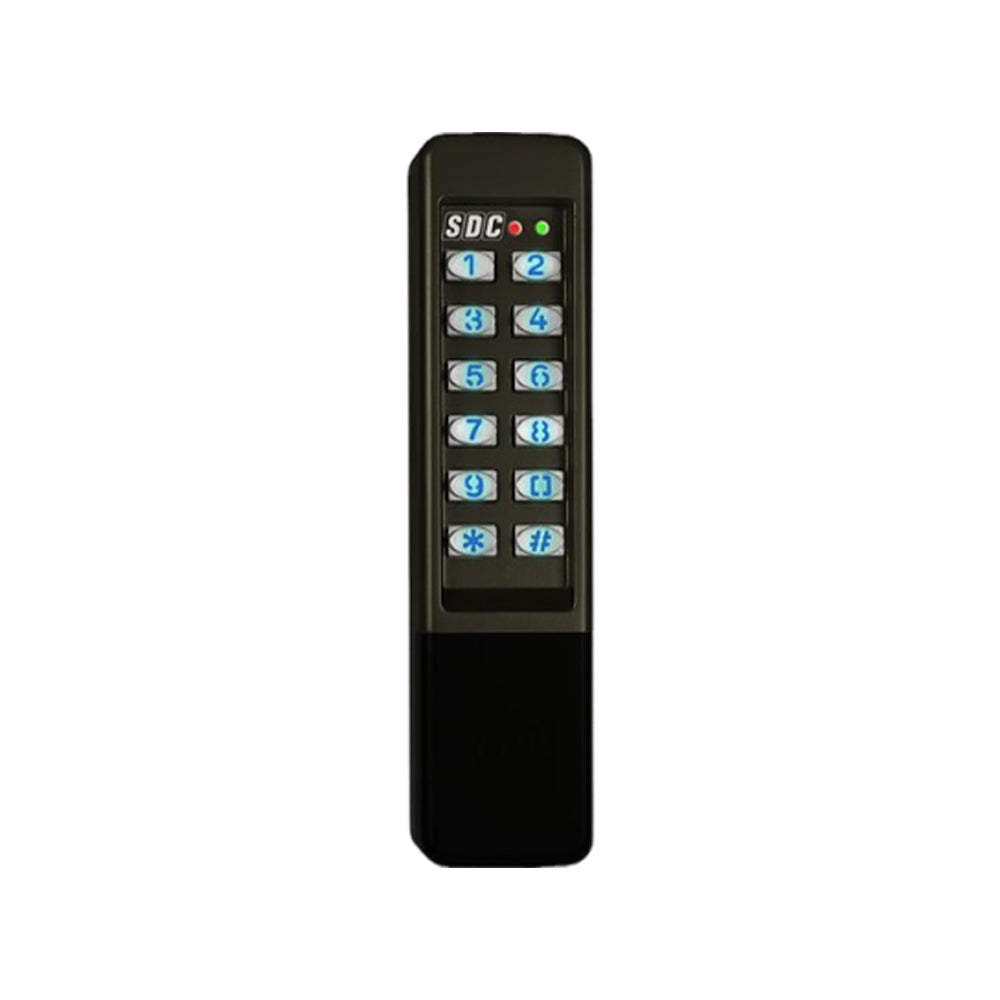

SDC - 923 - Indoor/Outdoor Narrow Self-Contained Digital Keypad with Single Entry Facilities Upto 500 Users - 12/24 VAC/DC

SDC - 923 - Indoor/Outdoor Narrow Self-Contained Digital Keypad with Single Entry Facilities Upto 500 Users - 12/24 VAC/DC

The SDC 923 is a slim indoor/outdoor standalone keypad that manages single-door access for up to 500 users. Each user receives a unique PIN, and entering a valid code triggers one or both output relays to unlock the door.

Features:

• Weather-resistant design for indoor/outdoor use
• Heavy cast, vandal-resistant housing
• Blue backlit metal keys for easy visibility
• Fully programmable keypad
• Supports up to 500 users with 4-6 digit PIN codes
• Four outputs: 2 relay and 2 solid-state (timed or latching)
• Assign entry PINs to Relay 1 and/or 2
• LED status indicators: Access & Lockout
• Tactile keys with adjustable audible feedback
• Timed anti-passback and anti-tailgate functionality
• Keypad tamper lockout protection
• Request-to-exit/enter input
• Selectable door sense or relay inhibit functions
• Forced entry and door ajar detection
• Option to inhibit Relay 1 or 2
• Auto relock when door closes
• 12-key illuminated keypad (2" x 6")
• Surface, mullion, or single-gang mountable
• Built-in tamper switch
• Dual LED status indicators
• Adjustable audible annunciation
• Configurable illumination: On, Off, or Timed

Specifications:

Downloads

• Spec Sheet
• Installation Guide
