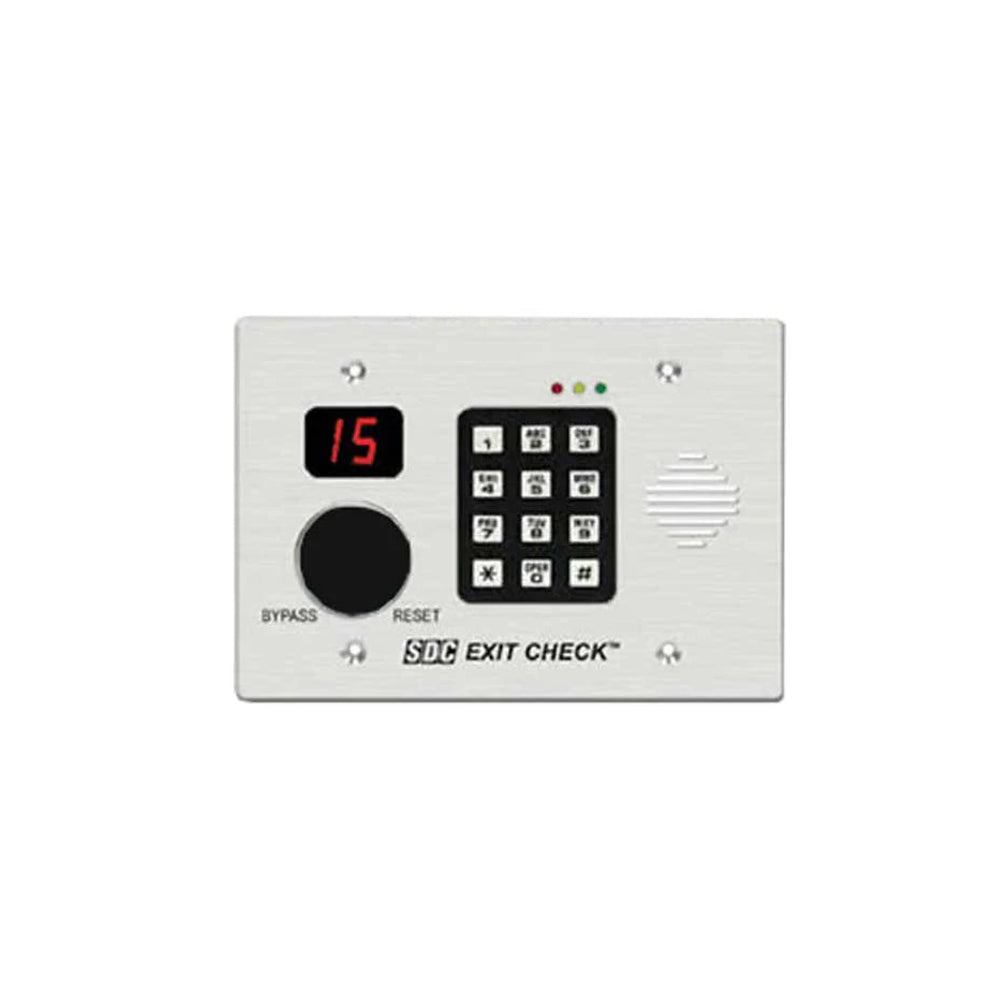

SDC - 101-KDE - Wall Mount Controller with Reset and Bypass Keyswitch

SDC - 101-KDE - Wall Mount Controller with Reset and Bypass Keyswitch

The 101-KDE is a high-performance delayed egress controller designed to enhance security while maintaining life safety compliance. Equipped with a built-in reset and bypass key-switch, this unit allows for authorized override of the delayed egress function when necessary. It provides a 15- or 30-second delay in door unlocking upon unauthorized egress attempts, deterring misuse while allowing safe and timely exit during emergencies. Ideal for use in healthcare, retail, and institutional settings, the 101-KDE integrates seamlessly with access control systems and complies with applicable life safety codes.

Features:

• Integrated reset and bypass key-switch for manual override
• Selectable 15- or 30-second egress delay
• Audible and visual alerts during delay period
• Compatible with most access control systems
• Supports fire alarm and emergency override inputs
• Compliant with NFPA 101 and IBC codes

Specify Modes:

• NA- NFPA 101, Selectable Egress Delay
• ND- NFPA 101, Fixed 15 Second Egress Delay
• NH- NFPA 101, Fixed 30 Second Egress Delay
• NC- CBC Compliant
• BD- BOCA, Fixed 15 Second Egress Delay
• BH- BOCA Fixed 30 Second Egress Delay
• BC- Chicago Compliant

Specifications:

Audible Instructions:

SECURITY MESSAGE (Male Voice)

• Tone...."Exit in twelve seconds, Security has been alerted"
• Tone...."Exit in five seconds"
• Tone...."Exit now", Tone...."Exit now"

SAFETY MESSAGE (Female Voice)

• Tone...."Exit in twelve seconds, Facility Staff has been notified"
• Tone...."Exit in five seconds"
• Tone...."Exit now", Tone...."Exit now"

TONE ONLY (in lieu of voice instruction)

• Activation: Short beeps
• Lock Release: Long beeps

Download:

• Installation Instruction
