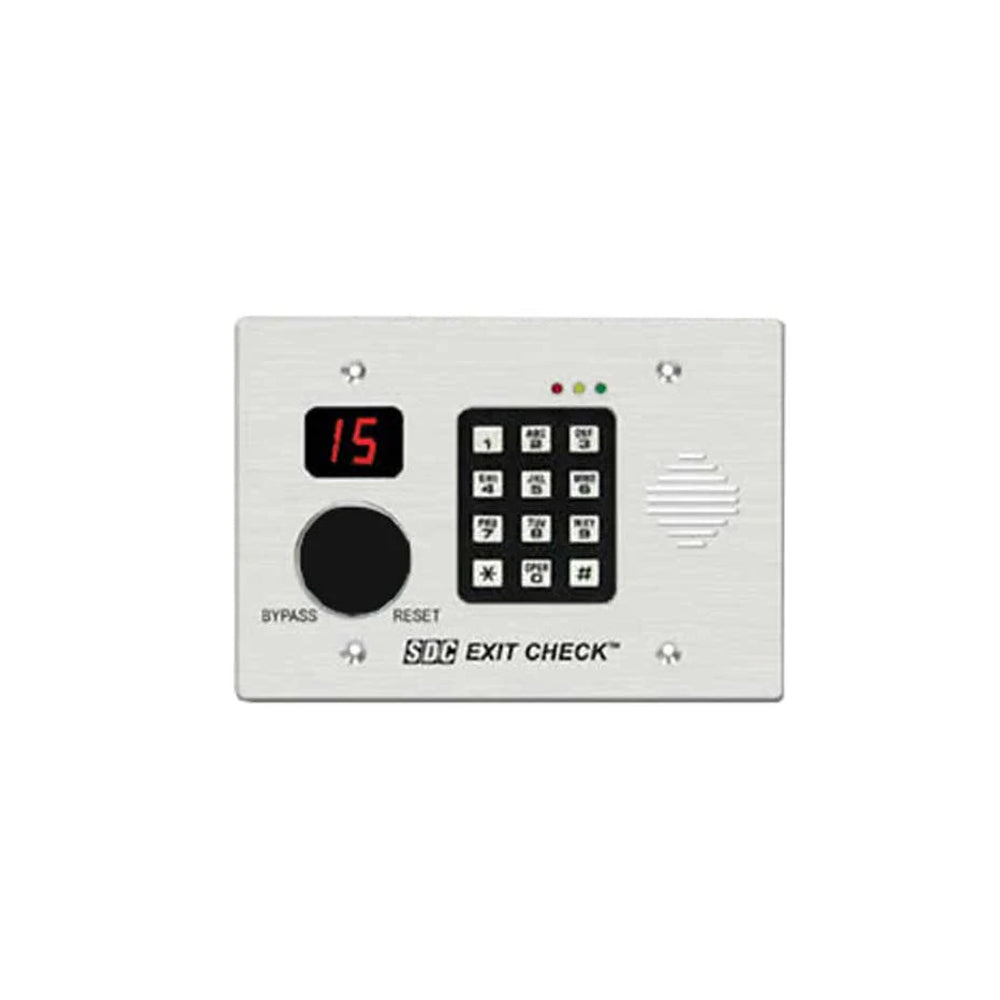

SDC - 101-DE - Wall Mount Controller

SDC - 101-DE - Wall Mount Controller

The 101-DE is a wall-mounted delayed egress controller designed for high-security and code-compliant exit delay applications. Housed in a durable enclosure, this unit provides a 15- or 30-second delay before unlocking an exit door after an unauthorized egress attempt. The controller features inputs for fire alarm and emergency override, as well as connections for audible and visual alert devices. The 101-DE is ideal for use in facilities requiring delayed egress solutions such as hospitals, retail stores, and educational institutions.

Features:

• Wall-mounted enclosure for secure and accessible installation.
• Programmable 15- or 30-second egress delay.
• Interfaces with fire alarm systems and remote reset.
• Supports visual and audible alarm outputs.
• Compliant with NFPA 101, IBC, and other life safety standards
• Designed for integration with electronic locking systems and access control.

Specify Modes:

• NA- NFPA 101, Selectable Egress Delay
• ND- NFPA 101, Fixed 15 Second Egress Delay
• NH- NFPA 101, Fixed 30 Second Egress Delay
• NC- CBC Compliant
• BD- BOCA, Fixed 15 Second Egress Delay
• BH- BOCA Fixed 30 Second Egress Delay
• BC- Chicago Compliant

Specifications:

Audible Instructions:

SECURITY MESSAGE (Male Voice)

• Tone...."Exit in twelve seconds, Security has been alerted"
• Tone...."Exit in five seconds"
• Tone...."Exit now", Tone...."Exit now"

SAFETY MESSAGE (Female Voice)

• Tone...."Exit in twelve seconds, Facility Staff has been notified"
• Tone...."Exit in five seconds"
• Tone...."Exit now", Tone...."Exit now"

TONE ONLY (in lieu of voice instruction)

• Activation: Short beeps
• Lock Release: Long beeps

Download:

• Installation Instruction
