Schlage

Schlage - ND75 - Classroom Security Lock with Cylindrical Keyed Lever - Grade 1

Schlage - ND75 - Classroom Security Lock with Cylindrical Keyed Lever - Grade 1

$577.93 USD
$577.93 USD
Sale Sold out
Color
Cylinder
Lever Style

Schlage - ND75 - Classroom Security Lock with Cylindrical Keyed Lever - Grade 1

The Schlage ND Series offers a full breadth of commercial lock options with a suited combination of mechanical, electrified and electronic options. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications.

Features:
  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • Nine lever designs, two rose designs also available
  • 10 available finishes
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available - open, patented, restricted, geographic exclusive, UL437
  • Support for 10 non-Schlage cores
Product Specifications:
Manufacturer Schlage
Grade Grade 1
BAA Qualified Yes
Installation Commercial
Fire Rating 3 Hours {A}
ADA Compliance Yes
UL Listing UL/cUL Listed
ANSI ANSI A156.2 Series 4000, Grade 1
Technical Specifications:
Handing Non-handed
Std. Strike Number 10-025
# Pins 6
Std. Latch Type Deadlatch
Screws Wood/Machine Screws
Function Family Classroom
Bolt Projection 1/2 In.
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Std. Strike Type ANSI Strike
Std. Latch Backset Dim 2-3/4 In.
Std. Latch Number 13-247
Rose Design 3-7/16" Rose Diameter
Rose Dimensions 3-7/16"
Door Thickness 1-5/8 In. to 2-1/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Latch Bore Diameter 1 In.
Bore Hole Diameter 2-1/8 In.
Function 75-Classroom Security Lock
Keying None

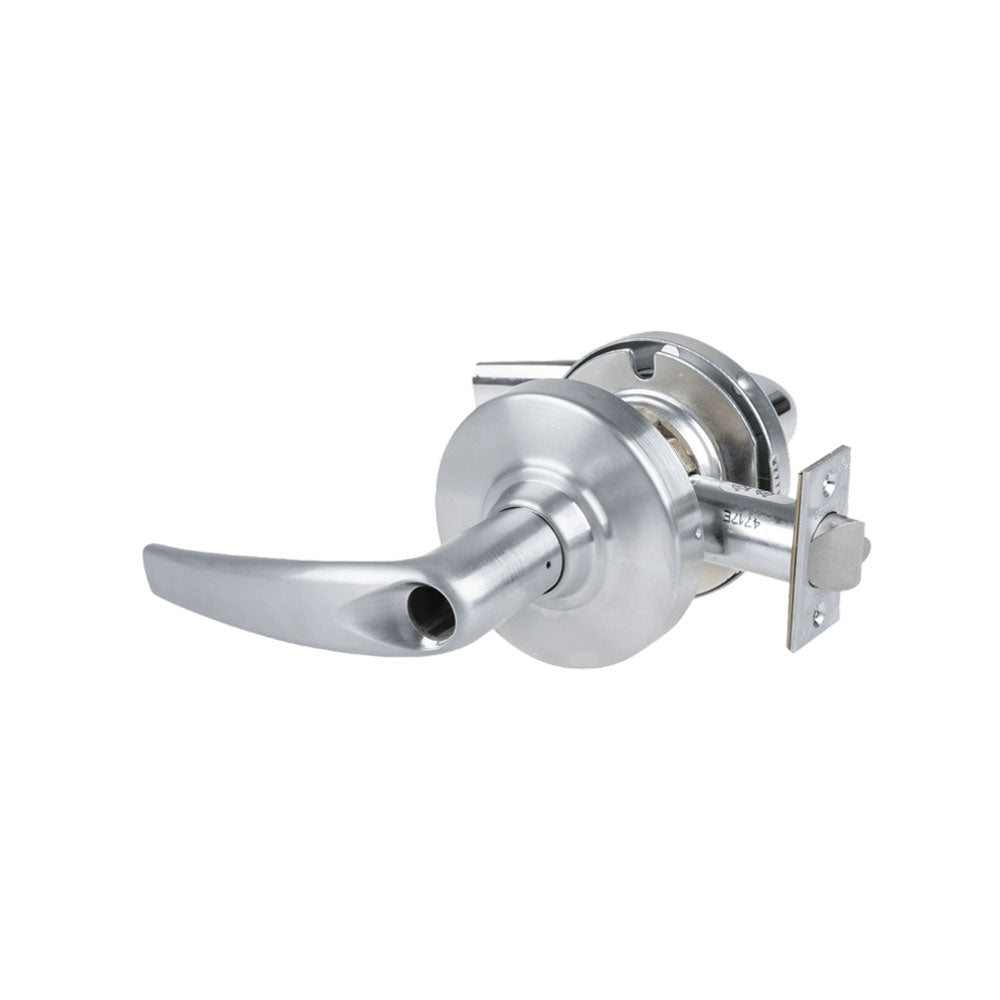

Cylinder Type LD - Less Cylinder
BD - SFIC Prep Less Core

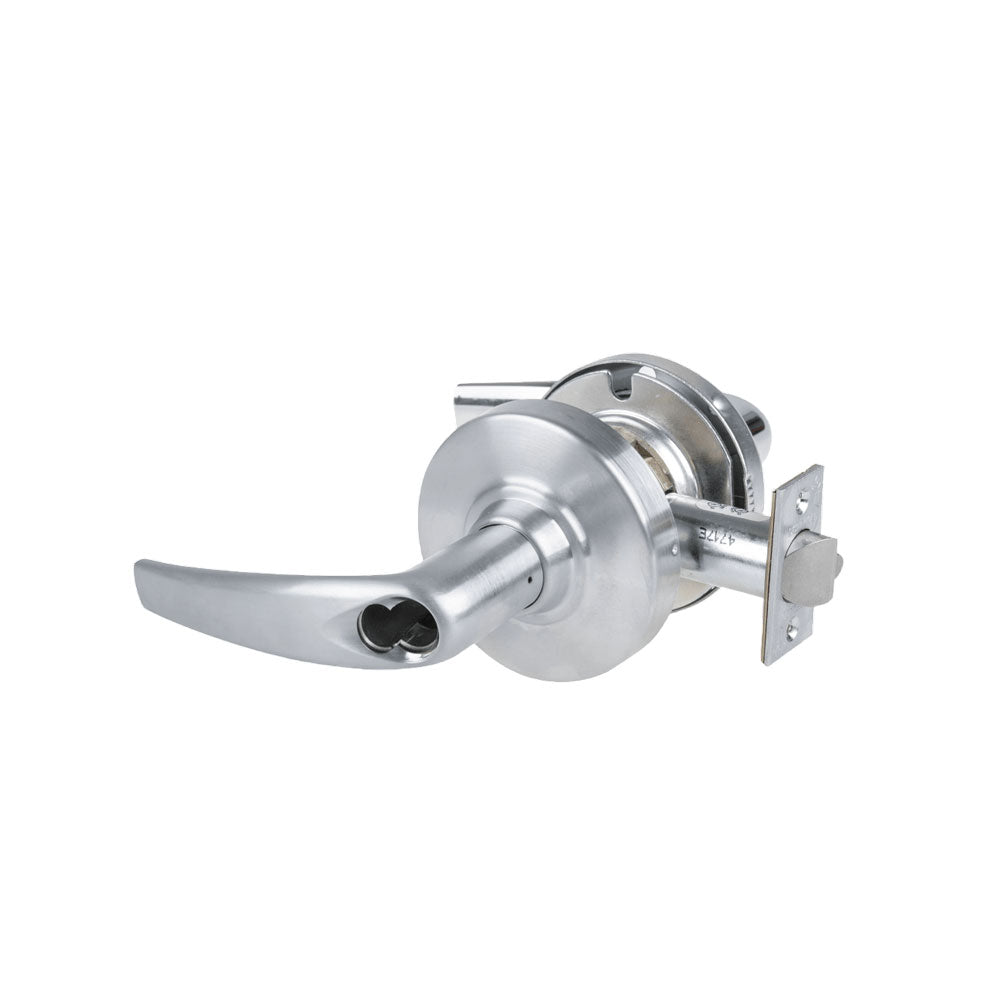

JD - Schlage FSIC Prep Less Core
