Schlage

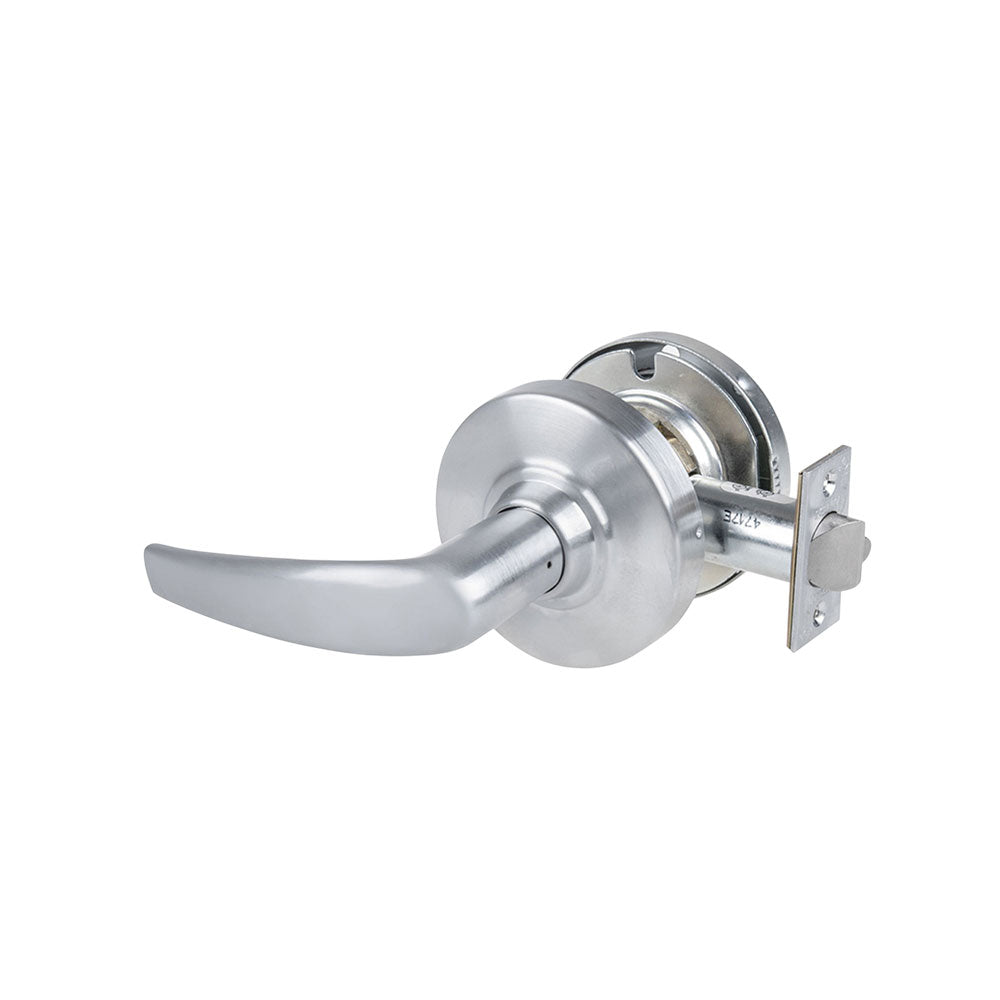

Schlage - ND25D - Exit Lockset with Non-Keyed Lever - Grade 1
Schlage - ND25D - Exit Lockset with Non-Keyed Lever - Grade 1
Regular price
$416.42 USD
Regular price
$522.66 USD
Sale price
$416.42 USD
Unit price
per
Couldn't load pickup availability
Schlage - ND25D - Exit Lockset with Non-Keyed Lever - Grade 1
The Schlage ND Series offers a full breadth of commercial lock options with a suited combination of mechanical, electrified and electronic options. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications.
Features:
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Nine lever designs, two rose designs also available
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available - open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
Product Specifications:
| Manufacturer | Schlage |
| Grade | Grade 1 |
| BAA Qualified | Yes |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| ADA Compliance | Yes |
| UL Listing | UL/cUL Listed |
| ANSI | ANSI A156.2 Series 4000, Grade 1 |
Technical Specifications:
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Bolt Projection | 1/2" |
| Std. Strike Number | 10-025 |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Std. Latch Type | Deadlatch |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Screws | Wood/Machine Screws |
| Std. Latch Backset Dim | 2-3/4" |
| Std. Strike Type | ANSI Strike |
| Function Family | Exit |
| Std. Latch Number | 13-247 |
| Rose Design | 3-7/16" Rose Diameter |
| Rose Dimensions | 3-7/16" |
| Latch Bore Diameter | 1 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Door Thickness | 1-5/8" to 2-1/8" |
| Function | 25-Exit Lock |
