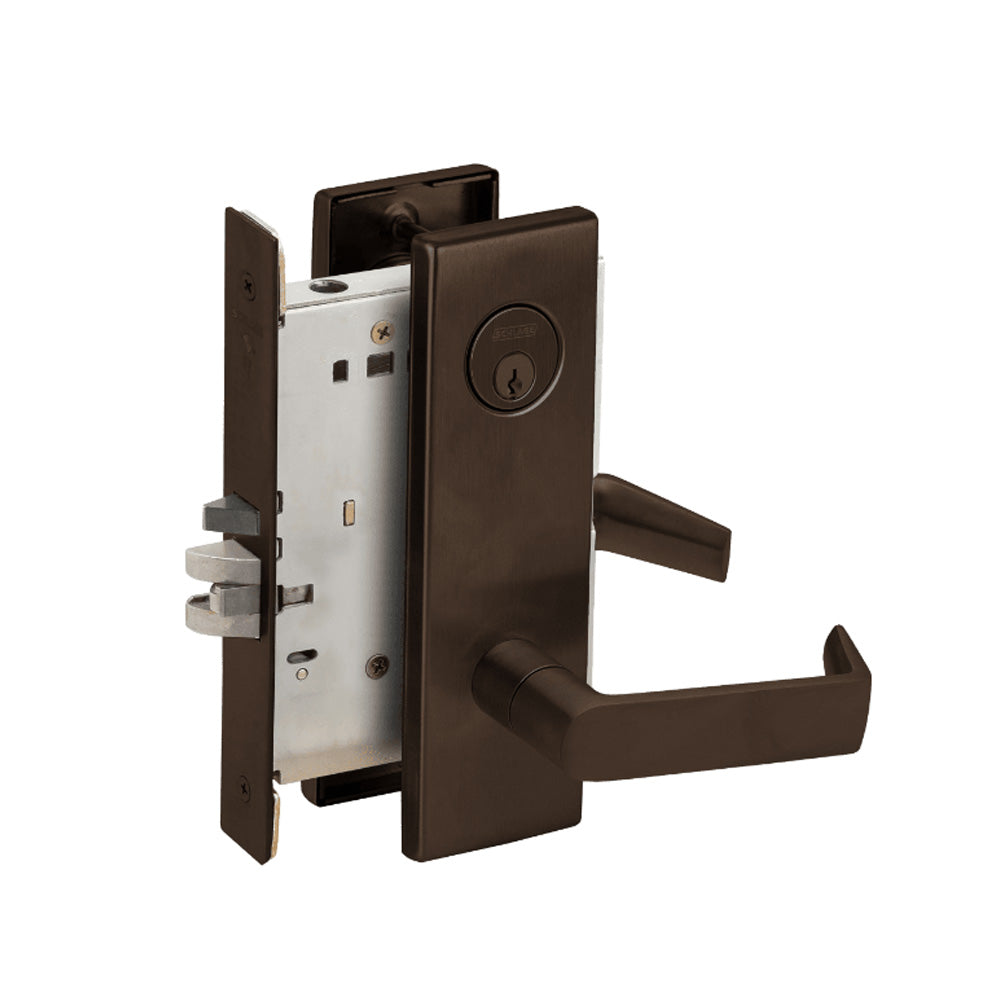

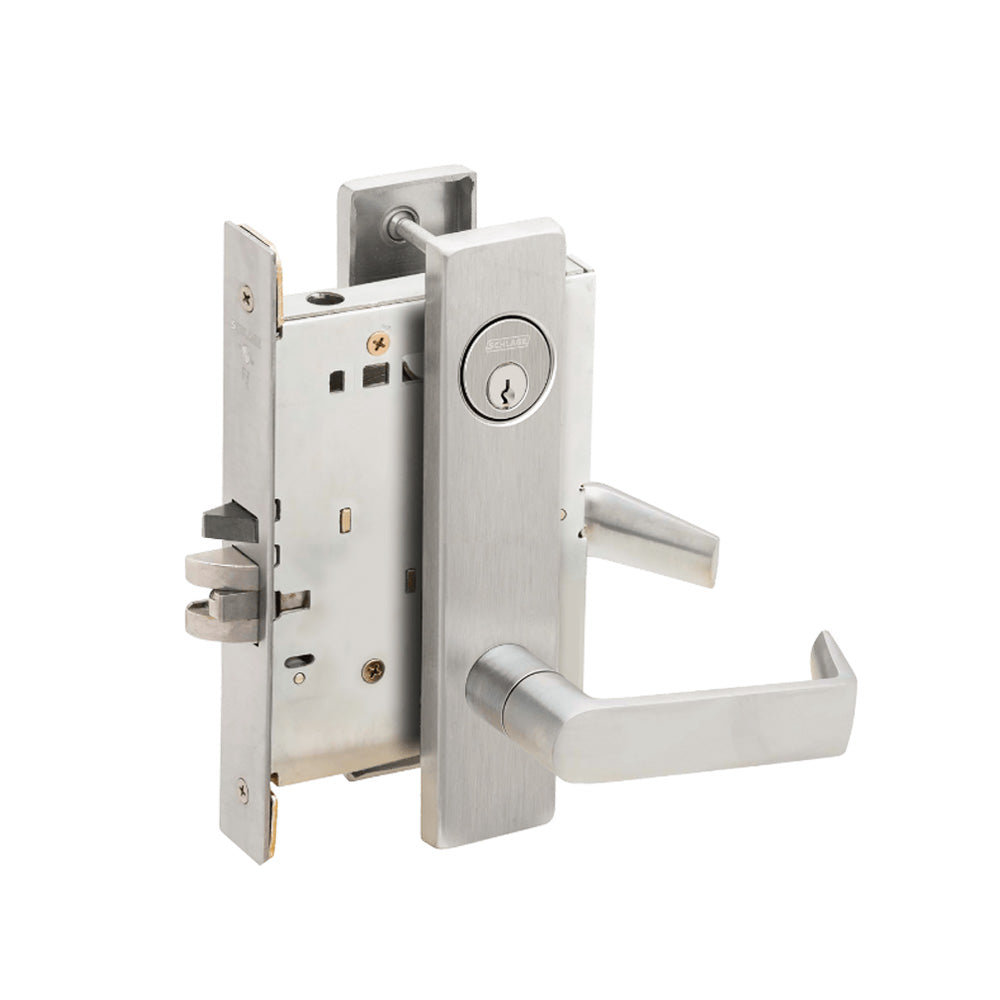

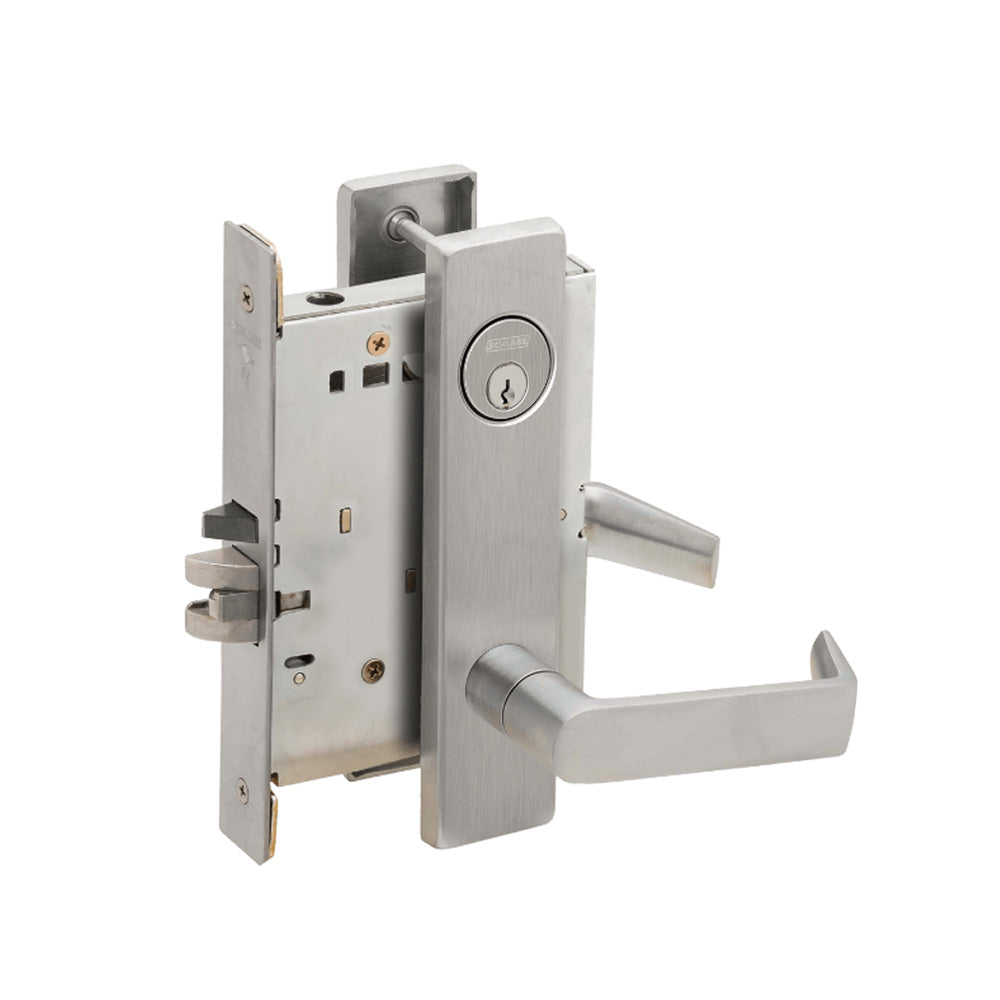

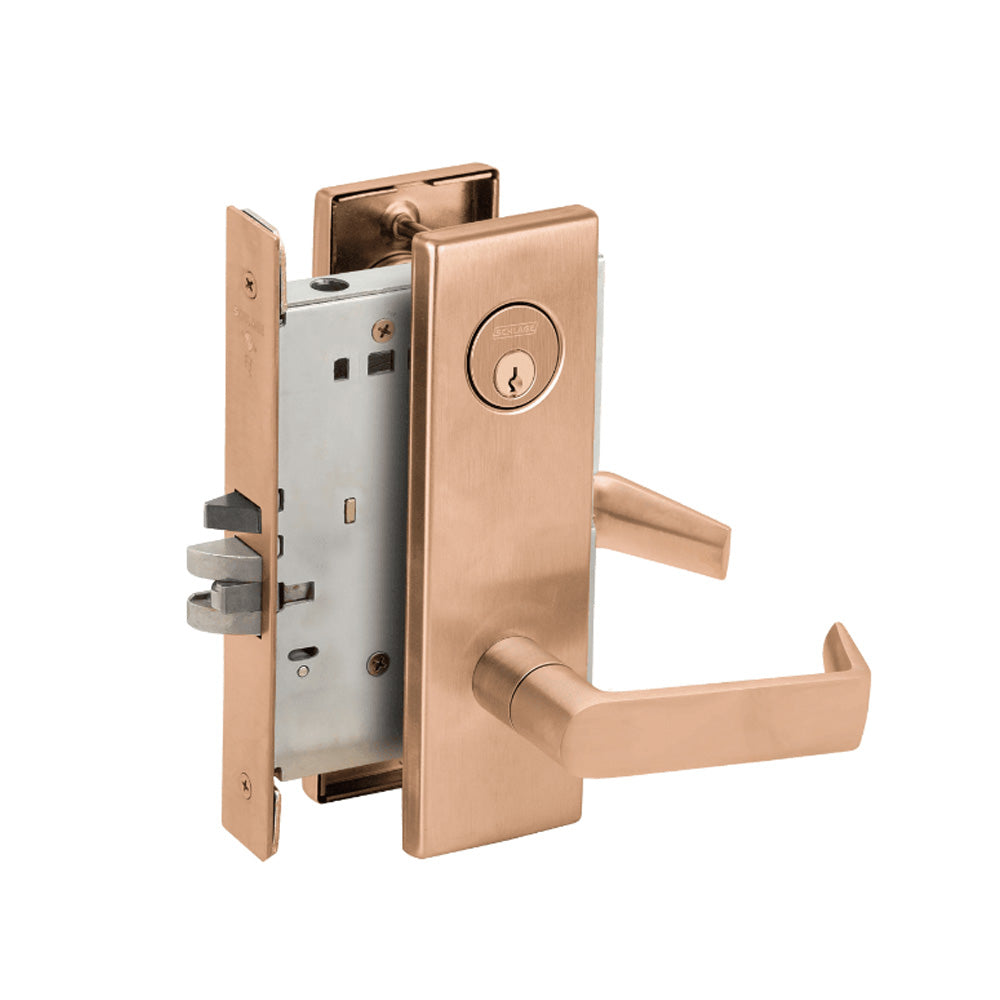

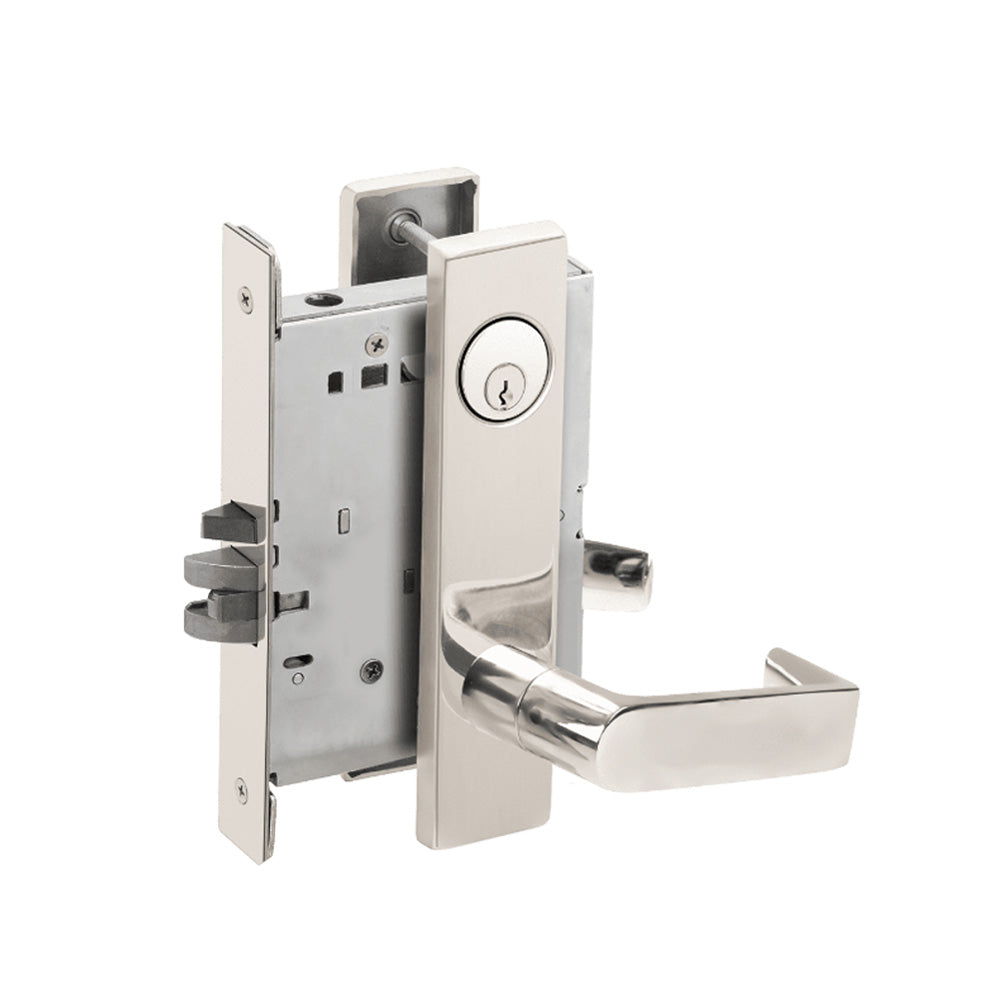

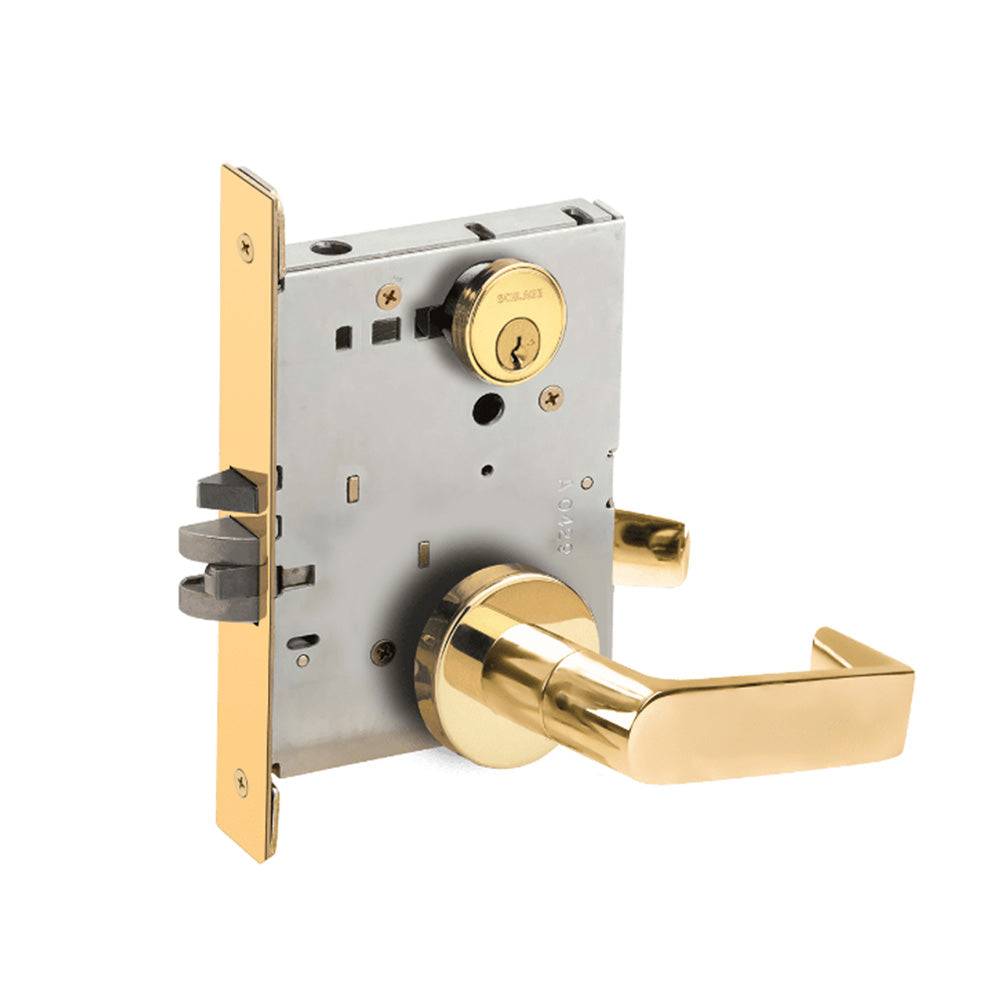

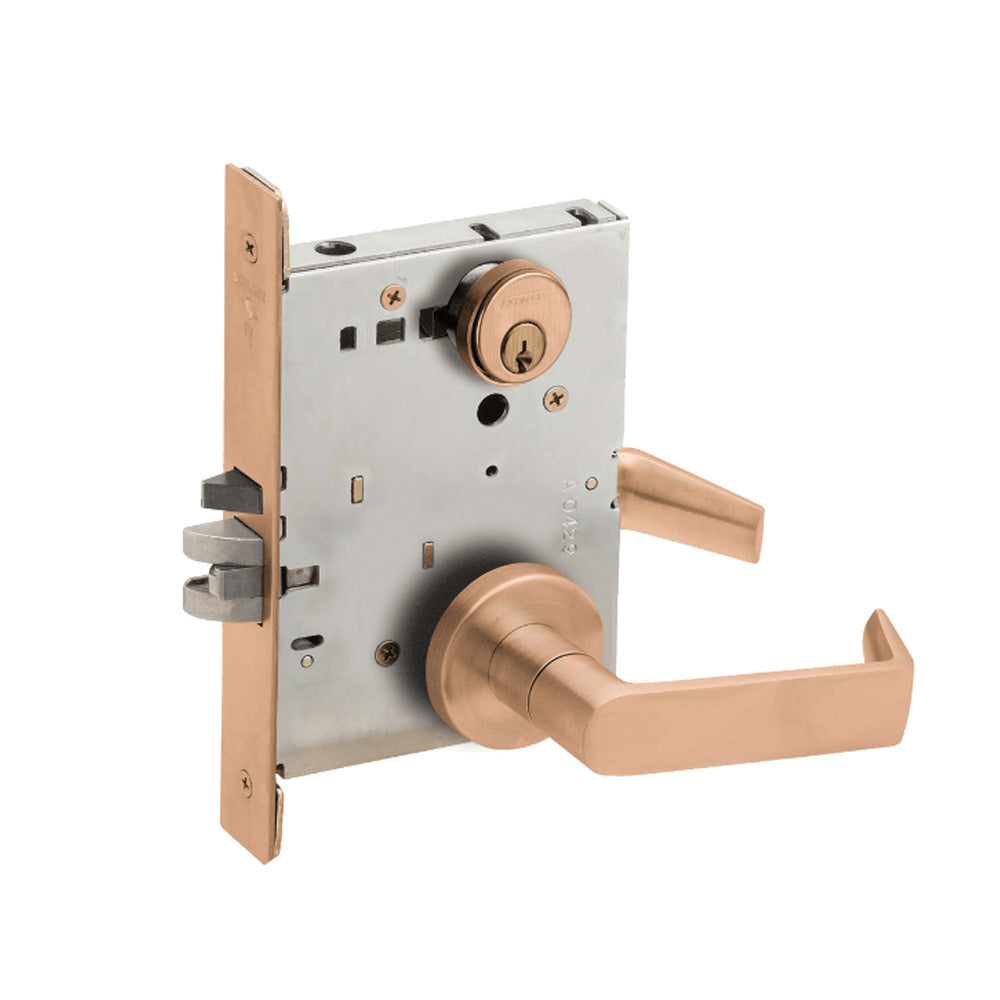

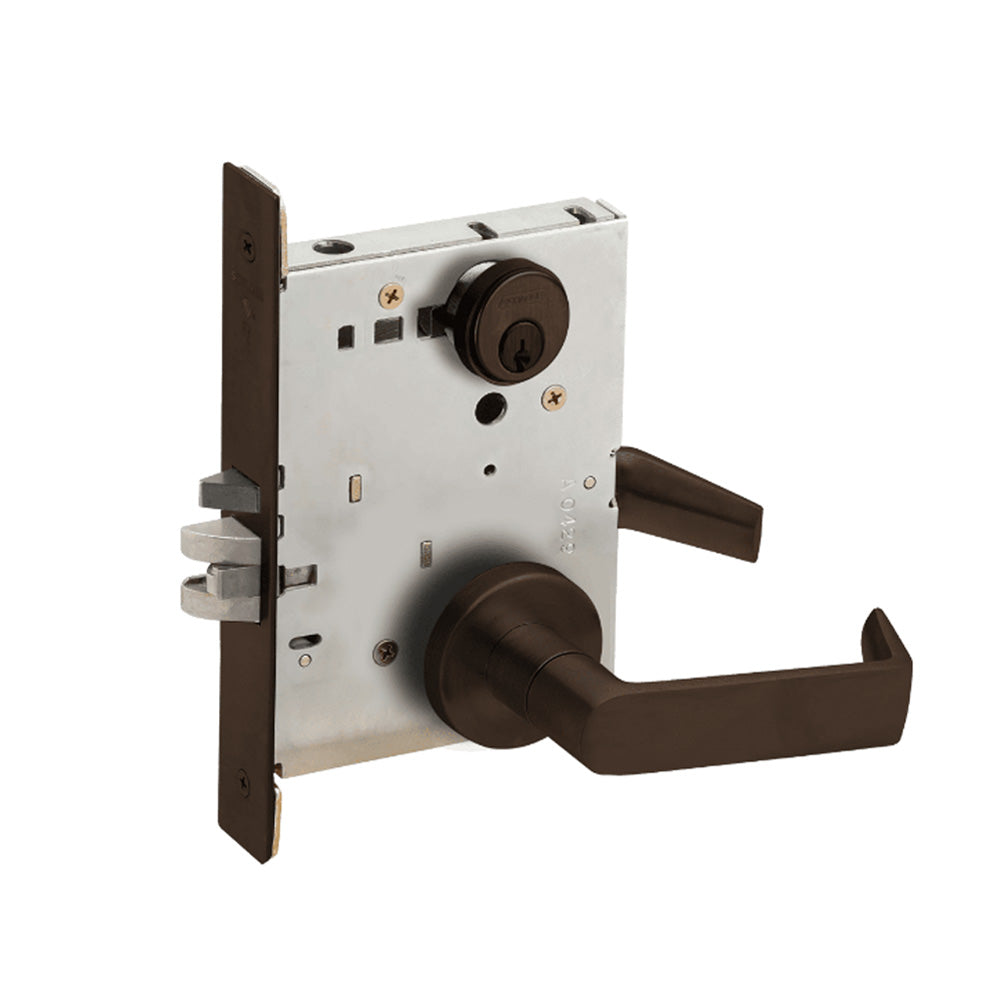

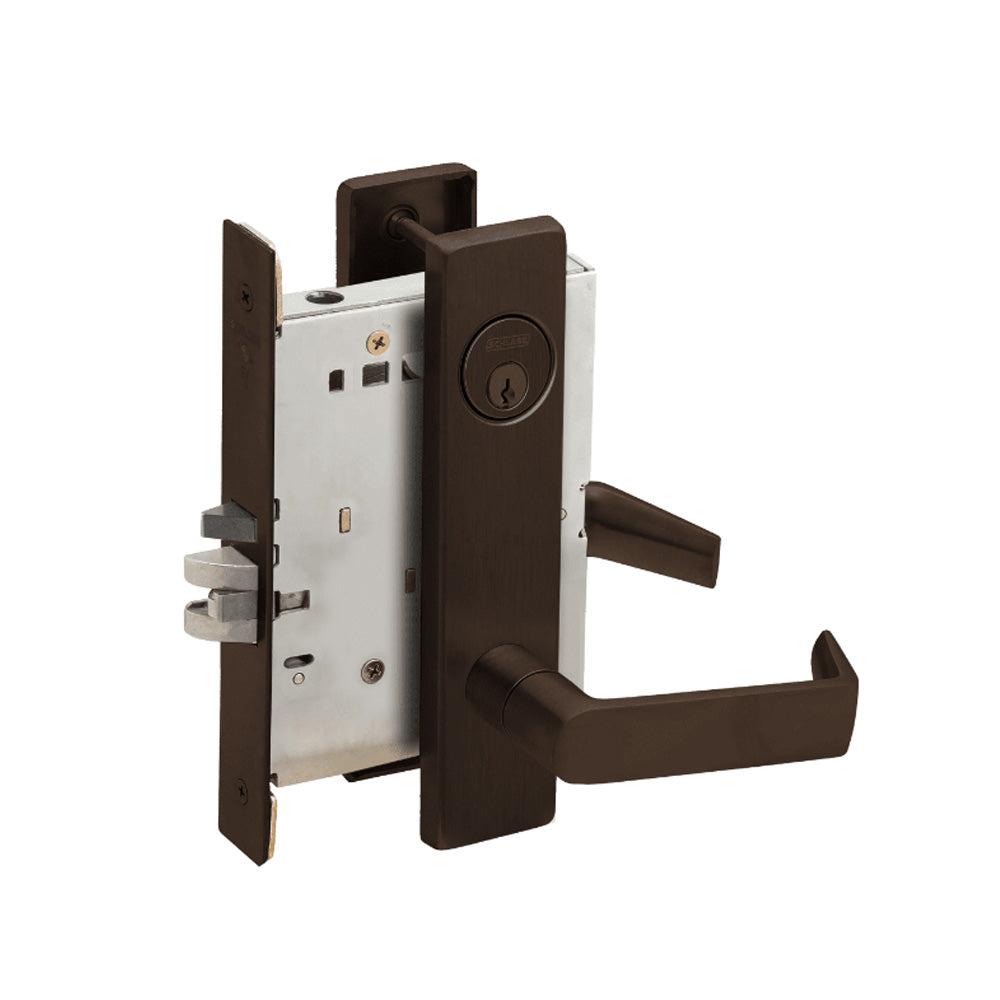

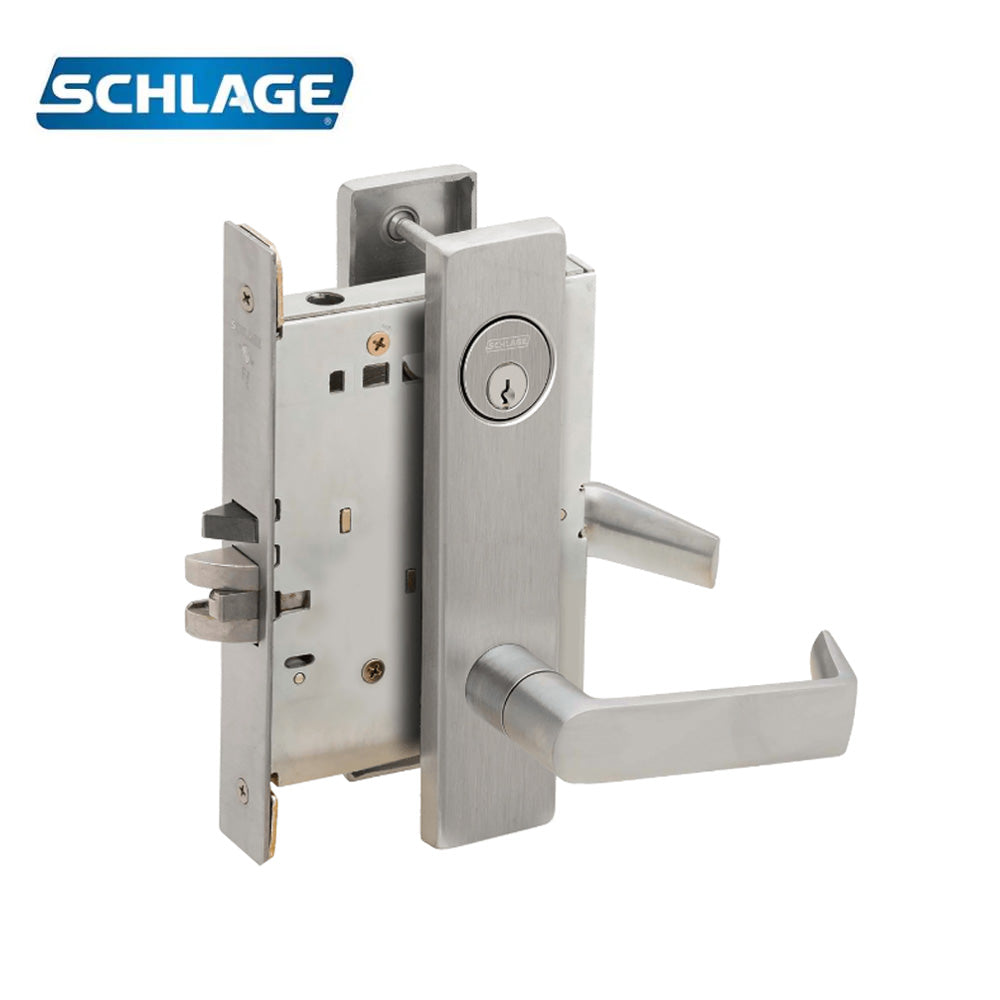

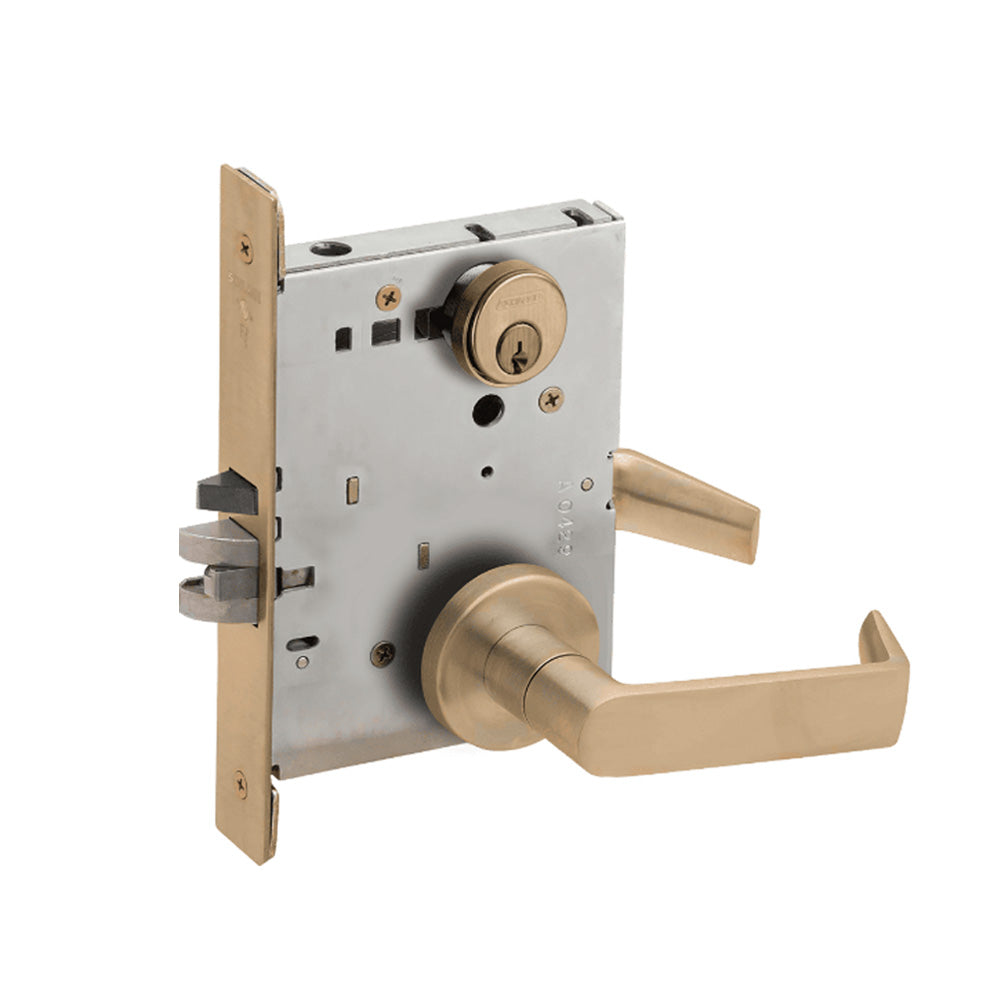

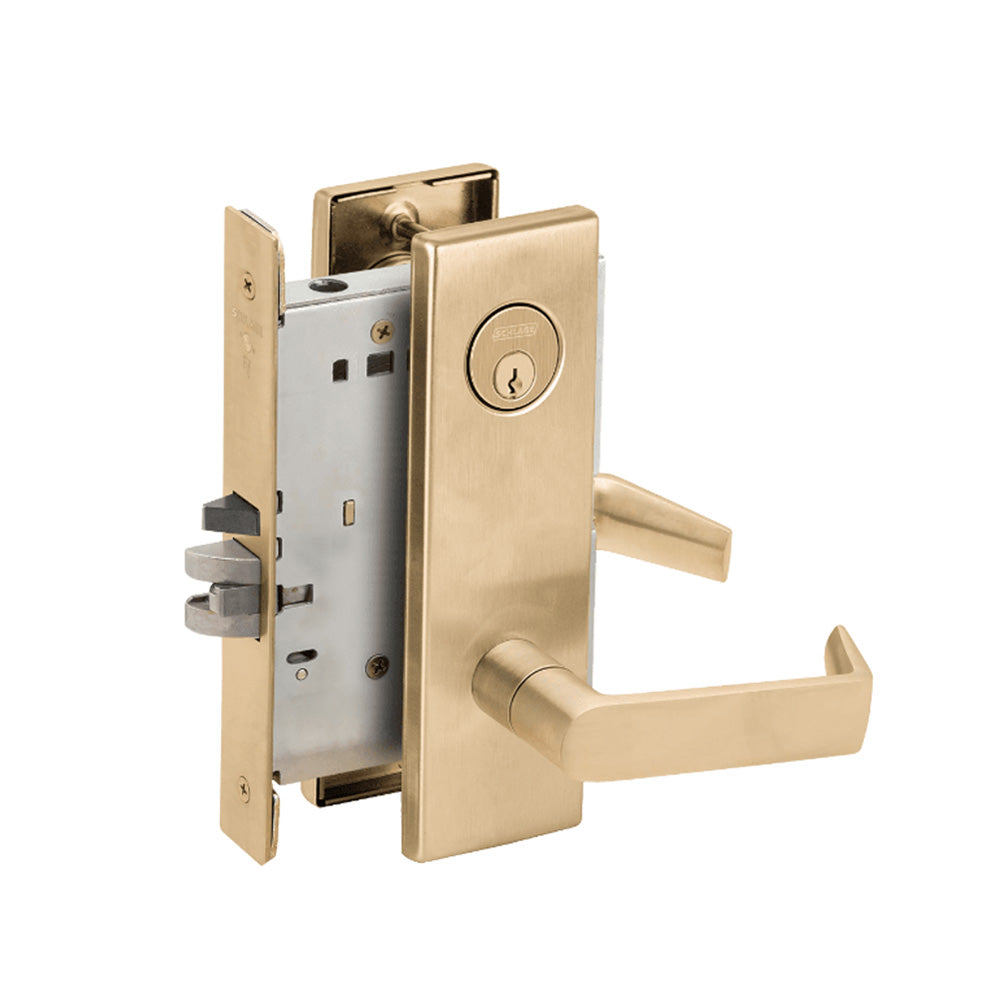

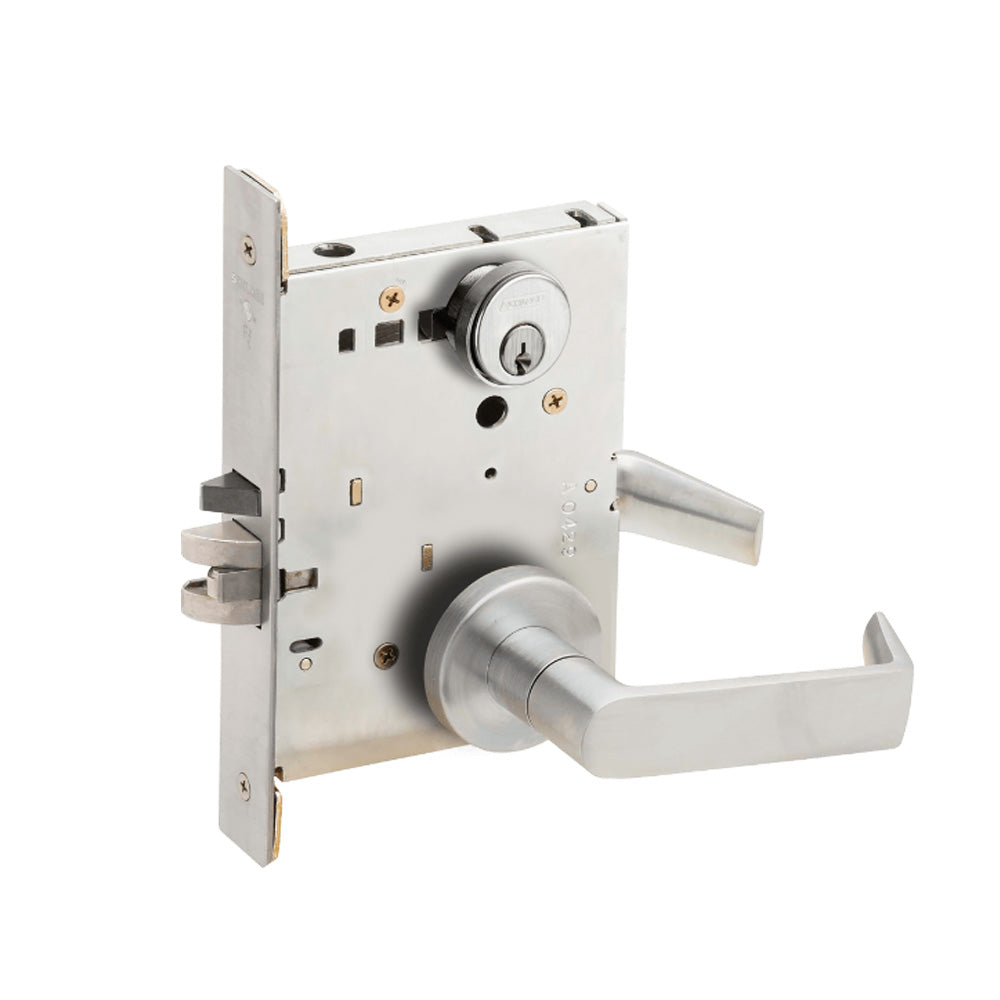

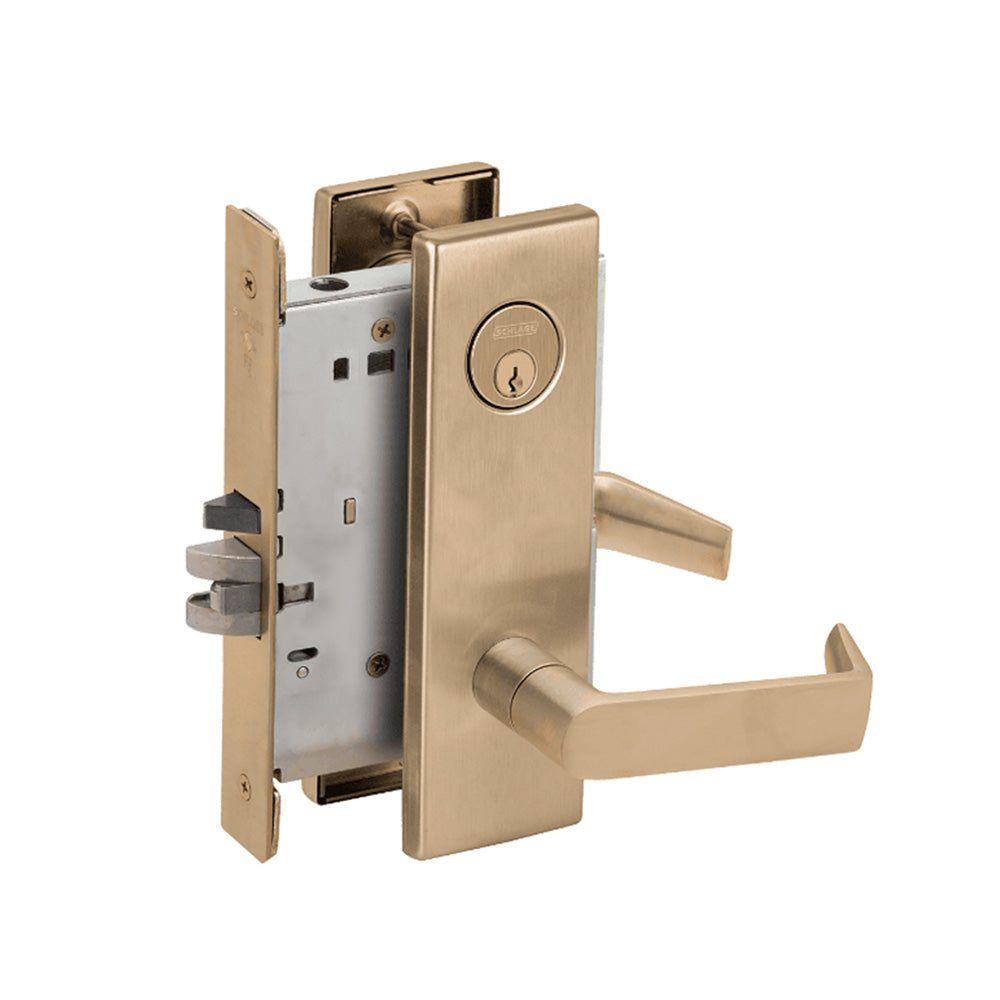

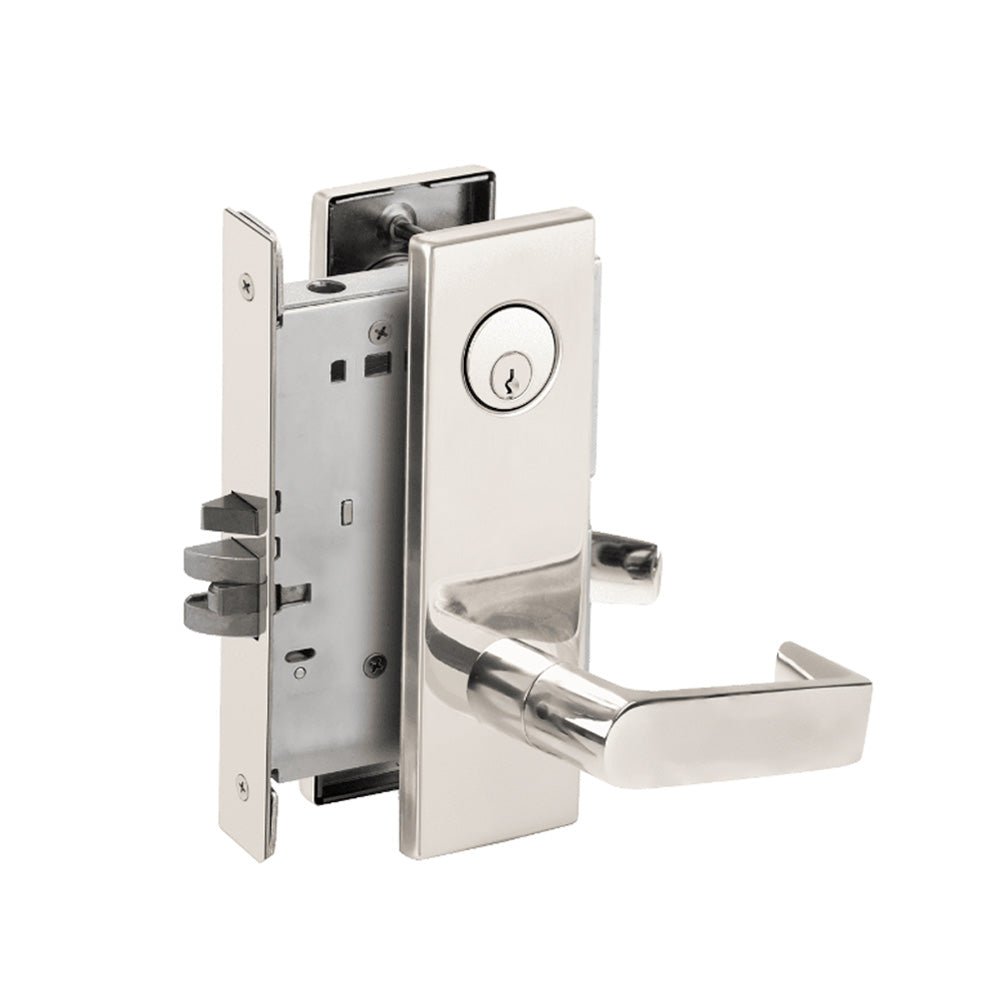

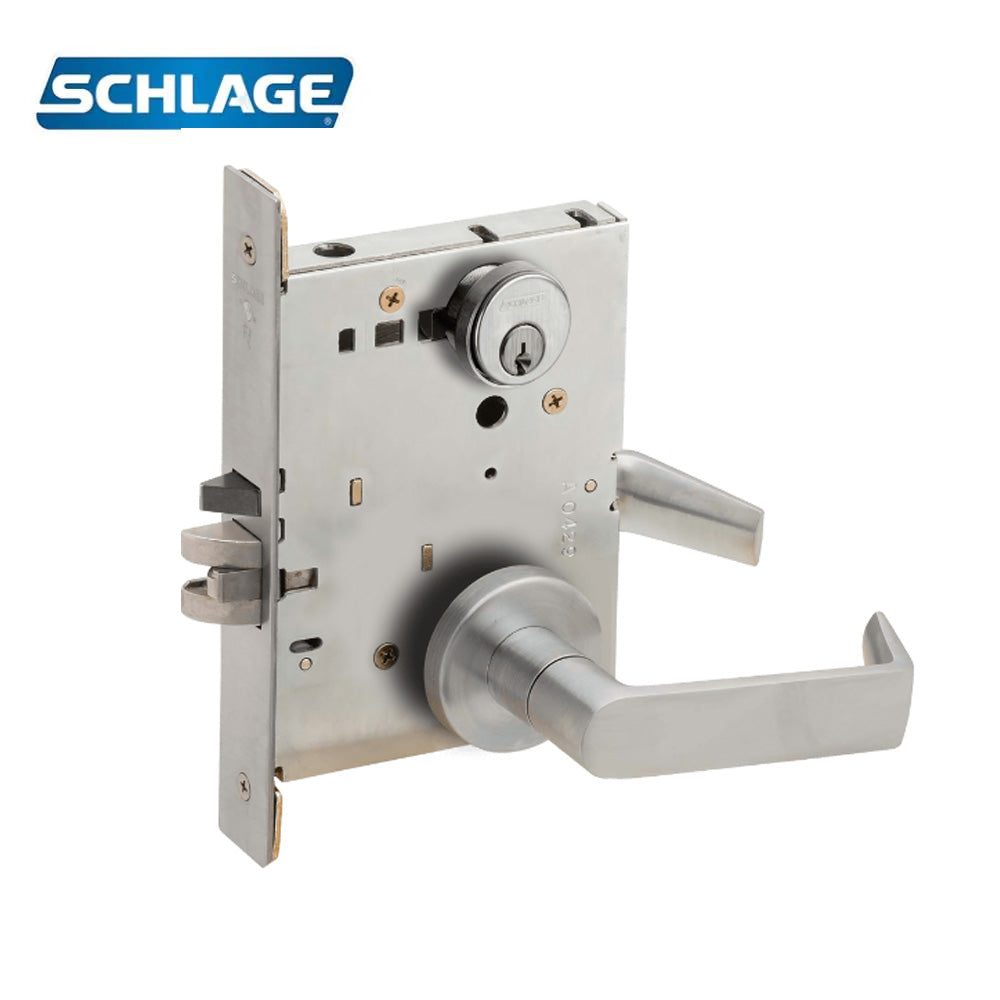

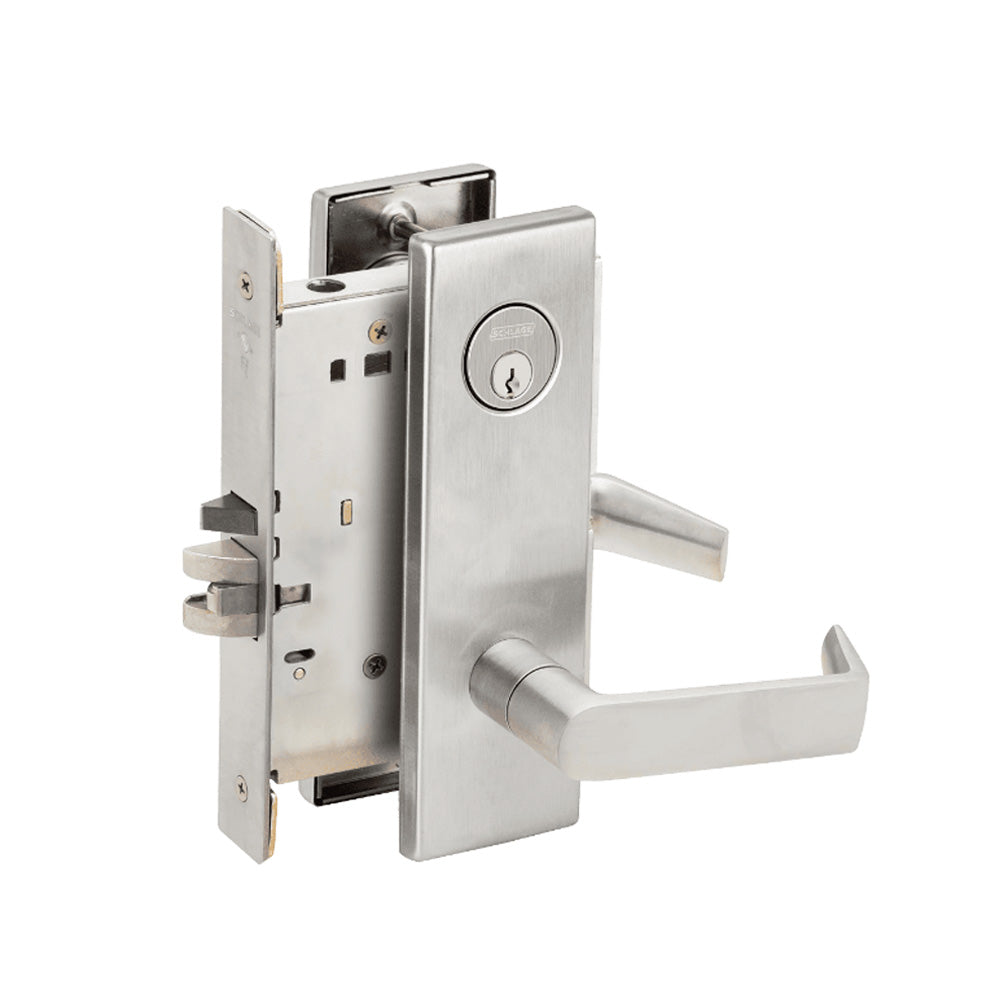

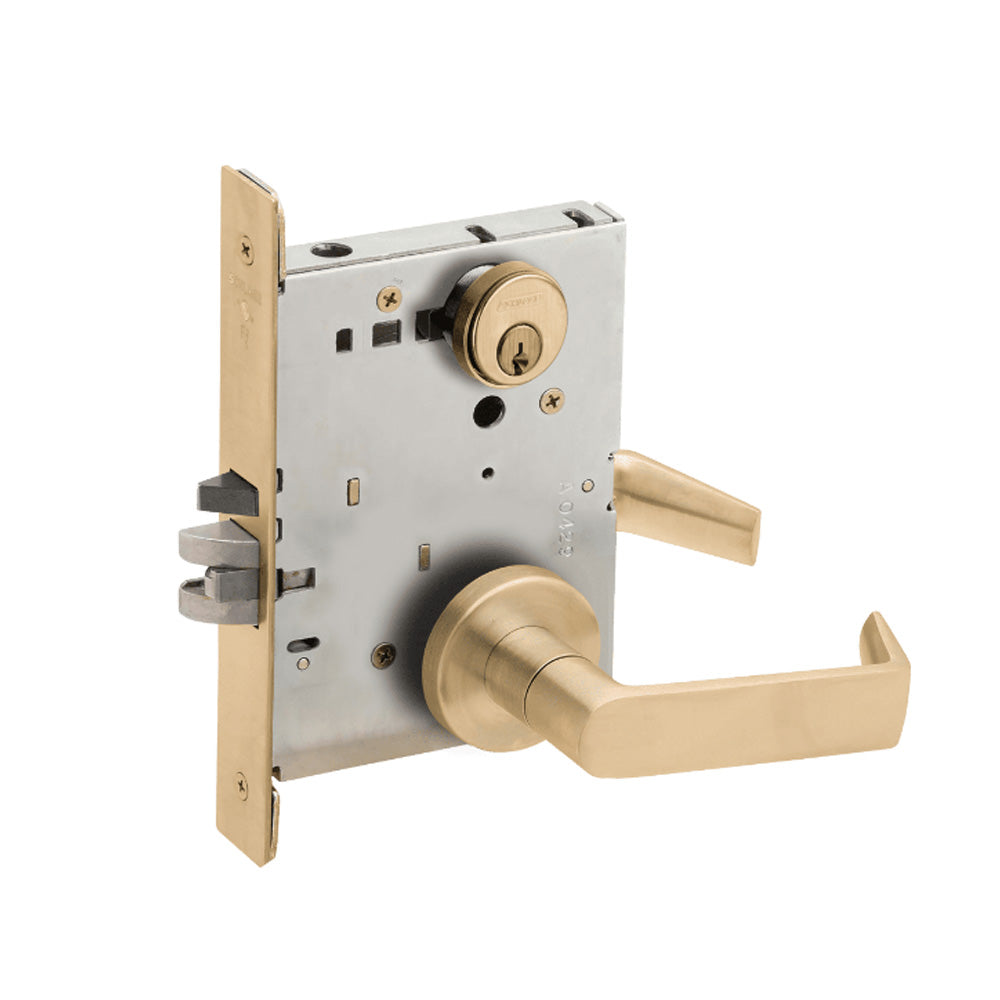

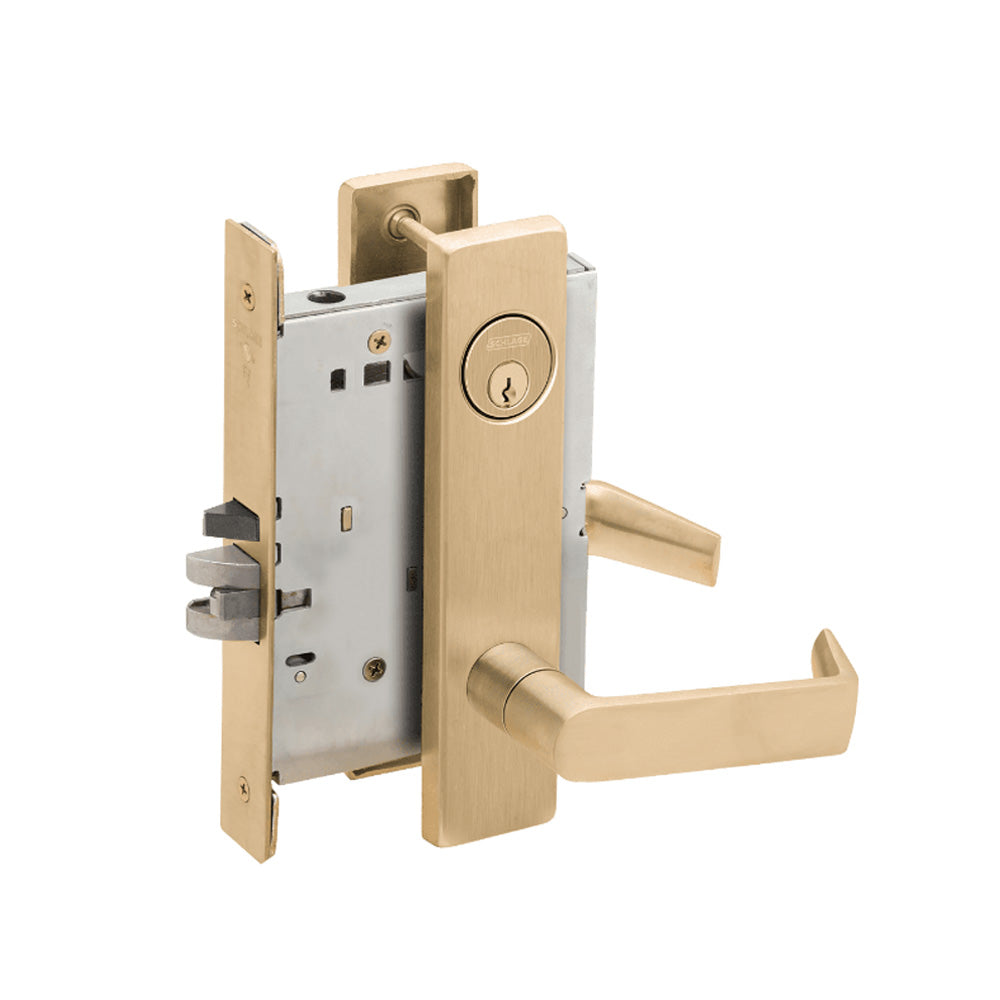

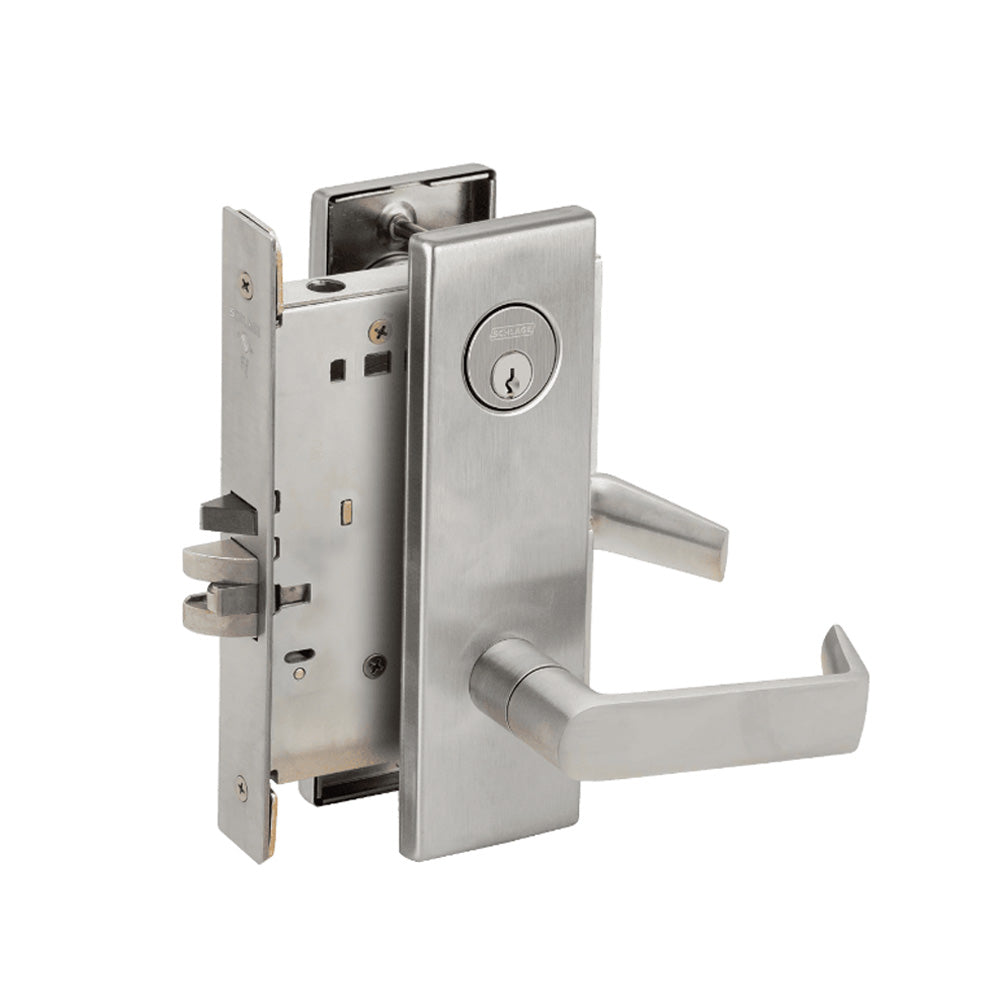

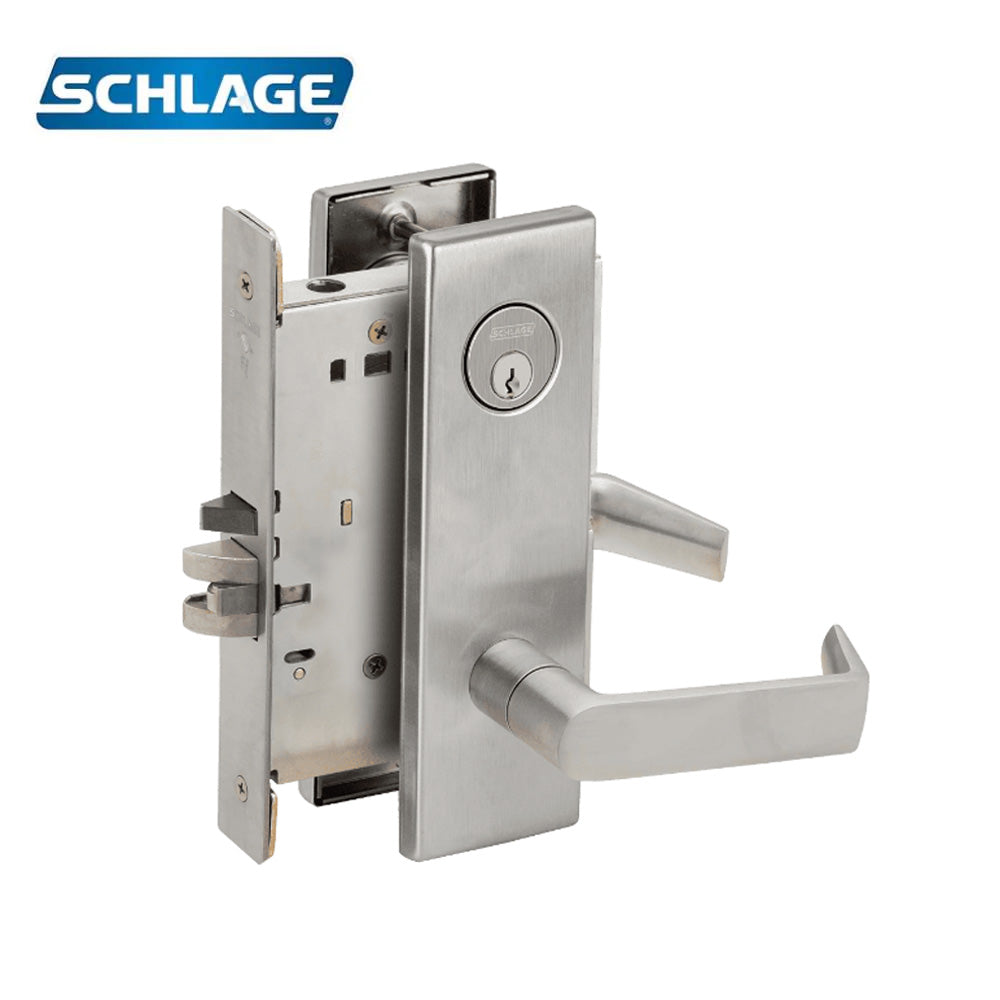

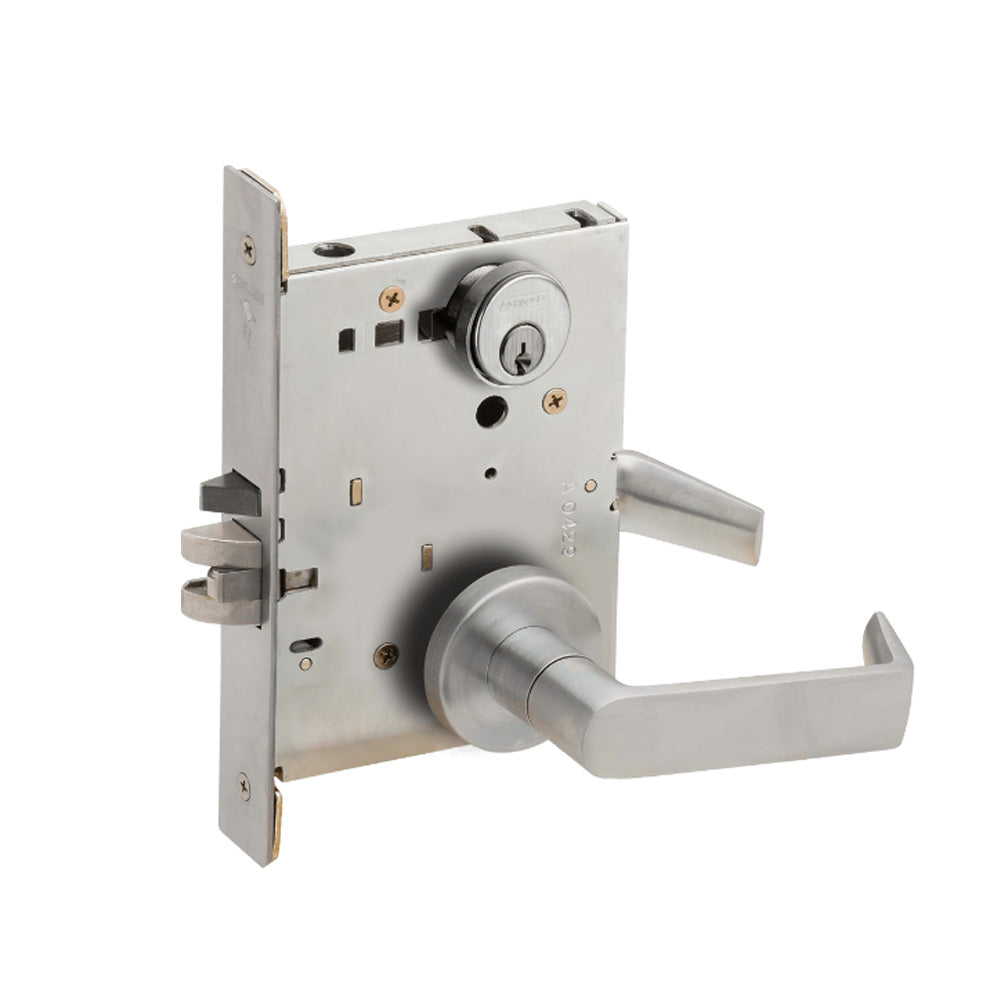

Schlage - L9080 - Storeroom Mortise Lock with Conventional Cylinder 6-pin and 06 Lever - Grade 1

Schlage - L9080 - Storeroom Mortise Lock with Conventional Cylinder 6-pin and 06 Lever - Grade 1

Regular price $709.88 USD
Regular price $851.86 USD Sale price $709.88 USD
Sale Sold out
Color
Keying
Rose/Escutcheon

Schlage - L9080 - Storeroom Mortise Lock with Conventional Cylinder 6-pin and 06 Lever - Grade 1

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security ��� it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Factory Default Attributes:
  • Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
  • Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational.
  • Case Size: 4-7/16" x 6-1/16" x 1";
  • Armor Front: 1-1/4" x 8";
  • Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
  • Backset: 2-3/4";
  • Door Thickness: 1-3/4".
L9080 - Storeroom Non-Deadbolt Function Lock:
  • Latchbolt retracted by lever/knob inside or key outside;
  • Outside lever/knob is always inoperable;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress;

Features and Benefits:

Security
  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards.
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through.
  • Security blocking hub prevents lock picking by removing levers.
Function availability and compatibility
  • 55+ standard functions (custom functions are also available).
  • Universal lock case allows 10 functions to be created from a single lock body.
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency.
Options
  • Exclusive 180�� visibility indicator.
  • Vandlgard�� free-wheeling outside trim option is available on most functions, including electrified.
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications.
Certifications
  • Meets BAA (Buy American Act).
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational.
  • UL listed for 3-hour fire door (except L9076 and L9077).
  • With interchangeable core cylinders: Grade 2 security.
  • With concealed shell cylinder: A156.13 Grade 1 operational and security.
  • ANSI/ASTM F476-76 Grade 40, UL listed.
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1.
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply.
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing.
  • Electrified functions are UL19X listed for single-point locking applications.
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder.
  • Miami-Dade NOA's and Florida Building Commission Listings.
  • Meet ADA requirements.
Product Specifications:
Vendor Allegion
Manufacturer Schlage
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL Listed
ANSI Number A156.13-2017 Series 1000
Series L Series
Function Description Latchbolt retracted by key outside or by knob/ lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is always free for immediate egress.
Function 9080-Storeroom
Function Family Storeroom
ANSI Function F07 - Storeroom/Exit
Lever/Knob Design 06 Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Dimensions 2-1/8"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Cylinder Length 1-1/8"
Cam Type Schlage L
Cam Number L583-254
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-3/16"
Dust Box Plastic
Screws Combination
Product Type Mortise Lock
